63-Standard COB led strip

Model COB led strips 480led/m 11W/m Warm white

(TB08-COB480W)

Inquiry Now

Feature:

1. Completely seamless light, no led dot and hot spots.

2. Innovative design on circuit board for rough bending.

3. High efficiency of 100lm/W.

4. CRI>90, Natural color reproduction of illuminated objects.

5. Slight Voltage drop, High brightness consistency.

6. Extensive illumination thanks to a large beam angle of 180°.

7. 5 Years warranty.

Technical Parameters:

Part No. Color Color
Temperature/
Wave length
Voltage Power Lumen/m CRI Viewing
Angle
LED QTY(/m) LED Type PCB width
 TB08-COB480W white 6500k 12/24 VDC 11W/m 1100lm >90 180° 480 led COB LED 8mm
TB08-COB480WW WW 2700-3000k 12/24 VDC 11W/m 1020lm >90 180° 480 led COB LED 8mm
TB08-COB480NW NW 4000k 12/24 VDC 11W/m 1100lm >90 180° 480 led COB LED 8mm
TB08-COB480WW WW 2400-2600k 12/24 VDC 11W/m 1020lm >90 180° 480 led COB LED 8mm
TB08-COB480R Red 625nm 12/24 VDC 11W/m   >90 180° 480 led COB LED 8mm
TB08-COB480G Green 535nm 12/24 VDC 11W/m   >90 180° 480 led COB LED 8mm
TB08-COB480P Pink 615nm 12/24 VDC 11W/m   >90 180° 480 led COB LED 8mm
TB08-COB480B Blue 460nm 12/24 VDC 11W/m   >90 180° 480 led COB LED 8mm
TB08-COB480IB Ice Blue 484nm 12/24 VDC 11W/m   >90 180° 480 led COB LED 8mm
TB08-COB480Y Yellow 2000-2200k 12/24 VDC 11W/m 1020lm >90 180° 480 led COB LED 8mm
TB08-COB480O Orange 1500-1700k 12/24 VDC 11W/m 1020lm >90 180° 480 led COB LED 8mm

Cutting length 50mm 24LEDs working temperature -25~+60°C
IP Rate IP33/IP67/IP68 Max Run 24V: 5 meters (one end)
Installation Adhesive 3M tape Dimmable Yes
Cerfication CE and RoHS complicant Warranty 5 Years

Dimension(mm) :

Dimension

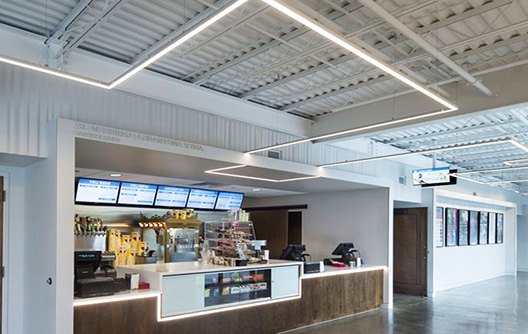

Application:

1. High quality residential lighting.

2. Cabinet lighting.
