63-Standard COB led strip

Model COB led strips 528led/m 14W/m uniform light 10mm

(P/N:TB10-COB528W)

Inquiry Now

Feature:

1. Completely seamless light, no led dot and hot spots.

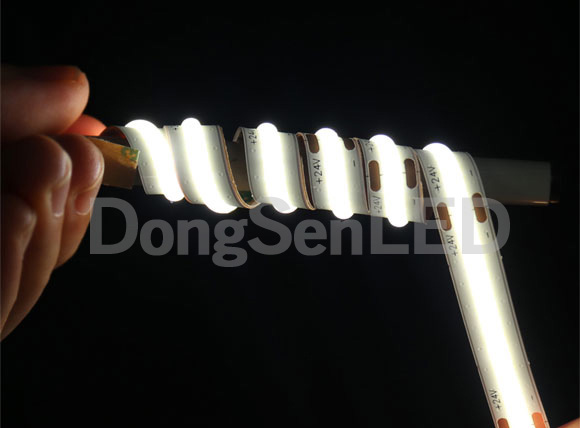

2. Innovative design on circuit board for rough bending.

3. High efficiency of 100lm/W.

4. CRI>90, Natural color reproduction of illuminated objects.

5. Luminosity up to 1400 lm/m.

6. 5 Years warranty.

Technical Parameters:

Part No. Color Color
Temperature/
Wave length
Voltage Power Lumen/m CRI Viewing
Angle
LED QTY(/m) LED Type PCB width
TB10-COB528W white 6500k 12/24 VDC 14W/m 1400lm >90 180° 528 led COB LED 10mm
TB10-COB528WW WW 2700-3000k 12/24 VDC 14W/m 1300lm >90 180° 528 led COB LED 10mm
TB10-COB528NW NW 4000k 12/24 VDC 14W/m 1400lm >90 180° 528 led COB LED 10mm
TB10-COB528WW WW 2400-2600k 12/24 VDC 14W/m 1300lm >90 180° 528 led COB LED 10mm
TB10-COB528R Red 625nm 12/24 VDC 14W/m   >90 180° 528 led COB LED 10mm
TB10-COB528G Green 535nm 12/24 VDC 14W/m   >90 180° 528 led COB LED 10mm
TB10-COB528P Pink 615nm 12/24 VDC 14W/m   >90 180° 528 led COB LED 10mm
TB10-COB528B Blue 460nm 12/24 VDC 14W/m   >90 180° 528 led COB LED 10mm
TB10-COB528IB Ice Blue 484nm 12/24 VDC 14W/m   >90 180° 528 led COB LED 10mm
TB10-COB528Y Yellow 2000-2200k 12/24 VDC 14W/m 1300lm >90 180° 528 led COB LED 10mm
TB10-COB528O Orange 1500-1700k 12/24 VDC 14W/m 1300lm >90 180° 528 led COB LED 10mm

Cutting length 45mm 24LEDs working temperature -25~+60°C
IP Rate IP33/IP67/IP68 Max Run 24V: 5 meters (one end)
Installation Adhesive 3M tape Dimmable Yes
Cerfication CE and RoHS complicant Warranty 5 Years

Dimension(mm) :

Dimension

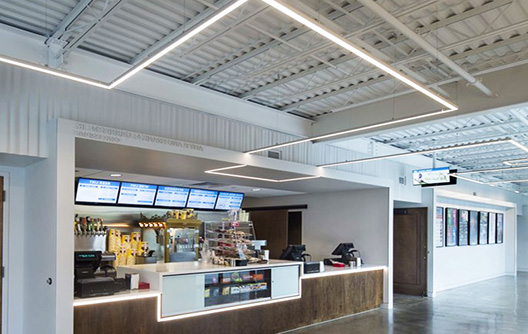

Application:

1. LED linear lighting.

2. Cabinet lighting.
