Home > Products > COB LED Strip > Multi-Color COB LED Strip > RGB COB Flexible led strips 768led/m 10mm 24V
58-Multi-Color COB LED Strip

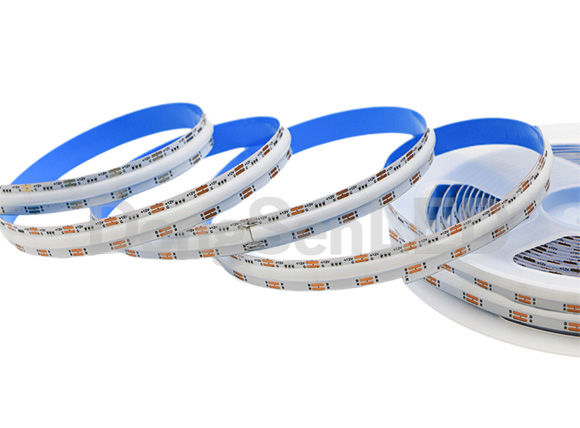

Model RGB COB Flexible led strips 768led/m 10mm 24V
(TB10-COB768RGB)
Inquiry NowFeature:
1. Completely seamless light, no light points visible, 768 led/m.
2. RGB Color.
3. High efficiency of 100lm/W.
4. CRI>90, Natural color reproduction of illuminated objects.
5. 5 Years warranty.
Technical Parameters:
| Part No. | Color |
Color Temperature/ Wave length |
Voltage | Power | Lumen/m | CRI | Viewing Angle | LED QTY(/m) | LED Type | PCB width | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TB10-COB768RGB | RGB |
R: 625nm G: 635nm B: 460nm |
24 VDC | Max 14W/m | >90 | 180° | 768 led | COB LED | 10mm | |||||||
| Cutting length | 31.22mm 24LEDs | working temperature | -25~+60°C |
|---|---|---|---|
| IP Rate | IP33/IP67/IP68 | Max Run | 24V: 5 meters (one end) |
| Installation | Adhesive 3M tape | Dimmable | Yes |
| Cerfication | CE and RoHS complicant | Warranty | 5 Years |
Dimension(mm) :

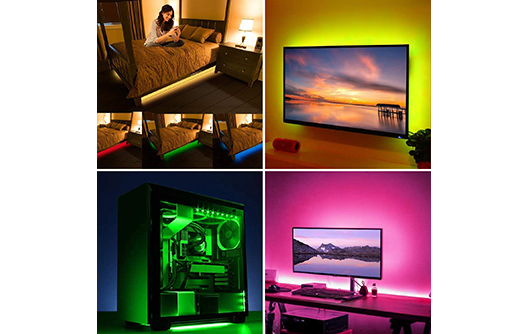

Application:
1. LED linear lighting.
2. Cabinet lighting.
