55-Standard COB led strip

Model COB led strips 320led/m 8W/m

(P/N:TB08-COB320W)

1. Completely seamless light, no led dot and hot spots.

2. Innovative design on circuit board for rough bending.

3. High efficiency of 100lm/W.

4. CRI>90, Natural color reproduction of illuminated objects.

5. Slight Voltage drop, High brightness consistency.

5. Extensive illumination thanks to a large beam angle of 180°.

5. 5 Years warranty.

Part No.	Color	Color Temperature/ Wave length	Voltage	Power	Lumen/m	CRI	Viewing Angle	LED QTY(/m)	LED Type	PCB width
TB08-COB320W	white	6500k	12/24 VDC	8W/m	800lm	>90	180°	320 led	COB LED	8mm
TB08-COB320WW	WW	2700-3000k	12/24 VDC	8W/m	750lm	>90	180°	320 led	COB LED	8mm
TB08-COB320NW	NW	4000k	12/24 VDC	8W/m	800lm	>90	180°	320 led	COB LED	8mm
TB08-COB320WW	WW	2400-2600k	12/24 VDC	8W/m	750lm	>90	180°	320 led	COB LED	8mm
TB08-COB320R	Red	625nm	12/24 VDC	8W/m		>90	180°	320 led	COB LED	8mm
TB08-COB320G	Green	535nm	12/24 VDC	8W/m		>90	180°	320 led	COB LED	8mm
TB08-COB320P	Pink	615nm	12/24 VDC	8W/m		>90	180°	320 led	COB LED	8mm
TB08-COB320B	Blue	460nm	12/24 VDC	8W/m		>90	180°	320 led	COB LED	8mm
TB08-COB320IB	Ice Blue	484nm	12/24 VDC	8W/m		>90	180°	320 led	COB LED	8mm
TB08-COB320Y	Yellow	2000-2200k	12/24 VDC	8W/m	680lm	>90	180°	320 led	COB LED	8mm
TB08-COB320O	Orange	1500-1700k	12/24 VDC	8W/m	680lm	>90	180°	320 led	COB LED	8mm

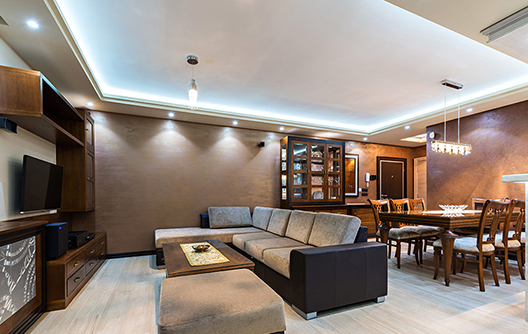

1. High quality residential lighting.

2. Cabinet lighting.
