Home > Products > LED Module > Prism lens LED Module 170° > High Power 4 LED Module 2.0W white 240lm 170 °
50-Prism lens LED Module 170°

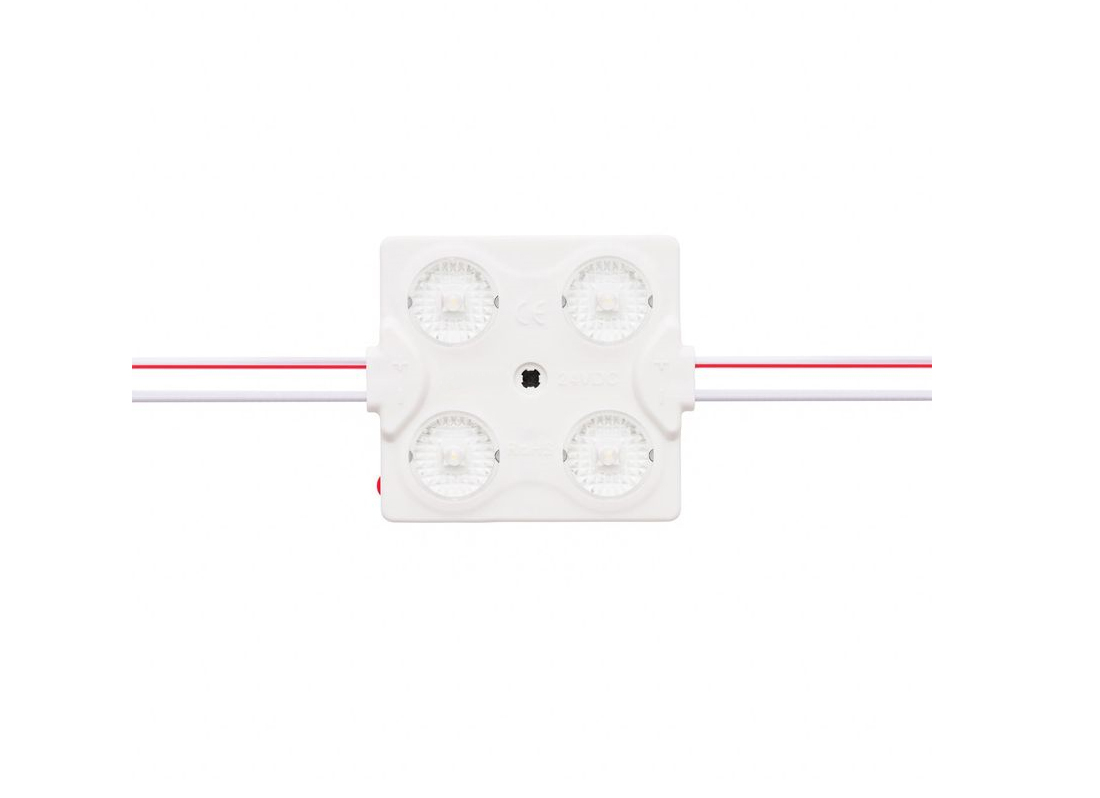

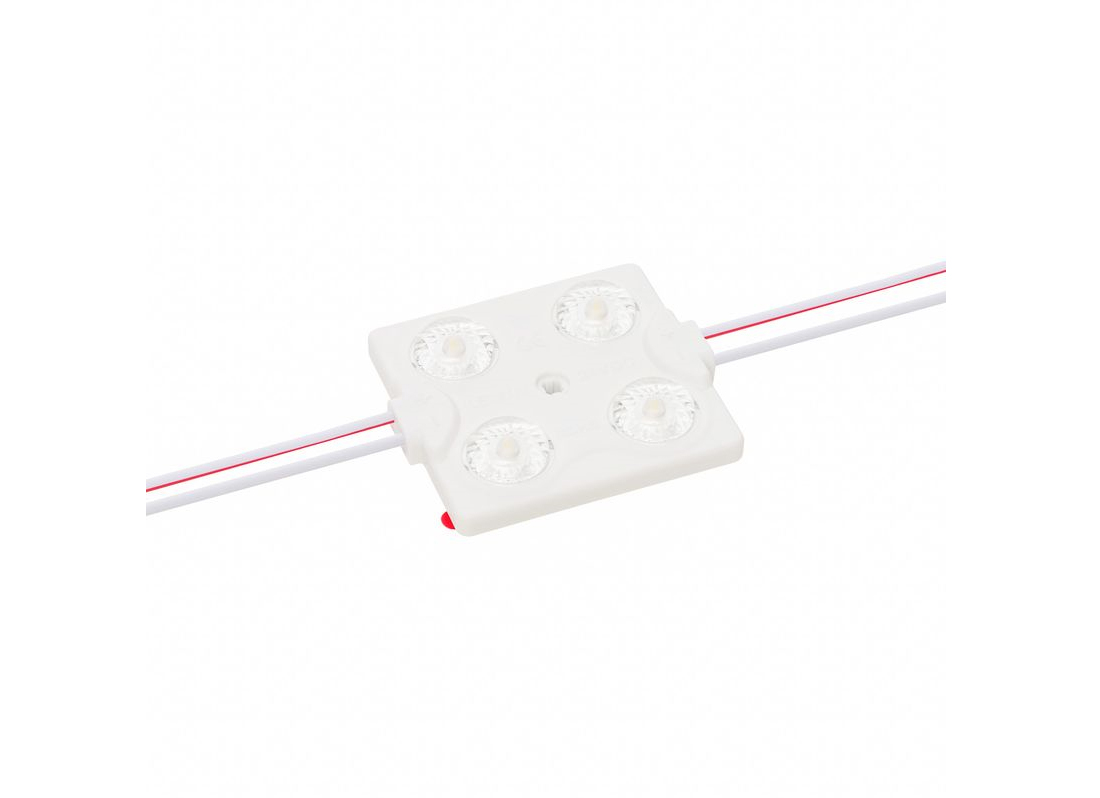

Model High Power 4 LED Module 2.0W white 240lm 170 °
(P/N:MB-4X28)
Inquiry Now Feature:
• Lit by Philips Lumileds 2835 SMD,
• Lumen efficiency up to 120 lm/W
• New tech Prims lens, Wide light spot (P:D/3:1)
• 3 MacAdam Ellipse each bin
• Finger-list 3M VHB tape, easy install
• IP67 waterproof, Injection molded
• 5 years Warranty
• Lit by Philips Lumileds 2835 SMD,
• Lumen efficiency up to 120 lm/W
• New tech Prims lens, Wide light spot (P:D/3:1)
• 3 MacAdam Ellipse each bin
• Finger-list 3M VHB tape, easy install
• IP67 waterproof, Injection molded
• 5 years Warranty

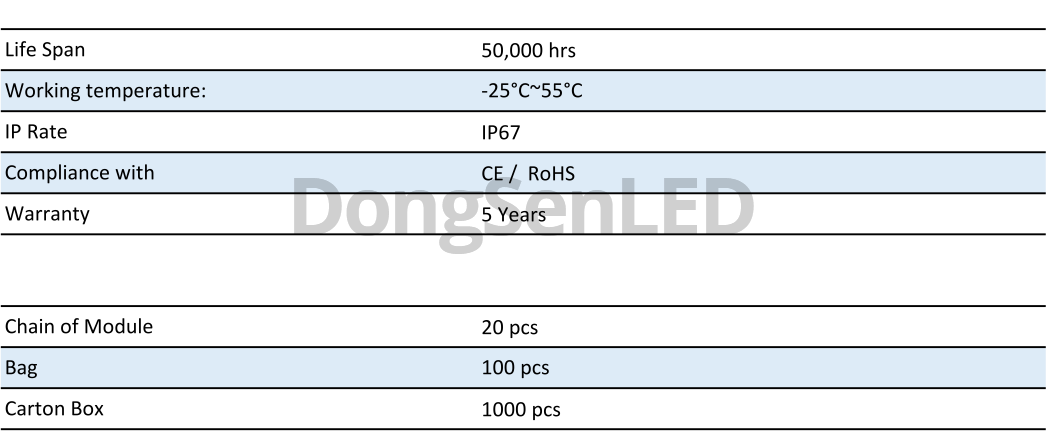

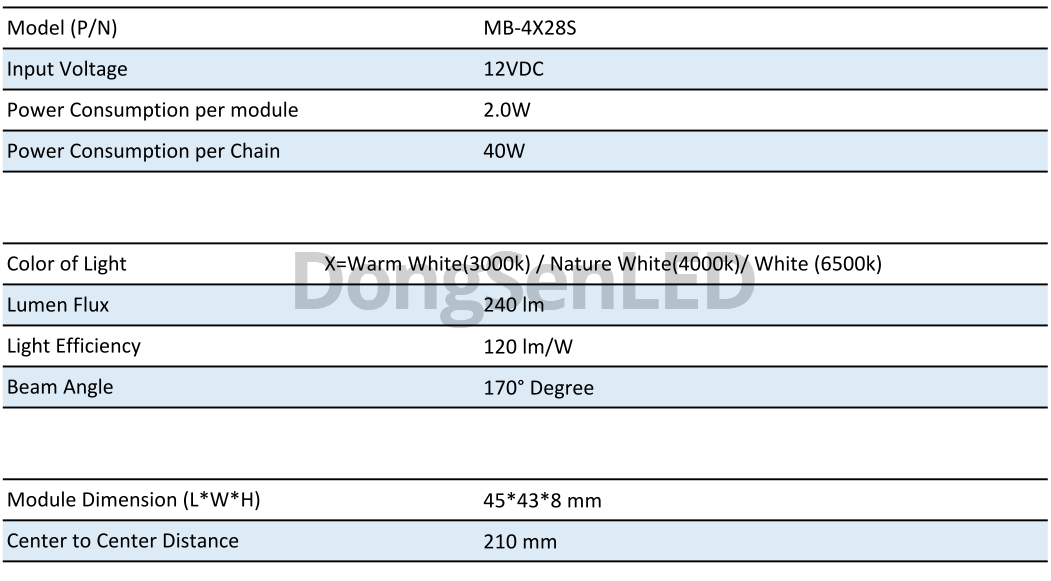

TECHNICAL PARAMETERS:

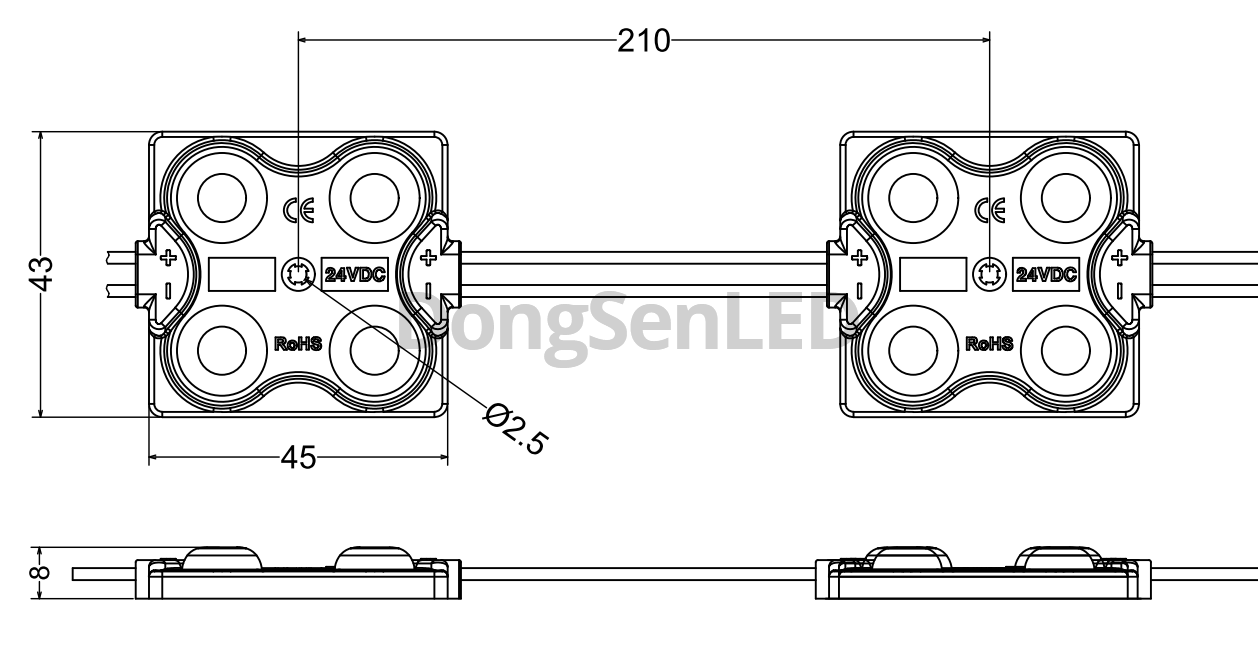

DIMENSION(MM):

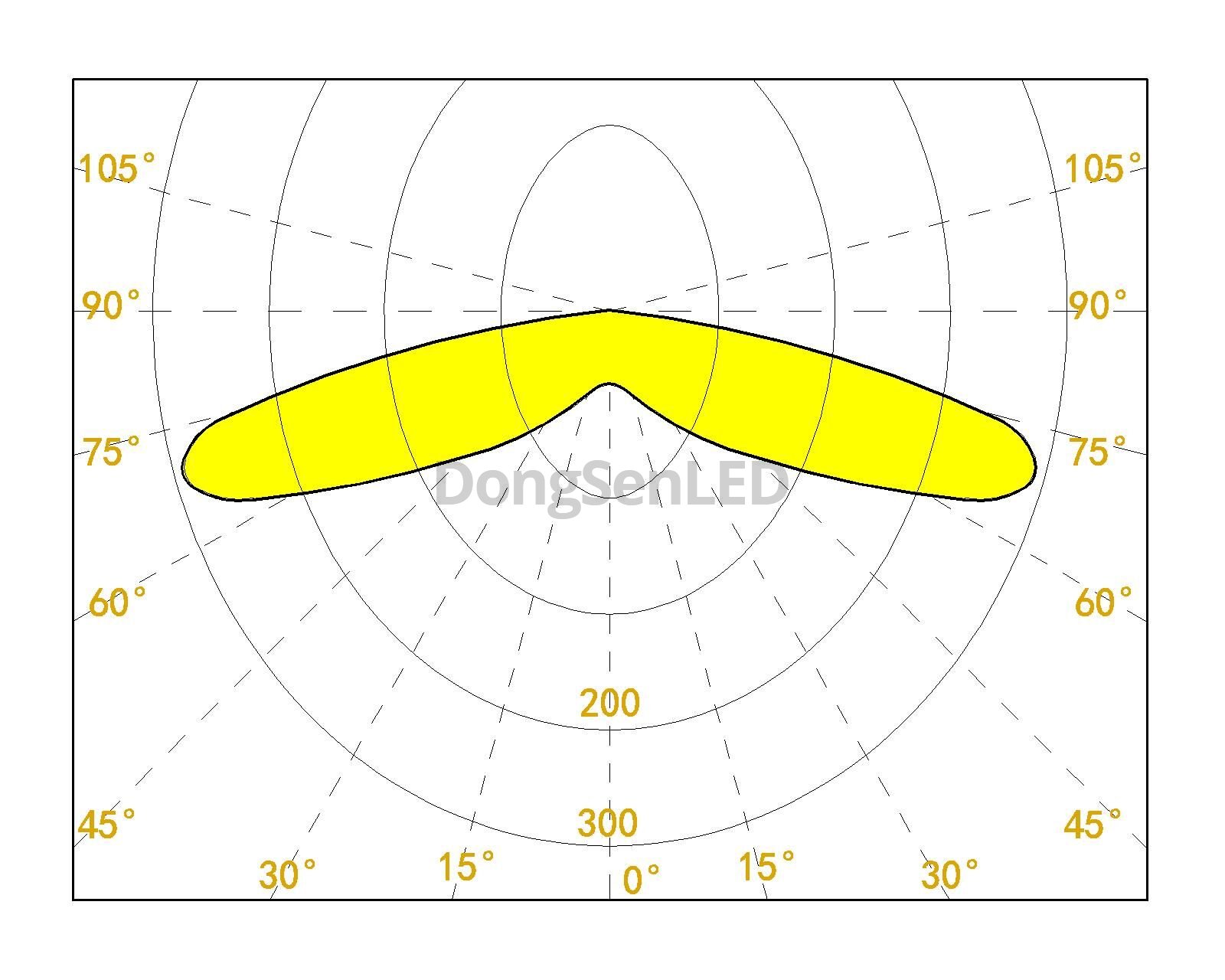

LIGHT DISTRIBUTION:

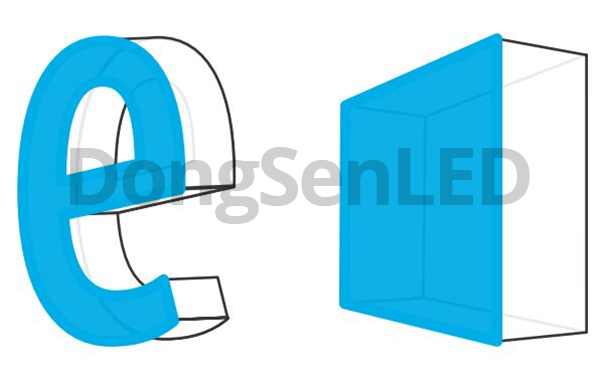

Application:
•Medium to Bigger size Channel letters
•Back light single side lighting box
•Recommended depth 130 – 300 mm
