9-LED Pixel Light

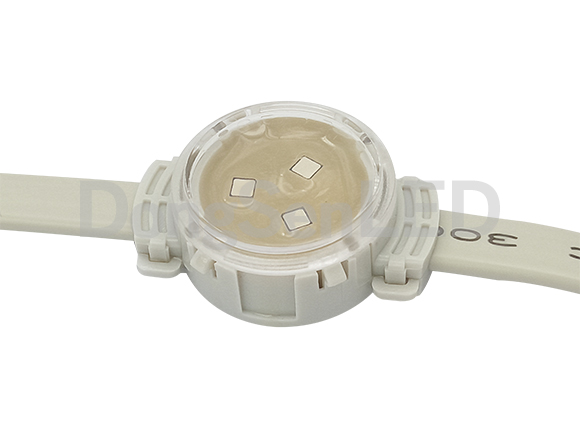

Model DMX512 LED Pixel Light Diameter 30mm DS-P30X2

(P/N: DS-P30X2)

Latest DMX512 parallel bus technology design;

Clip on-off style connection and anti- pull connection;

Using ultra-high brightness SMD3535 LED as light source, High brightness, Low light decay;

High thermal conductivity and full-sealing waterproof;

design by German imported glue;

Outdoor lightning protection and electrostatic;

Discharge (ESD) protection design;

Flexible design, 2 kinds mounting methods;

Parameter	Description
LED Brand	CREE/Osram/ Epistar Series
LED Type	3535 led
LED QTY	3 led
Working Voltage	DC12V
Power	maximum 0.72W
Color	Single color and Full color RGB

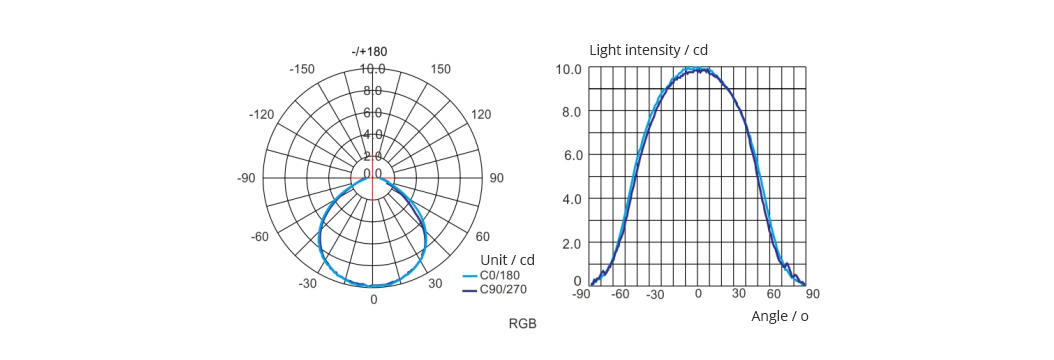

Beam Angel	120°
Span Life	50,000 hrs
Safety Class	III
MTBF	3 years
Control Method	DMX512/Serial
Gray Scale	8Bits/12Bits/16Bits
Control System	Dongsenled lights control system/ DMX control system
Shell Material	Weather resistance, fire resistance, ABS/PC lens
Surface treatment	No
Surface color	Light gray/black
Diamter	30 mm
Working Temperature	-30℃ to 50℃
Storage Temperature	-40℃ to 70℃
Humidity range	0%-90%
Protection Rating	IP67

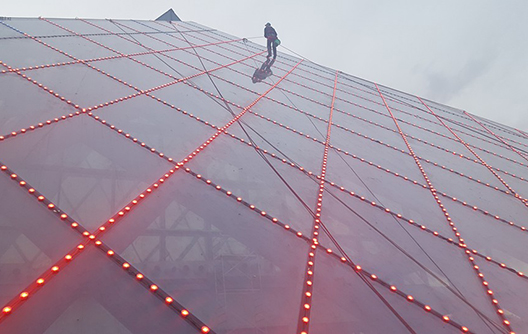

LED Display;

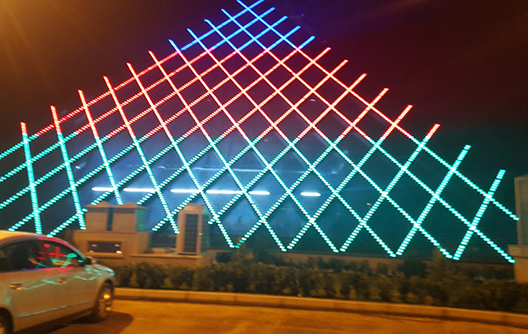

LED Decoration Lighting.
