20-2835 SMD Flexible LED Strip
Model High power 2835 smd flexible led ribbon IP65 waterproof TF08-60W28
(P/N: TF08-60W28)
Inquiry NowFeature:
High efficiency 2835 led, 20-22 lumen/led, CRI>80;
Double Layer PCB, white color, both 5mm and 8mm width PCB for your choice;

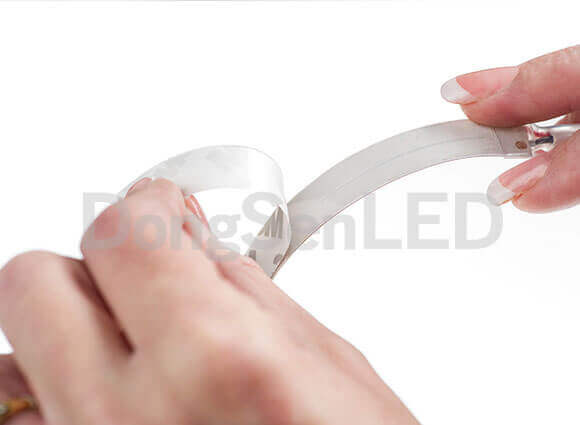

Excellent flexibility;
Perfect heat diffusion, the life of chip can be better guaranteed;
Slight voltage drop, Good light uniform for all roll;
Low Working voltage, DC12V&DC24V, safety;

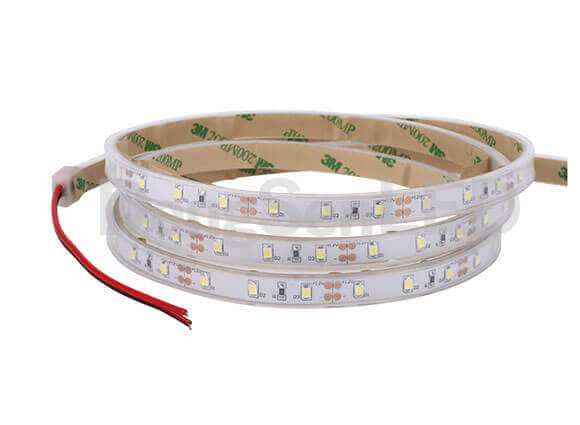

Both the waterproof type and nonwaterproof type are available;
Adhesive strong 3M tape, easy installation;
LED quantity and strip length can be customized.
Technical Parameters:
| Parameter | Description | ||||
|---|---|---|---|---|---|
| Voltage (V) | DC12V/ DC24V | ||||
| Power (W) | 12 W/m, 60 W/roll | ||||
| Available Color | White | Red | Green | Blue | Yellow |
| Lumen/m | 1200 | 460-475nm | 510-515nm | 590-595nm | 620-630nm |
| LED Type | 2835 SMD LED | ||||
| LED Qty | 60 led/m, 300 led/roll | ||||
| Chip Brand | Epistar Chip from Taiwan | ||||
| Viewing angle | 120 degree | ||||

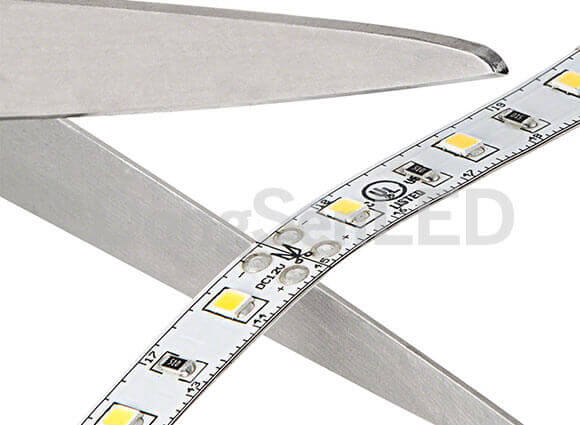

| Cuttable Unit | 50mm or 3 LED | ||||
| Dimension | 5000*08*04 mm | ||||
| IP Rate | IP65 | ||||
| Working Temperature | -40°C~60°C | ||||
| Storage Temperature | -50°C~80°C | ||||
| PCB | Double Layer, Color-White | ||||
| Span life | 50,000h | ||||
| Certification | CE&ROHS | ||||
| Part No. | TB08-60W28 | TB08-60R28 | TB08-60G28 | TB08-60B28 | TB08-60Y28 |

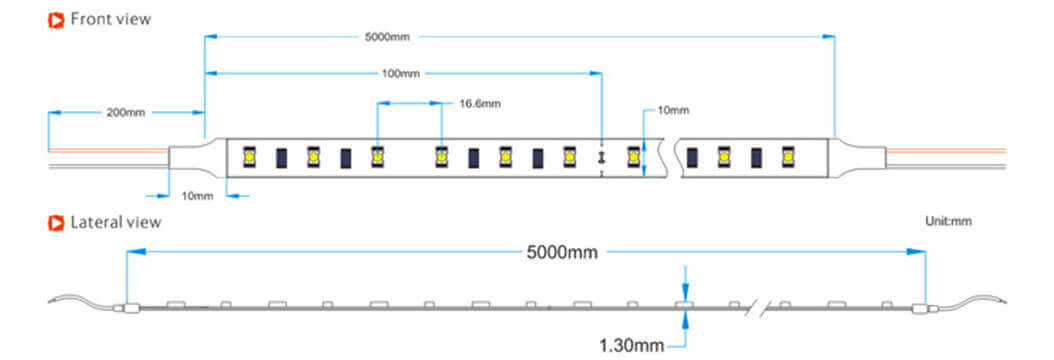

Dimension(mm):

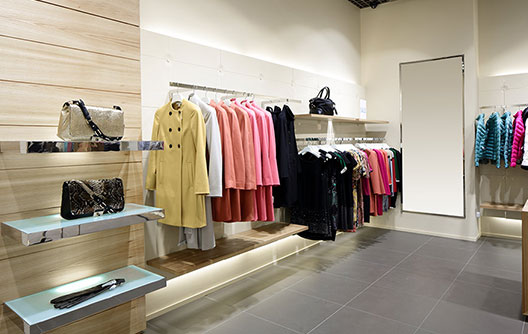

Application:
Cove lighting;
Decoration of the furniture;
Decoration for the ceiling lighting;
Backlighting of the channel letter and lighting box;
Decoration for the events, show, exhibition, ect;
Decoration for the market, supermall;
Edge lighting for the signage and windows.
