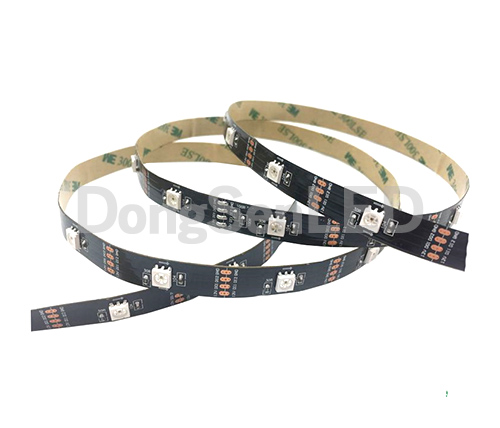

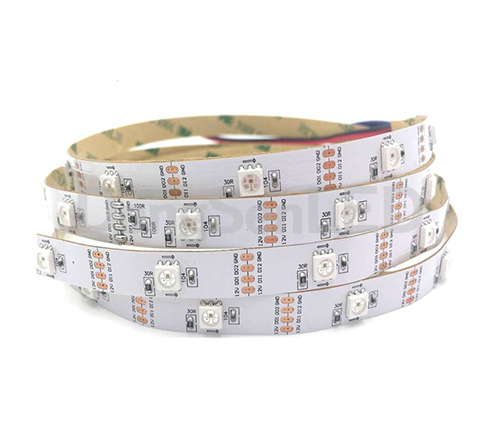

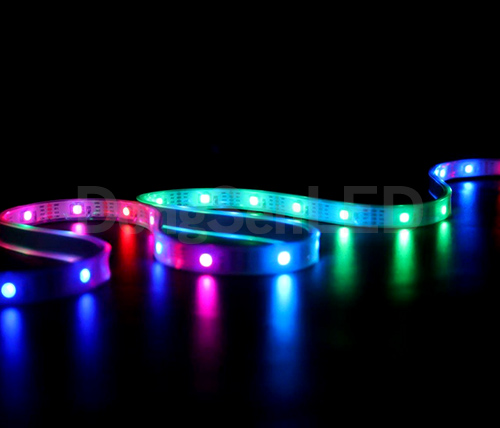

46-Addressable RGB Flexible led strip

Model Addressable RGB LED Strips DC12V WS2815IC 30led/m

((P/N: TB10-30IC15))

Individually addressable RGB LEDs, 30LED/m

24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel

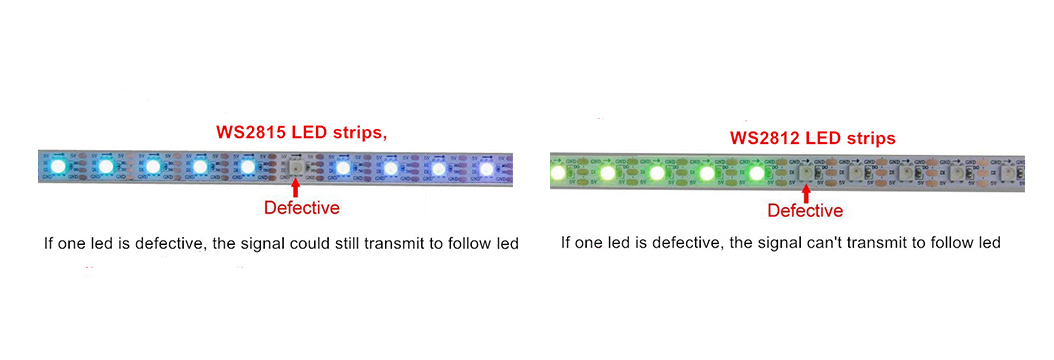

The PCB is signal break-point continuous transmission

12VDC operating voltage

Each RGB LED draws approximately 16 mA at 12V with red, green, and blue at full brightness

Strips can be cut apart along the lines between each RGB LED segment to separate them into usable shorter sections

CE and ROHS certificated

Voltage (V)	DC12V
Power (W/pc)	9 W/m, 45 W/roll
Available Color	Full color
Lumen/m	/
LED Type	Integrate 5050 RGB LED with IC in it
IC type	WS2815 IC 24-bit color control (8-bit PWM per channel);16.8 million colors per pixel
Control Method	Individually control
DMX Support	Yes
LED Qty	30 led/m, 150 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree
Cuttable Unit	Every single led could be cuttable
FPCB width	10 mm
IP Rate	IP20/ IP65/IP67
Working Temperature	-25°C~60°C
Storage Temperature	--50°C~80°C
PCB	Double Layer, Color-White
Span life	50,000h
Certification	CE&ROHS
Warranty	2 Years
