Model Integrated RGBW flexible led strip 4 chip in 1 led 19.2w/m DC24v TB12-60RGBW50
(P/N: TB12-60RGBW50)
Inquiry NowFeature:
Adopt super brightness 5050 SMD LED as light sources, Original Epistar chip from Taiwan;

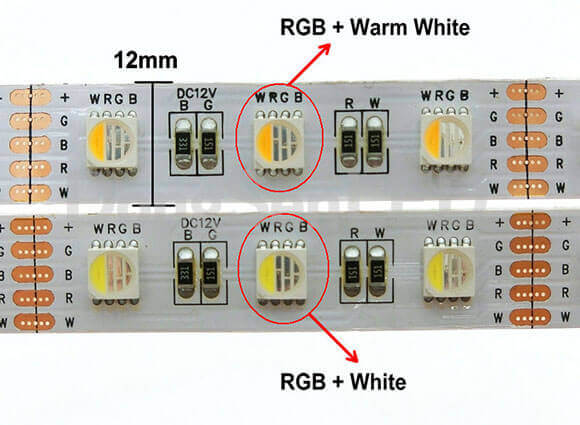

Color changing: RGB+Warm White/Nature white/Cool white;
4 chip in 1 LED, more stable quality and unique light effects;
FPCB, double layel, Low voltage drop and perfect heat dissipation;
3M self-adhesive tape in the back, easy installation;
Dimmable;
CE&ROHS Certificated, 3 years warranty;
Controller: IR or RF remote RGBW LED Controller.
Technical Parameters:
| Parameter | Description |
|---|---|
| Part No. | TB12-60RGBW50 |
| Voltage (V) | DC12V/ DC24V |
| Power (W/pc) | 19.2 W/m, 96 W/roll |
| Available Color | RGB+Warm White/Cool White |
| Color Temperature Wave Length(nm/k) | Red Green Blue WW W |
| 620-625 525-530 465-470 2700-3000 6000-6500 | |

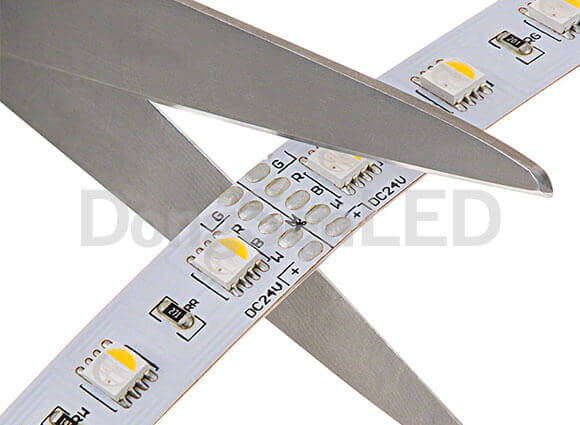

| Cuttable Unit | 50mm or 3 LED |
| LED Type | RGBW 4-in-1 5050 SMD LED |
| LED Qty | 60 led/m, 300 led/roll |
| Chip Brand | Epistar Chip from Taiwan |
| Viewing angle | 120 degree |
| Working Temperature | -25°C~60°C |
| Storage Temperature | -50°C~80°C |
| PCB | FPCB, Double Layer, Color-White |
| IP Rate | IP20/IP65/IP67 |
| Dimension | 5000*12*02 mm |
| Span life | 50,000h |
| Certification | CE&ROHS |
| Warranty | 3 Years |
Dimension(mm):

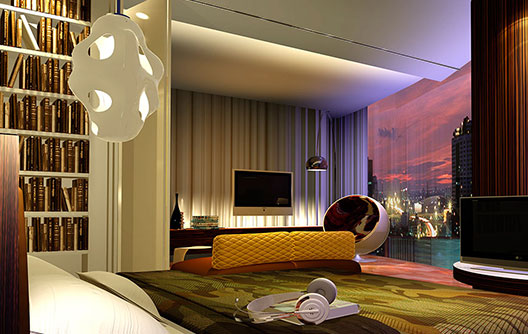

Application:
Cove lighting;
Decoration of the furniture;
Decoration for the ceiling lighting;
Backlingting of the channel letter and lighting box;
Decoration for the events, show, exhibition, ect.
