47-High Efficiency LED Module
Model High Efficiency LED Module 0.72W 118lm
(P/N: MU-4W28S)
Inquiry NowFeatures:
High efficiency, over 160 lm/W;
0.72W/pc, with 118 lumen output;
High Color consistency (MacAdam 3), each family one bin;
LM80 international certificate for LEDs;
160° degree beam angle;
5 Years warranty;
Technical Parameters:
| Parameter | Description | ||
|---|---|---|---|
| Part No. | MU-4W28S | ||
| Voltage (V) | DC12V | ||
| Power (W/pc) | 0.72 W/pc | ||
| Available Color | Warm White | Pure White | Cool White |
| Luminous Flux(lm) | 118 LM | ||
| Color Temperature Wave length (k/nm) | 2700-3000k | 6000-6500k | 9000-12,000k |
| LED Type | 2835 LED | ||
| LED Qty | 4 led/pc | ||
| Chip Brand | Epistar | ||
| Viewing angle | 160 degree | ||
| Shell | Fire proof ABS+Optical Lens | ||
| Driving Method | Constant Voltage Drive | ||
| Standard QTY per Chain(pcs) | 20 pcs | ||
| Working Temperature | -25°C~60°C | ||
| Dimension | 64*10*8.3 mm | ||
| IP Rate | IP 67 | ||
| Span life | 50,000h | ||
| Certification | CE&ROHS | ||
| Warranty | 5 Years | ||

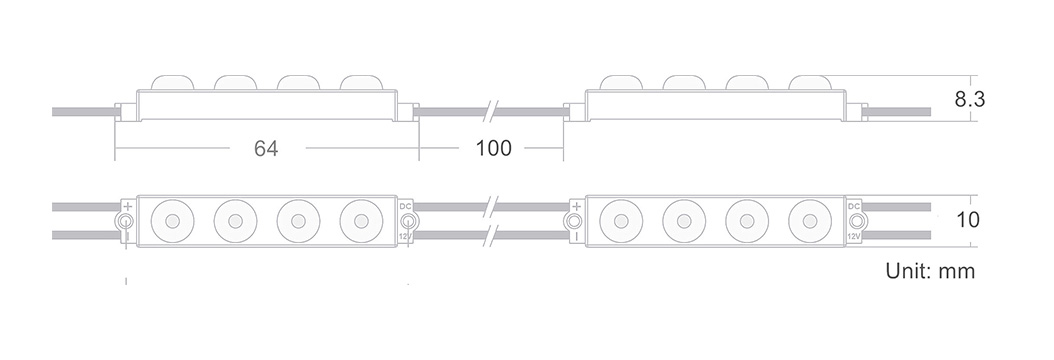

Dimension(mm):

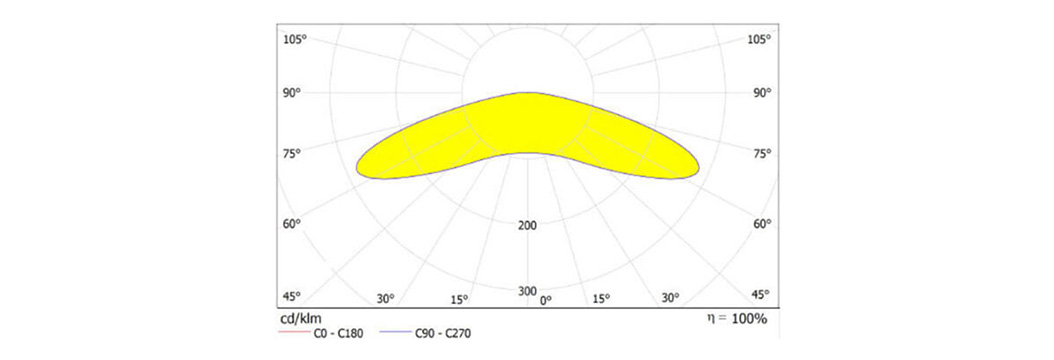

Light Distribution Curve:

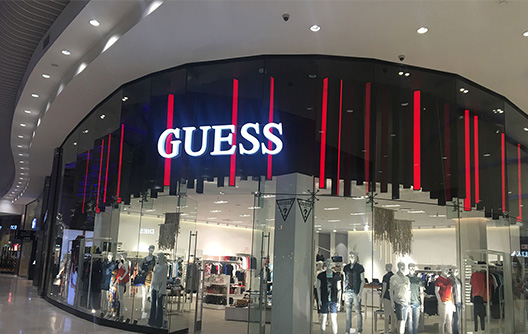

Application:
Medium-size channel letters & light box;
Recommended depth 80-200mm;
