LED Module-Bat-wing Lens LED Module 160°

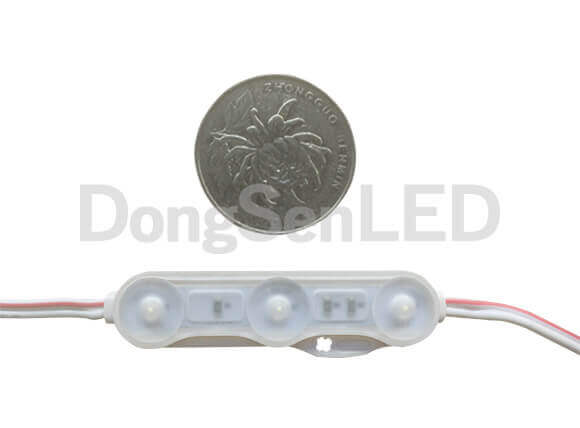

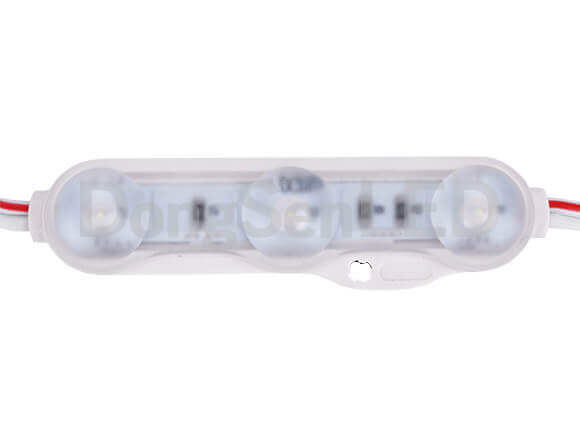

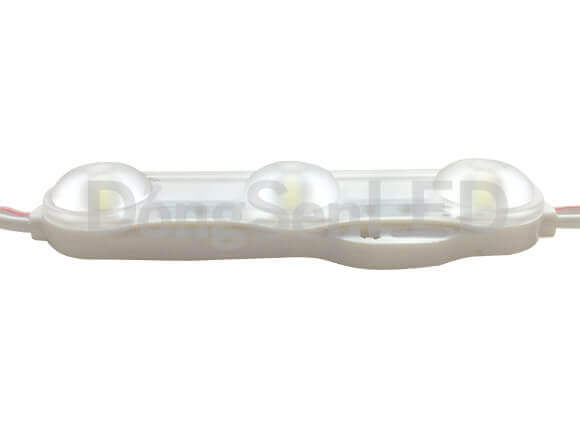

Model Constant current 2835 inject led module with lens IP67 MHS-3W28
(P/N: MHS-3W28)
Inquiry NowFeature:
High Efficiency 2835 LED, 145 lumen/module, Long Life, Low encapsulation;
160º Bat-Wing Optics Design;
High Color uniform (MacAdam 4);
Injection mold process, Waterproof rate: IP67;
CE&ROHS certification, 5 years Warranty;

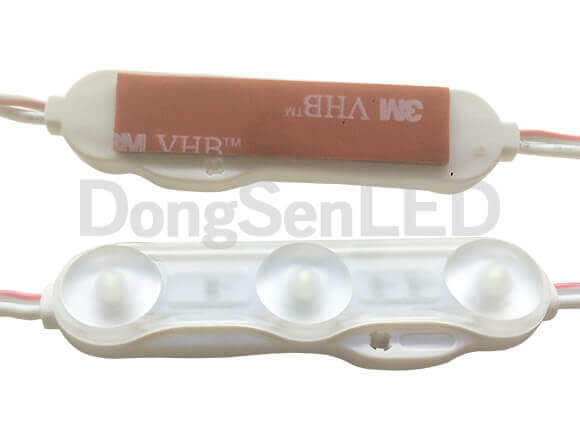

Strong 3M VHB tape adhesive, faster installation.
Technical Parameters:
| Parameter | Description |
|---|---|
| Voltage (V) | DC12V |
| Power (W) | 1.5W |
| Available Color | Warm White/ Pure White/ Cool White |
| Color Temperature Wave length (nm) | 2700-11.000k |
| Lumen | 145 Lumen |
| Viewing angle | 160 degree |
| LED Qty | 3 led/pc |
| LED Type | 2835 SMD LED |
| Chip Brand | Epistar Chip from Taiwan |
| Drive Method | Constant Current Drive |
| Standard QTY per Chain(pcs) | 20 pcs |
| Dimension | 68*18.5*9.2 mm |
| IP Rate | IP 67 |
| Shell | Fire proof ABS+Optical Lens |
| Working Temperature | -40°C~60°C |
| Span life | 50,000h |
| Certification | CE&ROHS |
| Part No. | MHS-3W28 |
| Warranty | 5 Years |

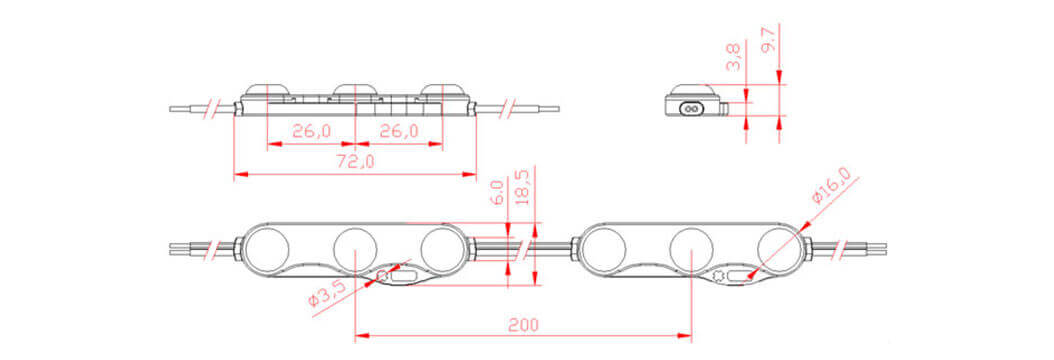

Dimension(mm):

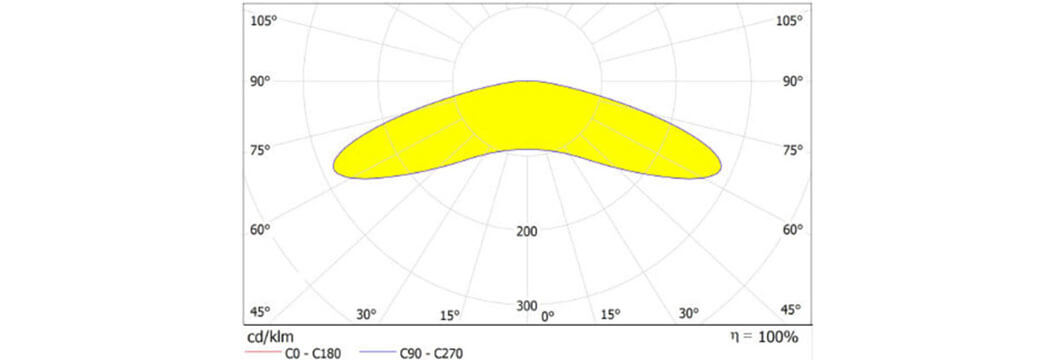

LED Module Light distribution:

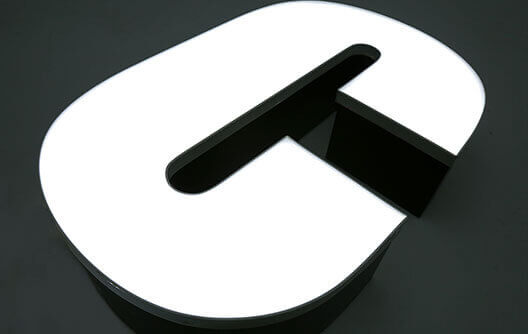

Application:
Best for the 120-250mm depth channel letter and lighting box;
Medium-big size Illuminate signage;
LED Glow Sign.
