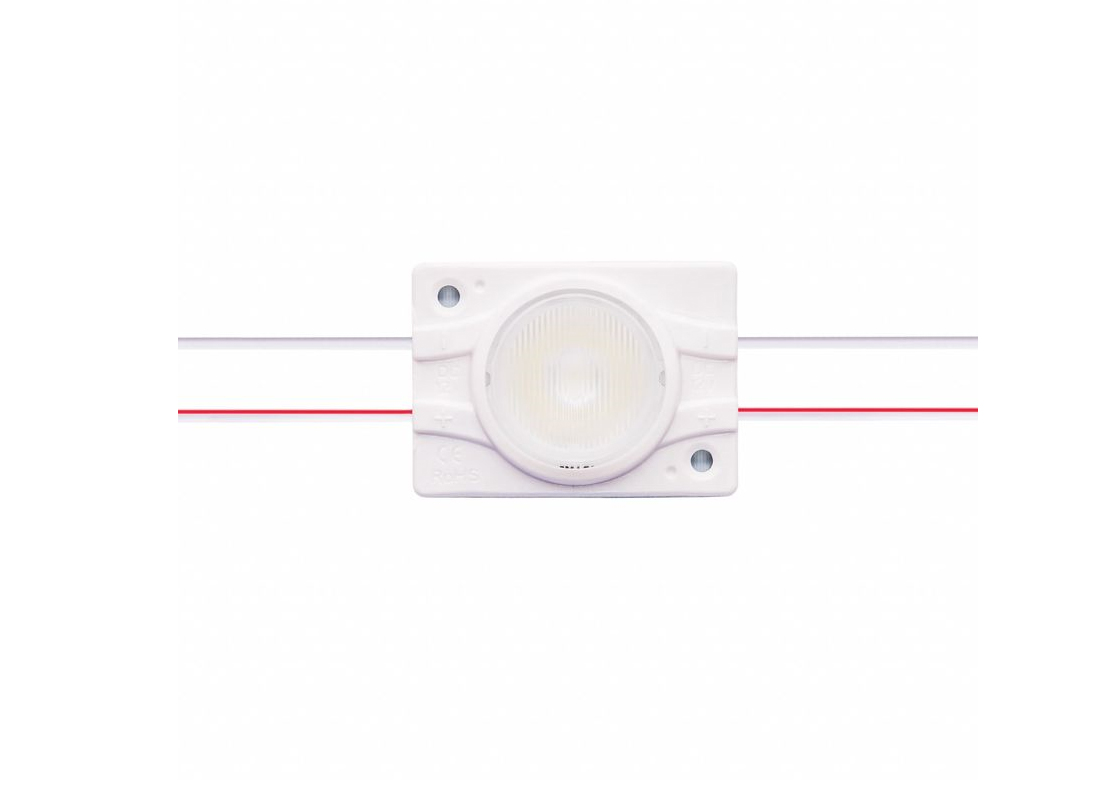

Model 2W Edge lit led module 200lm EMC3030LED 18*45°
(P/N:MH-2W)
Inquiry Now
Feature:
• Lit by EMC 3030 SMD, 200lm/module
• 18x45°Beam angle, high brightness, high transmittance LENS
• LM80 international certificate for LEDs
• Constant currect tech, 30 pcs per Chain
• Light decay < 30% after 50,000 hrs
• 5 years Warranty

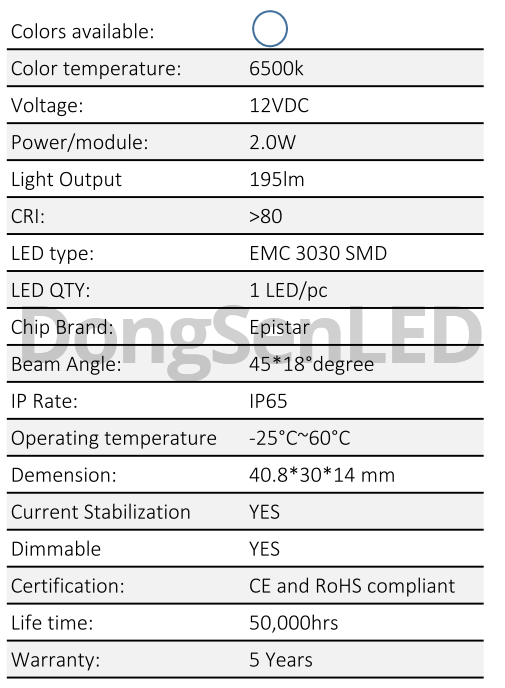

TECHNICAL PARAMETERS:

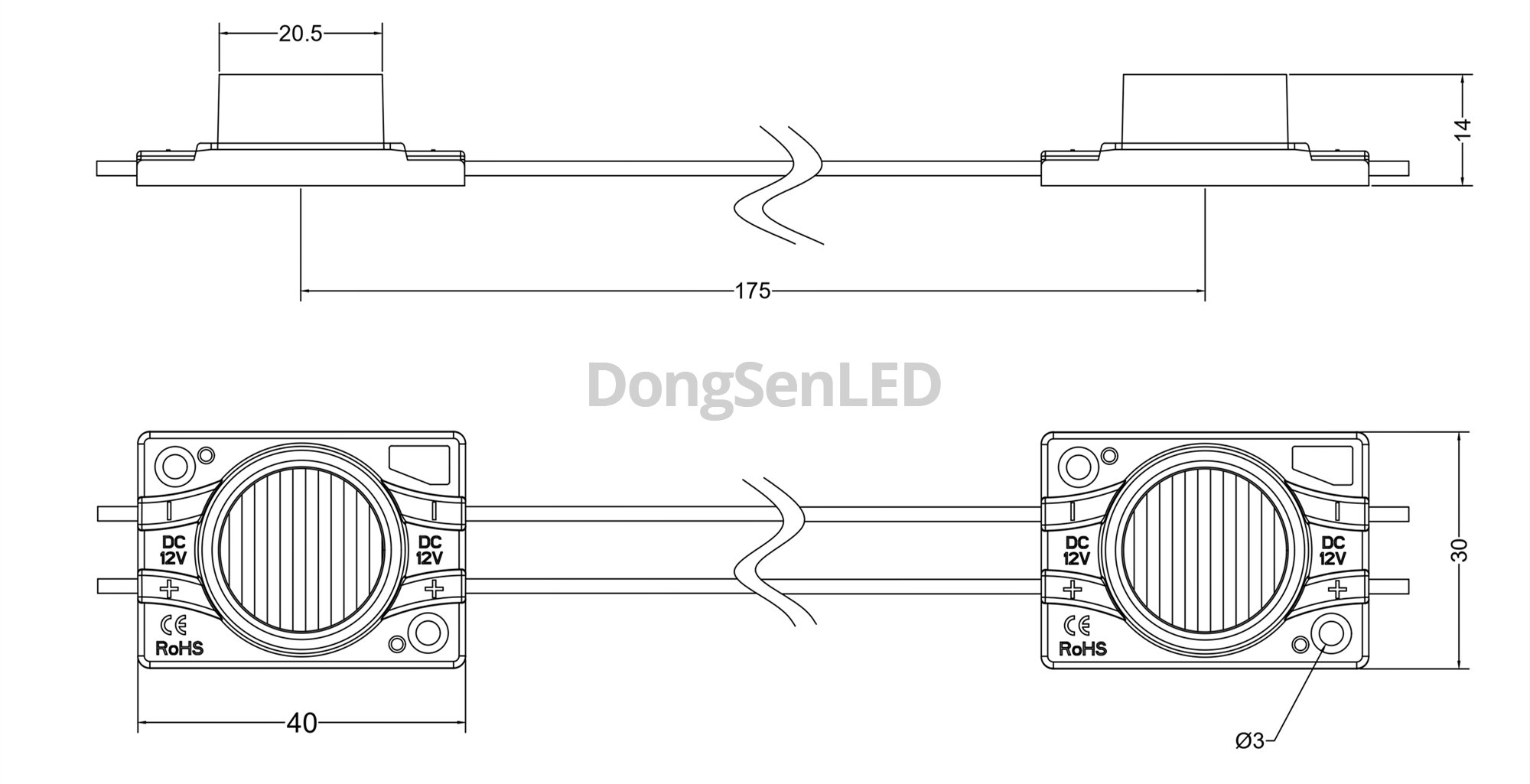

Dimension:

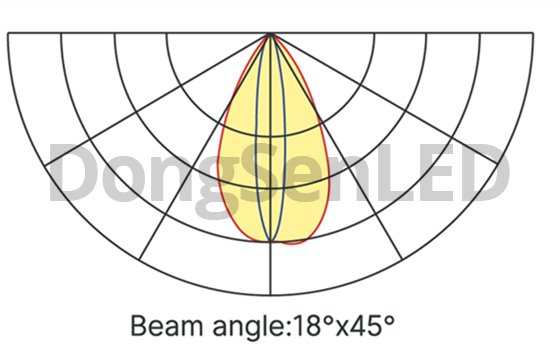

Light Distribution:

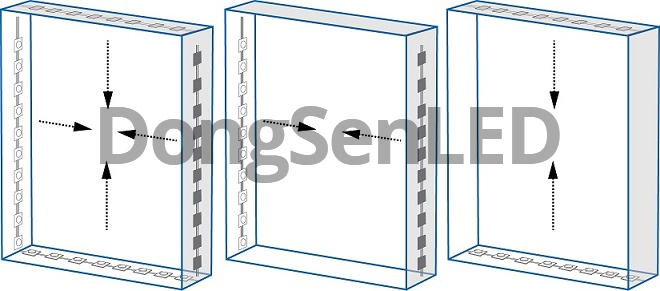

Application:
•Thicker double side Lighting box
•Recommended depth 120 – 250 mm
