Home > Products > LED Module > Samsung LED Module > High Brightness Samsung 5630 LED Sign Module IP68 1.2W MU-3W56S
15-Samsung LED Module

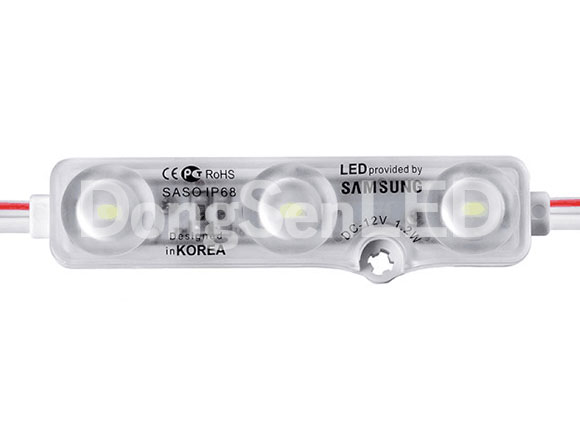

Model High Brightness Samsung 5630 LED Sign Module IP68 1.2W MU-3W56S
(P/N: MU-3W56S)
Inquiry NowFeature:
High Efficiency 5630 LED, Original Samsung led from Korea
Ultrasonic welding tech, IP Rate: IP68
160º Bat-Wing Optics Design, Wider beam angle
High Color consistency (MacAdam 4)
Cuttable every 1 module
Slight voltage drop
5 Years warranty
Technical Parameters:
| Parameter | Description |
|---|---|
| Voltage (V) | DC12V |
| Power (W/pc) | 1.2 W |
| Available Color | Warm White/ White/ Cool White |
| Lumen/pc | 135-150 LM |
|
Color Temperature Wave length (k/nm) |
2700-11,000k |
| LED Type | 5630 SMD LED |
| LED Qty | 3 led/pc |
| Chip Brand | Samsung |
| Viewing angle | 160 degree |
| Shell | Fire proof ABS+Optical Lens |
| Driving Method | Constant Current Drive |
| Standard QTY per Chain(pcs) | 20 pcs |
| Working Temperature | -25°C~60°C |
| Dimension | 66*15*8.3 mm |
| IP Rate | IP 68 |
| Span life | 50,000h |
| Certification | CE&ROHS |
| Warranty | 5 Years |
| Part No. | MU-3W56S |

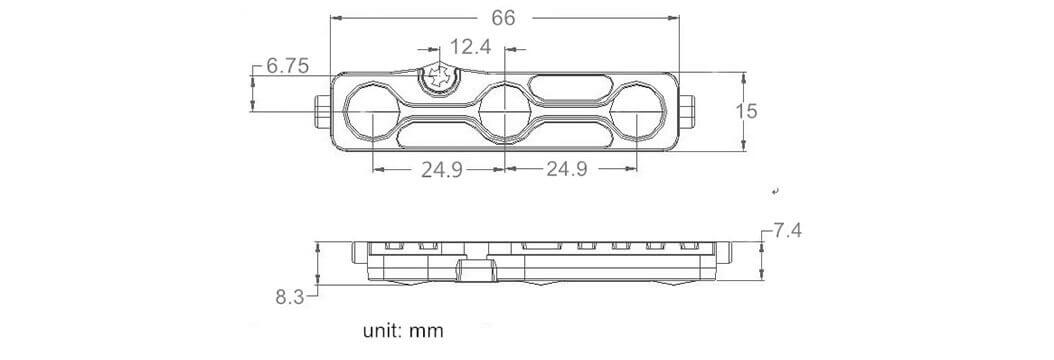

Dimension(mm):

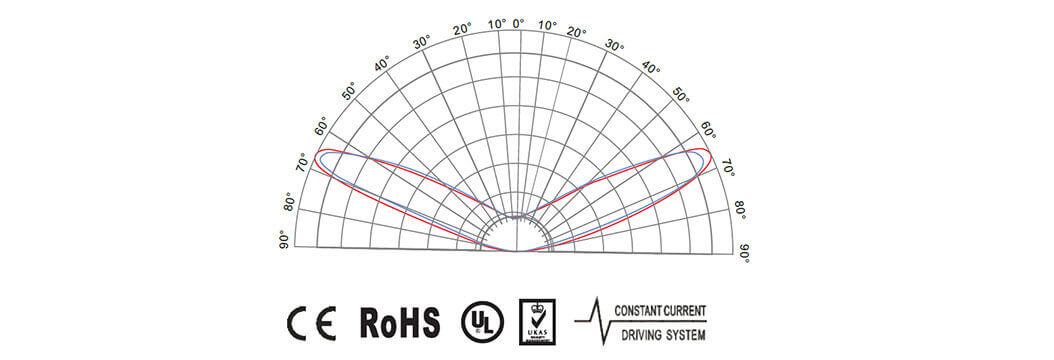

LED Module Light distribution :

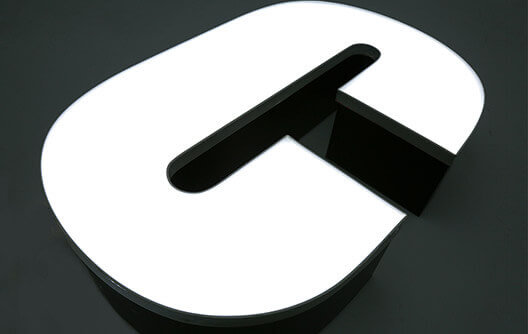

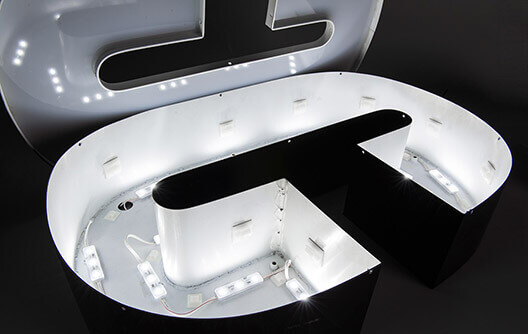

Application:
Best for the 120-250mm depth channel letter and lighting box;
Medium-big size Illuminate signage;
LED Glow Sign.
