31-Plug LED Power Supply

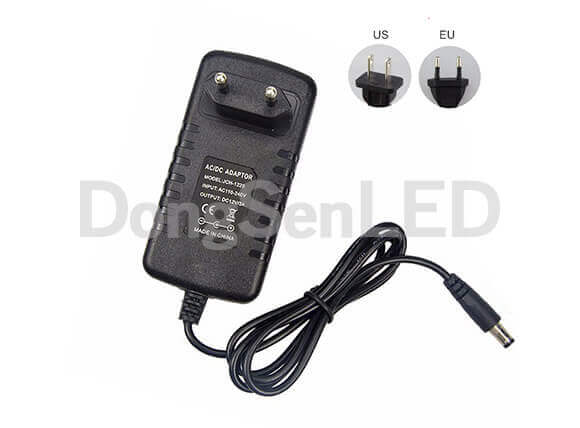

Model Wall-Mounted Desktop LED Power Adaptor DC12V 3A for Flexible led strip DS-P12-3A
(P/N: DS-P12-3A)
Inquiry NowFeature:
Built-in over voltage, over current, and short circuit protection;
PWM design, make sure the stability and high efficiency of power supply;
Anti-jamming, passed EMC test, wave less than 20MV;
Output Adaptor Jack is standard DC jack, size : 5.5mmX2.1mm;
Widely used as the power adapter for Led strip, LED module, etc;
Technical Parameters:
| Parameter | Description |
|---|---|
| Part No. | DS-P12-3A |
| Connection Type | CPS Male |
| Input Voltage | AC85 ~ 264V |
| Output Voltage | DC12V |
| Output Current | 3A |
| Consumption | 36 Watt |
| Dimmable | No |
| Special Features | With AC Input Plug |
| Type | Led Power Supply |
| Operating Temperature | -25~+60 °C |
| Wire Length | 40in(100cm) |
| DC Jack Type | 5.5 Barrel Connector |
| Power Supply Type | Desktop |
| IP Rate | IP20 |
| Standards And Certifications | FCC/CE/RoHS Compliant |
| Warranty | 2 years |
| WarPackage Weight | 0.21KG |
