Home > Products > LED Module > Light Box LED Module > Diffusion Lens Rigid LED Bar- for Backlit light box YB24-12W30
LED Module-Light Box LED Module

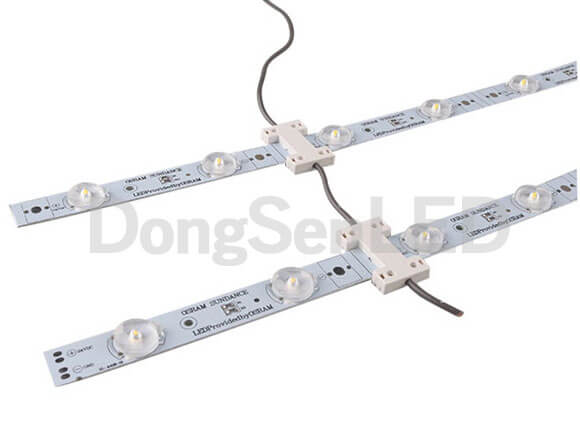

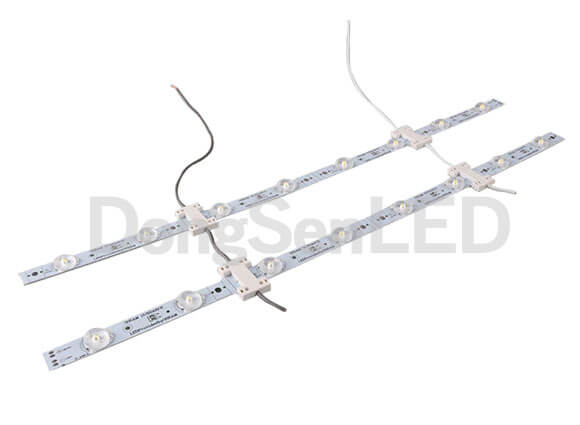

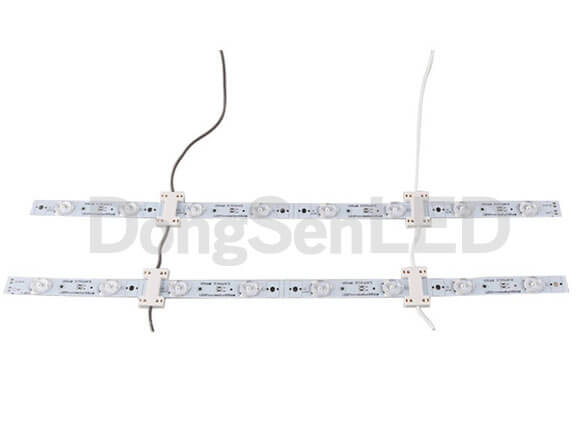

Model Diffusion Lens Rigid LED Bar- for Backlit light box YB24-12W30
(P/N: YB24-12W30)
Inquiry NowFeature:
1. Light source: 1 Watt Osram 3030 SMD LED;

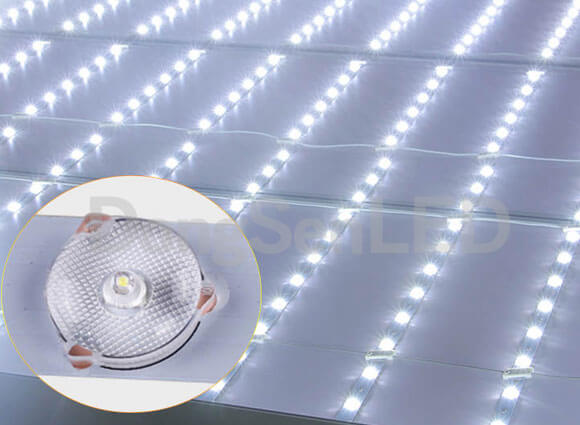

2. Optical Lens, 170° degree viewing angle
3. Uniform light by strictly controlled bin rank system
4. COST-WISE solution for slim light box
5. Installation method: M3 screws to fix
6. Standrad Length: 1 meter, also could be customize to your inquiry.
Technical Parameters:
| Parameter | Description |
|---|---|
| Voltage (V) | DC24V |
| Power Consumption(W) | 14.4 W/pc |
| Available Color | Warm White/ Pure White |
| Color Temperature | 2800-3500k/ 6000-6500k |
| Luminous Flux (lm/pcs) | 1440 Lumen |
| Viewing angle | 170 degree |
| LED Type | 1Watt 3030 LED |
| Chip Brand | OSRAM LED/ Epistar |
| LED Qty | 12 led |
| Distance between LEDs | 83.33 mm |
| Dimension(mm) | 1000*18*7 |
| IP Rate | IP33 |
| Working Temperature | -25°C~60°C |
| Span life | 50,000 h |
| Certification | CE&ROHS |
| Warranty | 3 Years |
| Part No. | YB24-12W30 |

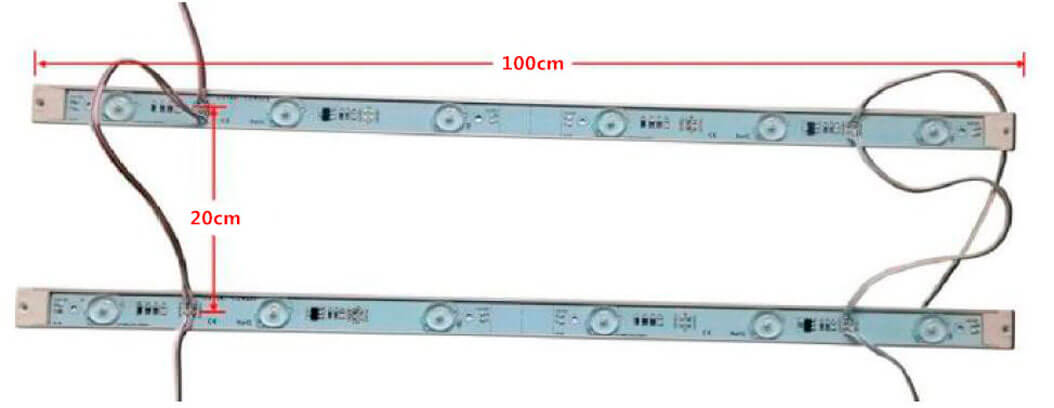

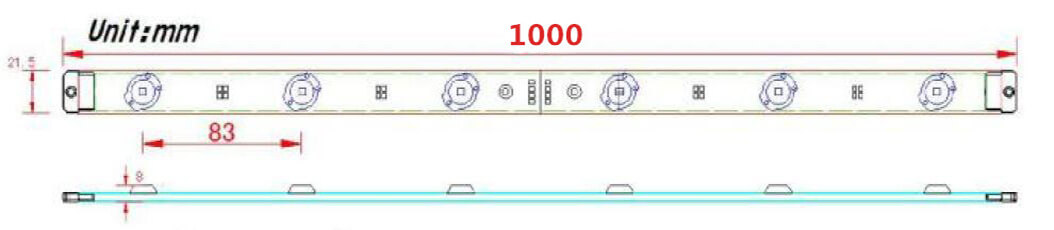

Dimension(mm) :

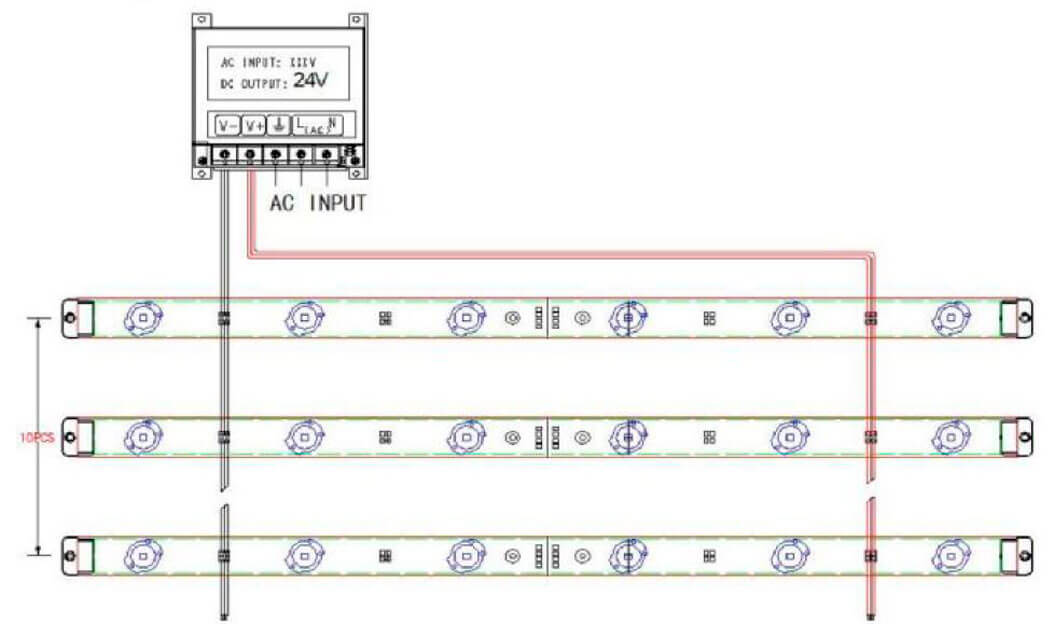

Connection diagramm:

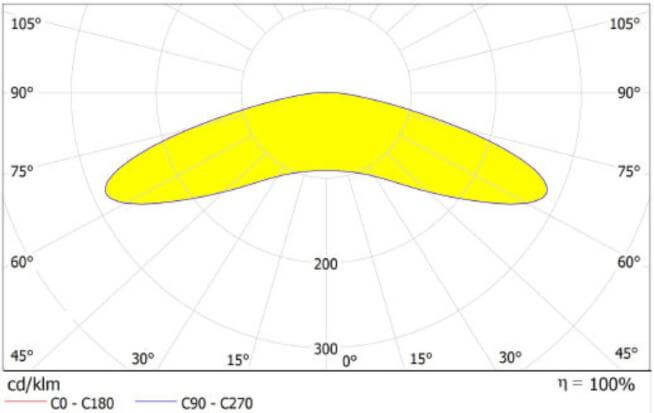

Light Distribution Curve:

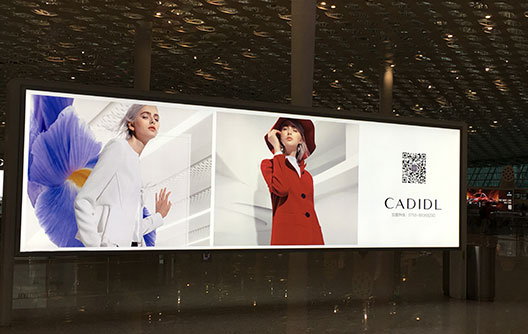

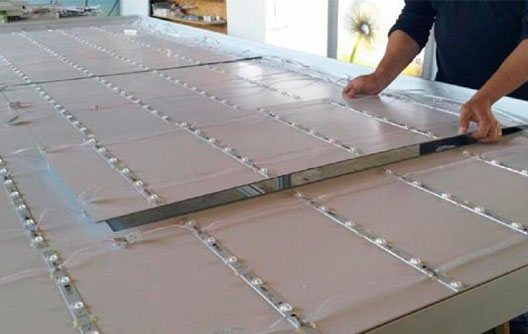

Application:
1. 4-10cm thickness light box
2. Display back light source for indoor or outdoor
3. Used as lighting source for irregular shape light
4. Shopping malls, airport, subway, bus station and other places of single-side light box
