LED Module-Light Box LED Module

Model 1.4W Backlit LED Module 170° OSRAM LED 5 Years Warranty P/N:MHB-1WB

(P/N: MHB-1WB)

1. Lit by OSRAM LED, 5 Years warranty.

2. Beam Angle 170° degree, Mirco prism optical lens produce a wide, even light spread.

3. 3 MacAdam ellipse each bin.

4. LM80 international certificate for LEDs.

5. Aluminum PCB for better heat dissipation.

6. Light decay < 30% after 50,000 hrs.

7. Constant Current design, max run 30 pcs.

Parameter	Description
Part No.	MHB-1WB
Voltage (V)	DC12V
Power (W)	1.4 W
Available Color	Warm White/ Pure White
Lumen/pc	130-140LM
CRI	>80
Color Temperature Wave length (k/nm)	2700-6500k
LED Type	2835 SMD led
LED Qty	1 led/pc
Chip Brand	OSRAM

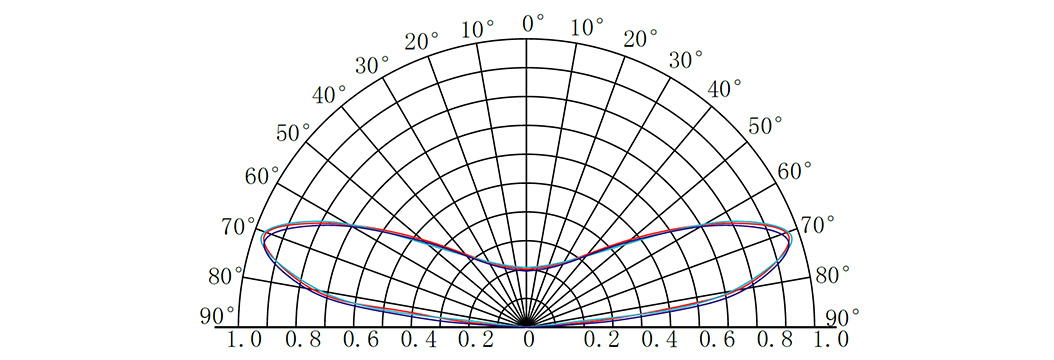

Viewing angle	170°degree
Shell	Fire proof ABS+Optical Lens
Driving Method	Constant Current
Standard QTY per Chain(pcs)	30 pcs
Working Temperature	-25°C~60°C

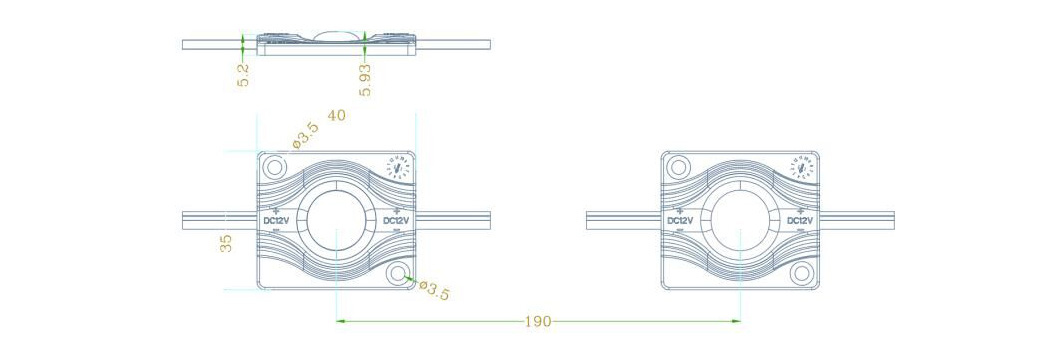

Dimension	40356 mm
IP Rate	IP 65
Span life	50,000h
Certification	CE&ROHS
Warranty	5 Years
