23-335 SMD Side View LED Strip
Model 335 Side Emitting Flexible led strip-LED Tape light with 120led/m warm white IP20 TB08-120W335
(P/N: TB08-120W335)
Inquiry NowFeature:
Side emitting 335 SMD LED, high intensity and reliability;
Flexible ribbon for curving around bends;
120° degree beam angle;

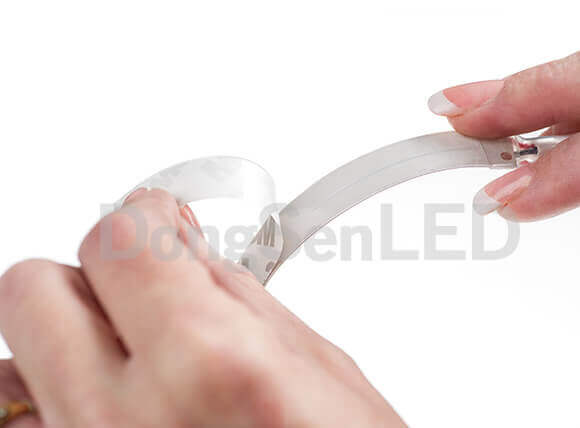

Adhesive 3M tape, easy install;
Dimmable;

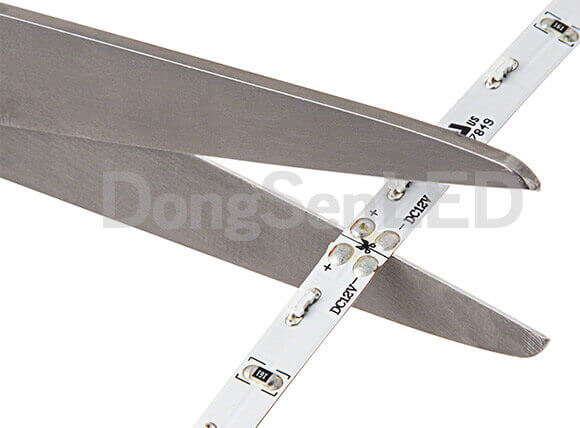

Every 3 led as a segment, could be cut to get your desire length.
Technical Parameters:
| Parameter | Description |
|---|---|
| Part No. | TB08-120W335 |
| Voltage (V) | DC12V |
| Power (W/pc) | 9.6 W/m, 48 W/roll |
| Available Color | White/Red/Green/Blue/Yellow |
| LED Type | 335 Side viewing LED |
| LED Qty | 120 led/m, 600 led/roll |
| Cuttable Unit | 25mm or 3 LED |
| Certification | CE&ROHS |
| Chip Brand | Epistar Chip from Taiwan |
| Viewing angle | 120 degree |
| Working Temperature | -40°C~60°C |
| Storage Temperature | -50°C~80°C |
| PCB | Double Layer, Color-White |
| IP Rate | IP20/ IP65 |
| Dimension | 5000*08*02 mm |
| Span life | 50,000h |
| Warranty | 3 Years |

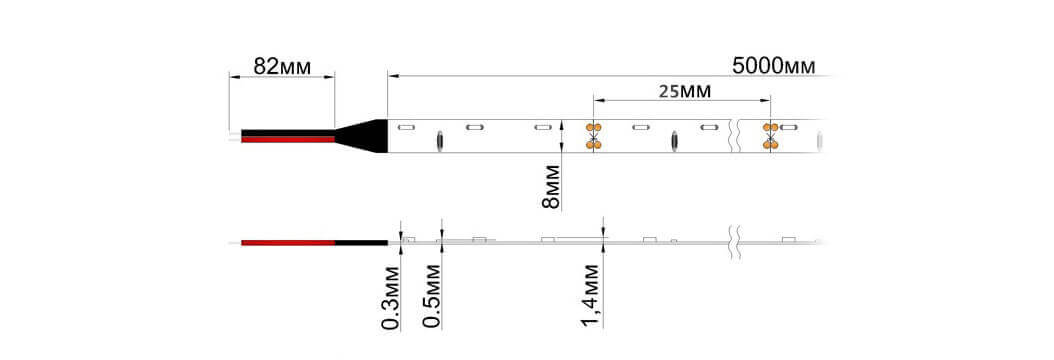

Dimension(mm):
Application:
Cove LED Lighting;

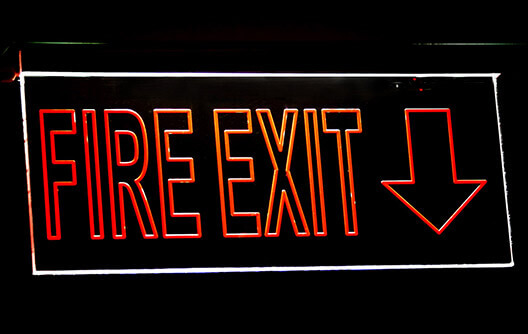

Backlit or edge light for advertising boxes, letters and signs;
Accent LED lights;

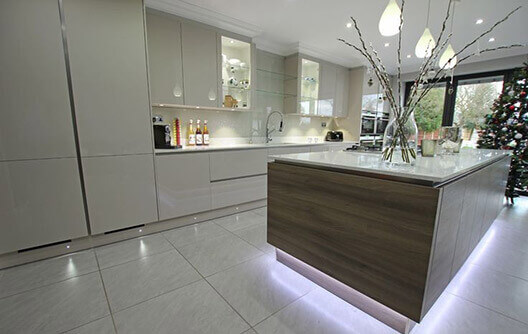

Under cabinet lighting.
