23-335 SMD Side View LED Strip
Model 335 side viewing flexible led strip TB08-60W335
(P/N: TB08-60W335)
Inquiry NowFeature:
Ultra bright 335 SMD top LED, high intensity and reliability;
Flexible ribbon for curving around bends;
Completely smooth and even light spread, solving the uneven luminous problem;
120° optics improve visibility with wider area illumination;
Availble in White/Red/Green/Blue/Yellow color;
IP20&IP65, could be used both indoor and outdoor.
Technical Parameters:
| Parameter | Description |
|---|---|
| Part No. | TB08-60W335 |
| Voltage (V) | DC12V |
| Power (W/pc) | 4.8 W/m, 24 W/roll |
| Available Color | White/Red/Green/Blue/Yellow |
| LED Type | 335 Side viewing LED |
| LED Qty | 60 led/m, 300 led/roll |

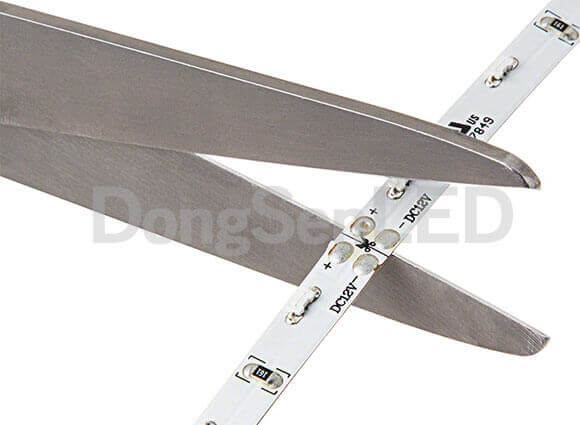

| Cuttable Unit | 50mm or 3 LED |
| Certification | CE&ROHS |
| Chip Brand | Epistar Chip from Taiwan |
| Viewing angle | 120 degree |
| Working Temperature | -40°C~60°C |
| Storage Temperature | -50°C~80°C |
| PCB | Double Layer, Color-White |
| IP Rate | IP20/IP65 |
| Dimension | 5000*08*02 mm |
| Span life | 50,000h |

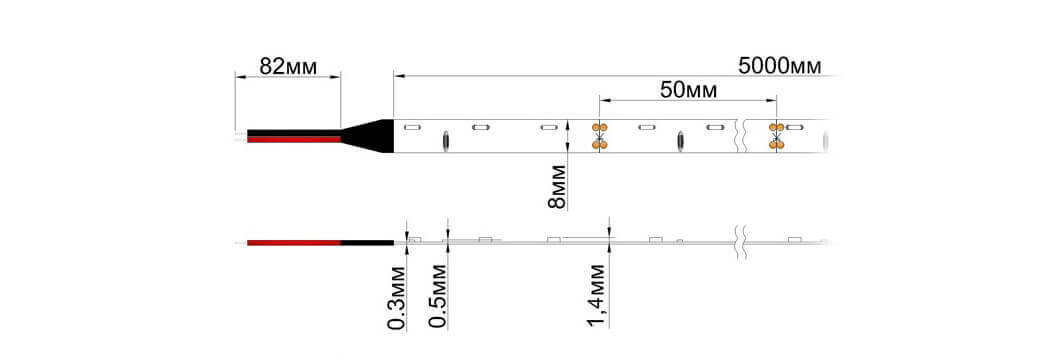

Dimension(mm):
Application:

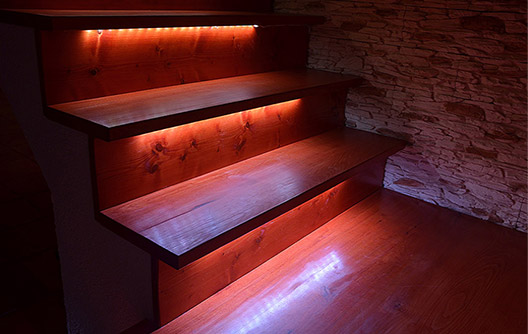

Decorative illumination of ceilings, niches, walls, stairs;
Backlit advertising boxes, letters and signs;

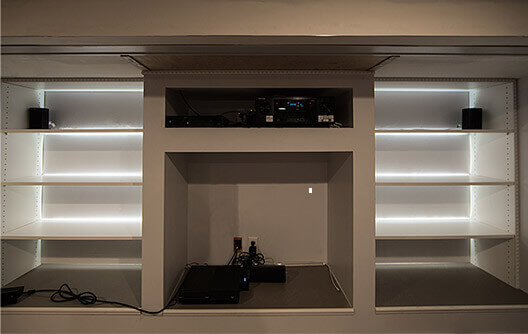

Highlighting cabinets and shelves;
Advertising lighting products.
