Home &gt; Products &gt; Flexible SMD LED Strip &gt; 3528 SMD Flexible LED Strip > 60led/m3528 flexible led strip light IP20 constant voltage TB08-60W35

18-3528 SMD Flexible LED Strip

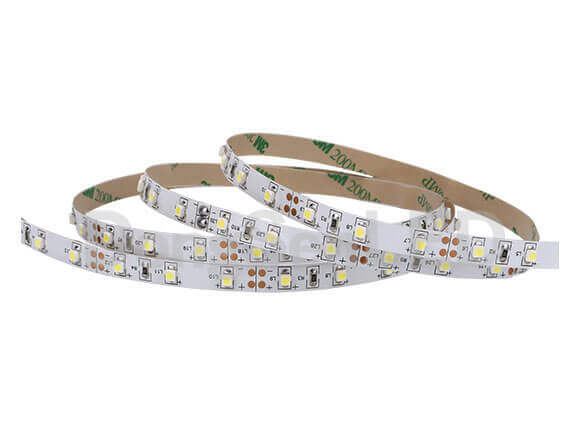

Model 60led/m3528 flexible led strip light IP20 constant voltage TB08-60W35

(P/N: TB08-60W35)

Feature:

Top 3528 led mounted, 7 lumen/led. 60 LED/m, 5 m/roll;

Double Layer PCB, white color, both 5mm and 8mm width PCB for your choice;

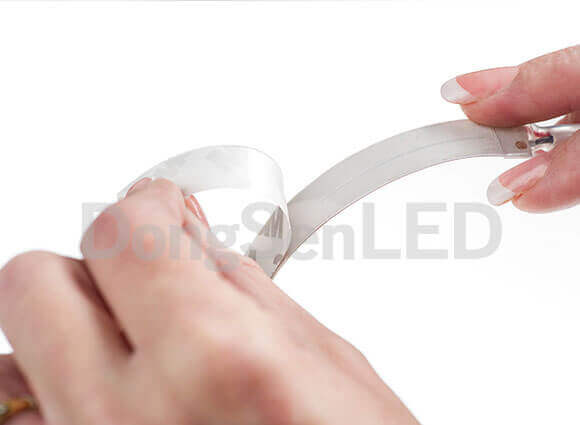

Excellent flexibility;

Perfect heat diffusion, the life of chip can be better guaranteed;

Slight voltage drop, Good light uniform for all roll;

Low Working voltage, DC12V&DC24V, safety;

Both the waterproof type and non waterproof type are available;

LED quantity & strip length can be customized.

Technical Parameters:

Parameter	Description
Voltage (V)	DC12V/ DC24V
Power (W)	4.8 W/m, 24 W/roll

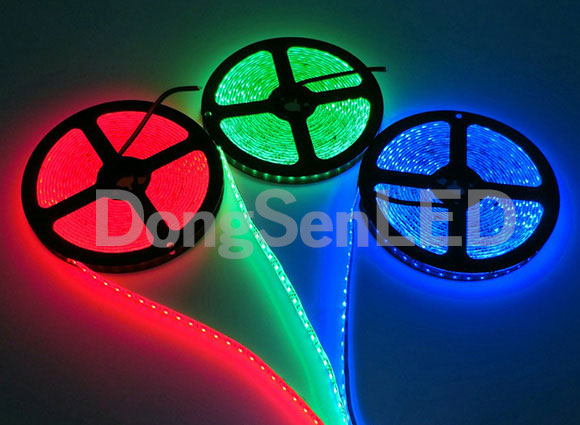

Available Color	White	Red	Green	Blue	Yellow
Lumen/m	420	126	195	52	84
LED Type	3528 SMD LED
LED Qty	60 led/m, 300 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree

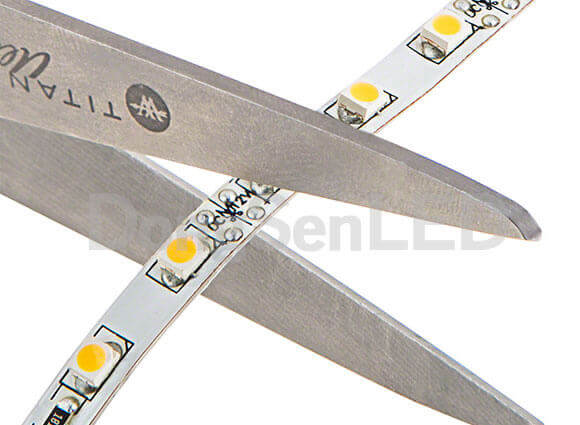

Cuttable Unit	50mm or 3 LED
Dimension	50000802 mm
IP Rate	IP20/IP65/ IP67/IP68
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
PCB	Double Layer, Color-White
Span life	50,000h
Certification	CE&ROHS
Part No.	TB08-60W35	TB08-60R35	TB08-60G35	TB08-60B35	TB08-60Y35

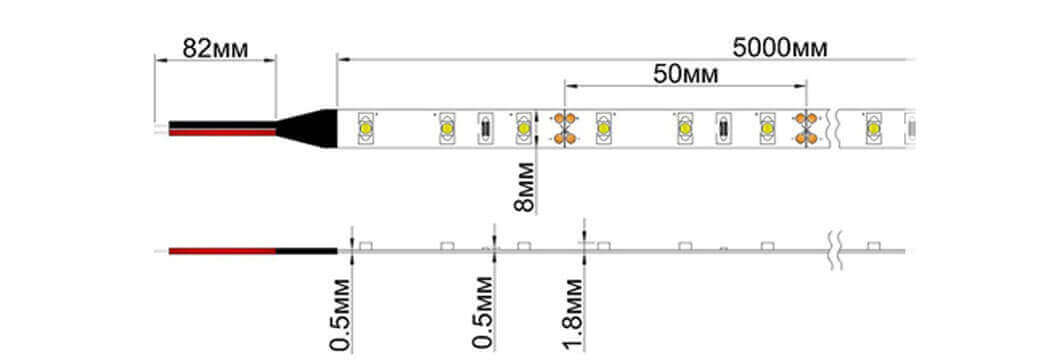

Dimension(mm):

Dimension

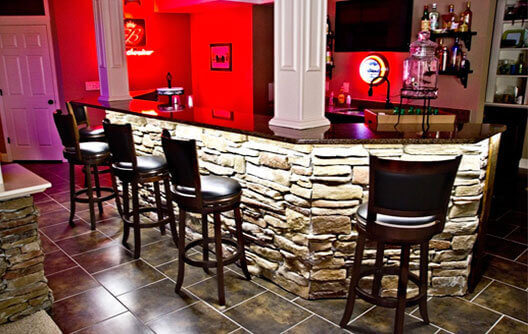

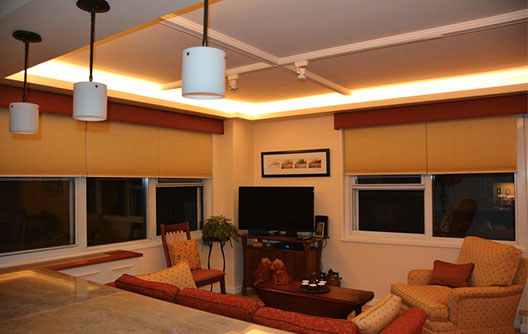

Application:

Cove lighting;

Architectural lights for canopy, corridor, window, archway;

Backlight or edge lighting for signage;

decoration for the hotel;

Path and contour marking;

Decorative lights for holiday, event, show, exhibition.
