Model RF single color led dimmer DS-RF-T1
(P/N: DS-RF-T1)
Inquiry NowFeature:
Adopt the most advanced PWM digital brightness-adjusting technology;
Adopt the RF wireless remote to control the brightness in the distance;
Extend the life tenure of LED and energy-saving;
Dedicated to adjust the brightness of LED lights.
Technical Parameters:
| Parameter | Description |
|---|---|
| Working temperature | -20-60℃ |
| Supply voltage | DC12V~24V |
| 0utput | 1 channels |
| External dimension | common anode |
| Packing size | L115*W56*H34 mm |
| Net weight | L121*W85*H46 mm |
| Gross weight | 110g |
| Static power consumption | 130g |
| Output current | <1W |
| Output power | ≤8A |
| Output power | 12V:＜96W, 24V:＜192W |
Direction for use
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

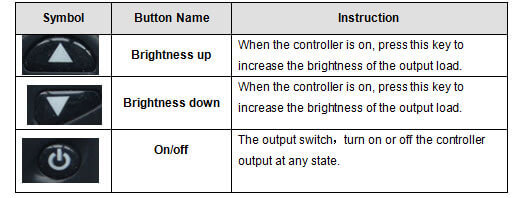

Adopt wireless control, each press, the light flash one time, its function as follows:

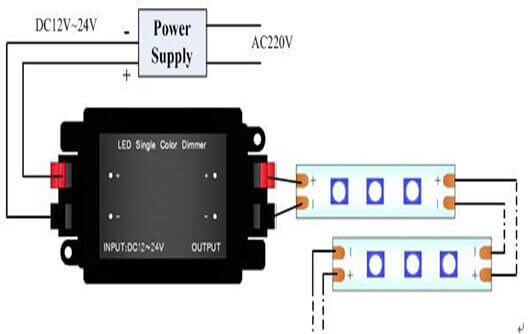

Application:
