Home > Products > LED Controller&LED Dimmer > LED Dimmer > Single color led dimmer DC12V 8A DS-T1
29-LED Dimmer

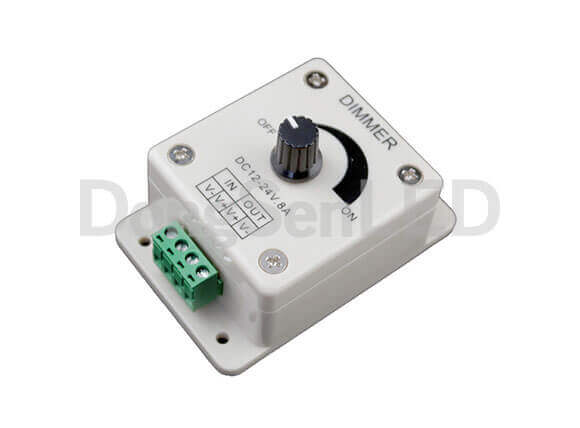

Model Single color led dimmer DC12V 8A DS-T1
(P/N: DS-T1)
Inquiry NowFeature:
Adopt the knob control manner;
According to actual needs, users can transfer the light to the appropriate brightness;
Output one channel, the max current is 8A;
3-year warranty.
Technical Parameters:
| Parameter | Description |
|---|---|
| Working temperature | -20-60℃ |
| Supply voltage | DC5V, 12V~24V optional |
| 0utput | 1 channel |
| External dimension | L89*W59*H35 mm |
| Packing size | L106*W64*H56 mm |
| Net weight | 80g |
| Gross weight | 90g |
| Static power consumption | ＜1W |
| Output current | ＜8A |
| Output power | 5V:＜40W,12V:＜96W,24V:＜192W |
Direction for use
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
Adopt rotary button, its function as follows:
Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest. Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.
