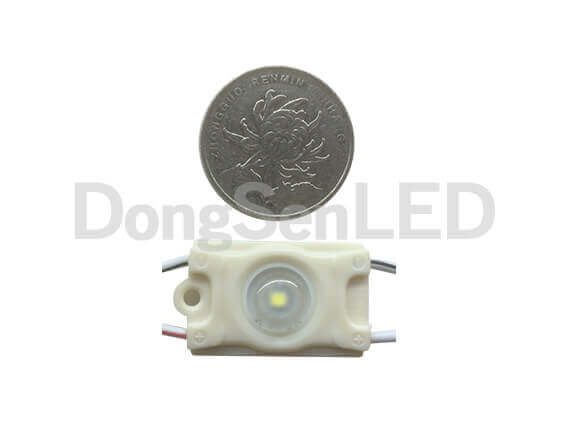

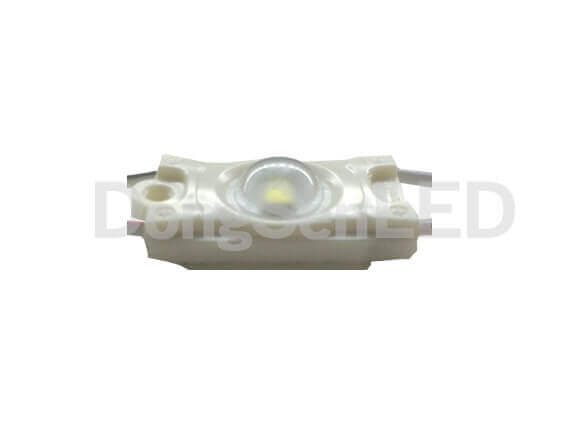

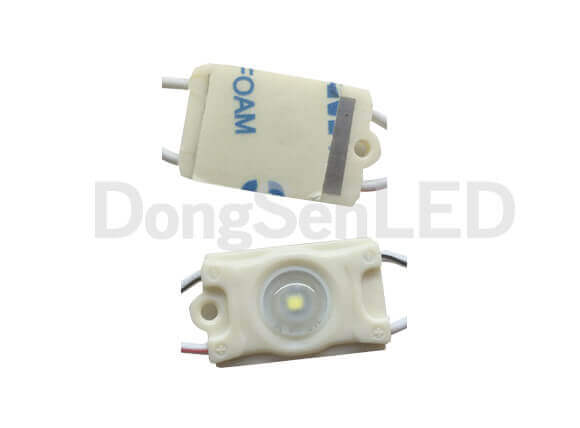

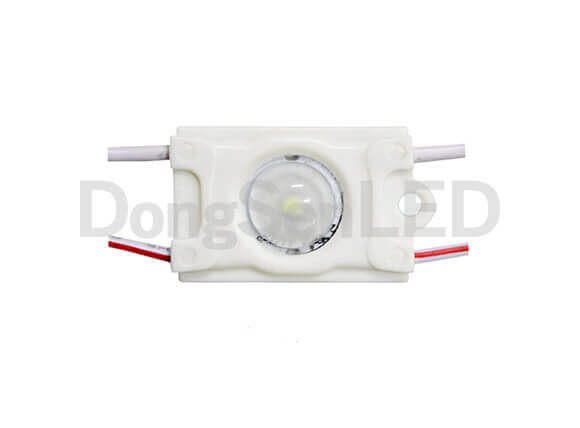

Model 1 led mini size 2835 led sign module 160 degree MS-1W28
(P/N: MS-1W28)
Inquiry NowFeature:
High efficiency 2835 LED, brightness up to 35 lumen/led, Long Life, Low encapsulation;
Optical Lense design, 160° degree viewing angle;
Constant Current Technology (CCT);
Exposed Aluminum PCB design, perfect heat dissipation;
Injection mold process, Waterproof rate: IP67;
Long life, Maintenance-free.
Suitble for Channal letter, signage and Lighting box backlight etc.
Technical Parameters:
| Parameter | Description | ||||
|---|---|---|---|---|---|
| Part No. | MS-1W28 | MS-1R28 | MS-1G28 | MS-1B28 | MS-1Y28 |
| Voltage (V) | DC12V | ||||
| Power (W) | 0.36 W | ||||
| Available Color | White | Red | Green | Blue | Yellow |
| Lumen/pc | 35 | ||||
| Color Temperature Wave length (k/nm) | 2700-11,000k | 620-625nm | 515-525nm | 465-475nm | 585-595nm |
| LED Type | 2835 SMD LED | ||||
| LED Qty | 1 led/pc | ||||
| Chip Brand | Epistar Chip from Taiwan | ||||
| Viewing angle | 160 degree | ||||
| Shell | ABS+Optical Lens | ||||
| Driving Method | Constant Current Drive | ||||
| Standard QTY per Chain(pcs) | 50 pcs | ||||
| Working Temperature | -25°C~60°C | ||||
| Dimension | 28*16*6.8 mm | ||||
| PCB | Aluminum | ||||
| IP Rate | IP67 | ||||
| Span life | 50,000h | ||||
| Certification | CE&ROHS | ||||
| Warranty | 5 Years | ||||

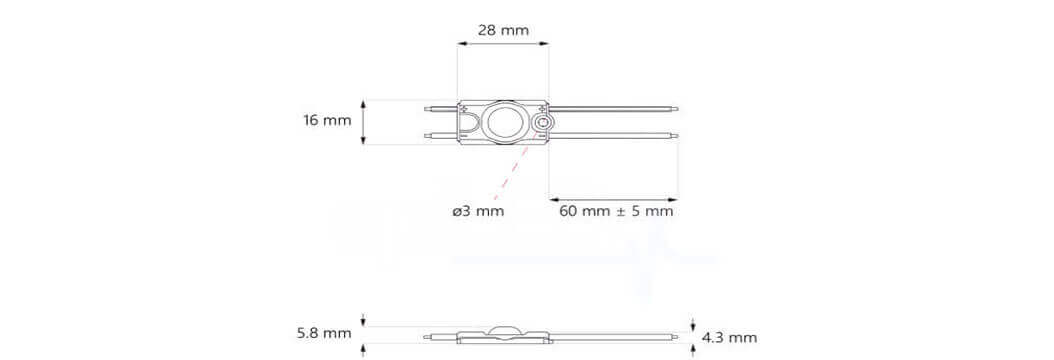

Dimension(mm):

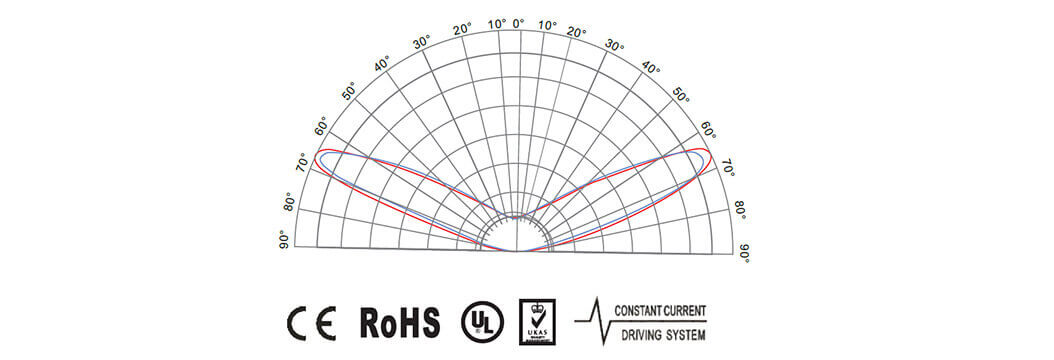

LED Module Light distribution:

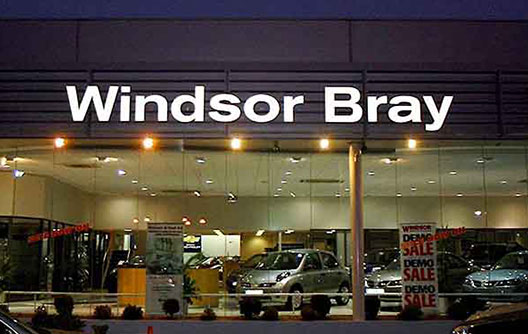

Application:
Ideal for 30-80mm depth LED signage and channel letter;
Lighting box and Acrylic letter backlighting;
Chrismas lighting.
