49-Economic LED Module

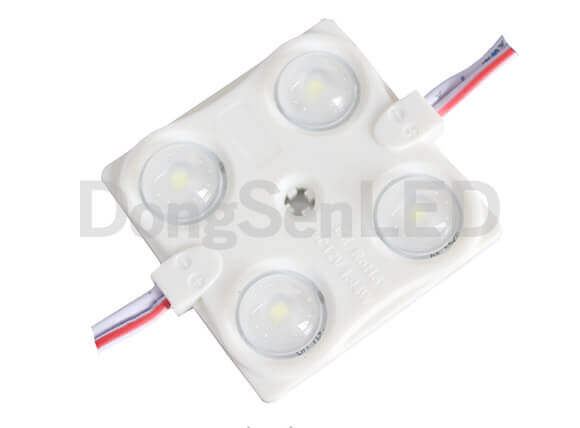

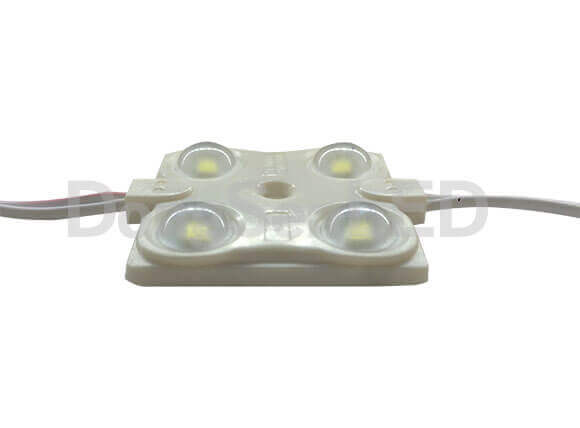

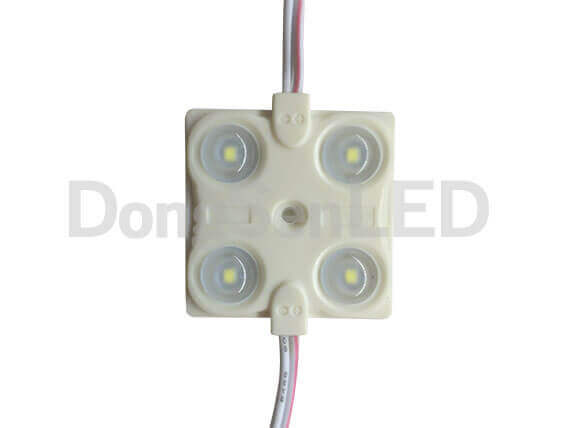

Model High power 2835 led sign module light 160° beam angle MS-4W28

(P/N: MS-4W28)

Inquiry Now

Feature:

High efficency 2835 LED, brightness up to 35lumen/led, Long Life, Low encapsulation;

160° bat wing lens design, wider viewing angle;

Constant Current Technology (CCT), each module cuttable;

Exposed Aluminum PCB design, perfect heat dissipation;

Excellent color consistency, Strictly one bin led for each order;

Injection mold process, Waterproof rate: IP67;

CE&ROHS certificated, 5 years warranty;

Adhesive strong 3M tape, easy installation.

Technical Parameters:

Parameter Description
Part No. MS-4W28 MS-4R28 MS-4G28 MS-4B28 MS-4Y28
Voltage (V) DC12V
Power (W) 1.44 W
Available Color White Red Green Blue Yellow
Lumen/pc 140
Color Temperature Wave length (k/nm) 2700-11,000k 620-625nm 515-525nm 465-475nm 585-595nm
LED Type 2835 SMD LED
LED Qty 4 led/pc
Chip Brand Epistar Chip from Taiwan
Viewing angle 160 degree
Shell ABS+Optical Lens
Driving Method Constant Current Drive
Standard QTY per Chain(pcs) 20 pcs
Working Temperature -25°C~60°C
Dimension 37*37*6.8 mm
PCB Aluminum
IP Rate IP67
Span life 50,000h
Certification CE&ROHS
Warranty 3 Years

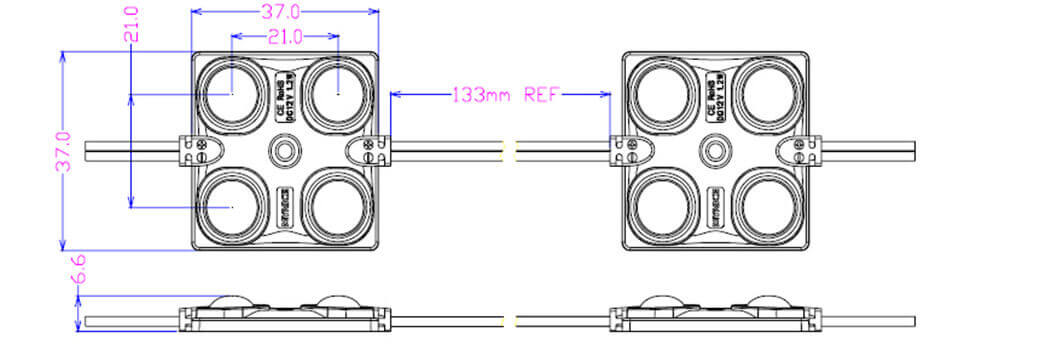

Dimension(mm):

Dimension

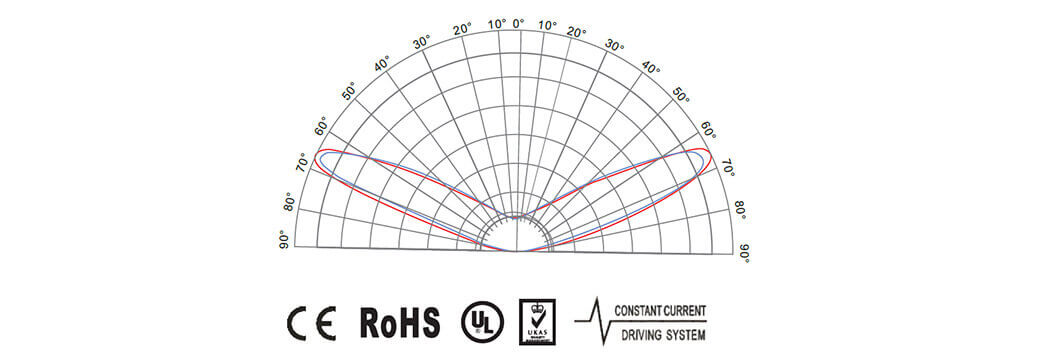

LED Module Light distribution :

Dimension

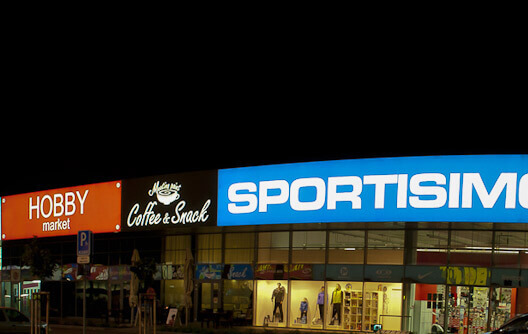

Application:

Ideal for 100-250mm depth Illuminate Signage and Lighting box;

Logo, Glow sign board backlighting;

LED Channel letter and Acrylic letter.
