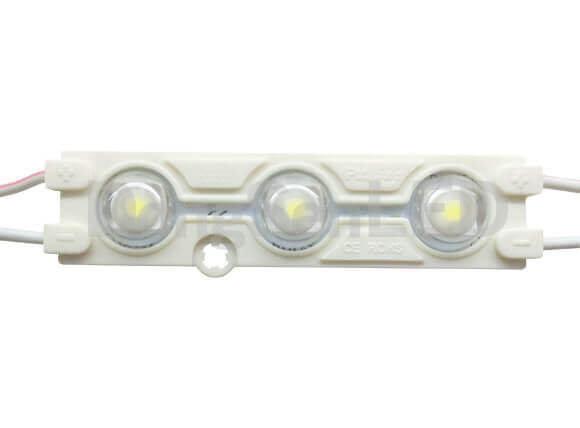

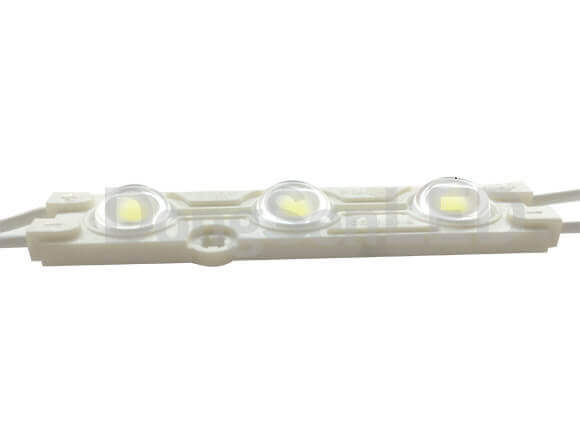

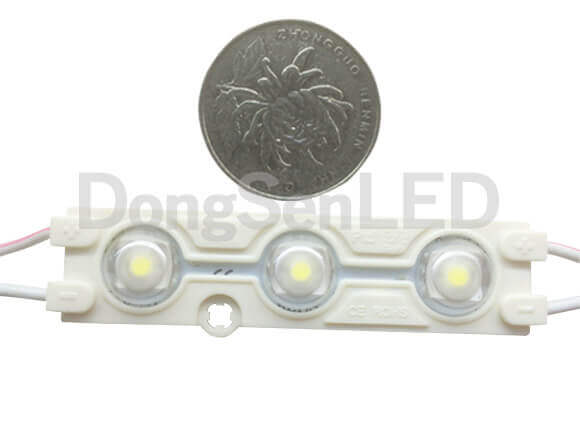

LED Module-Injection LED Module With Lens

Model Constant current 5050 inject led sign module with lens 0.72w/pc MS-3W50

(P/N: MS-3W50)

98% transmittance lens, Wider view angle 160°;

Constant Current Driving method, 50 pcs per Chain;

Adopt top 5050 SMD led, 22-24 lumen per single led, Original Epistar chip from Taiwan;

Excellent color uniformity, Strict only one BIN led for every order;

Injection molding process，IP Rate:IP 67, waterproof;

Exposed Aluminum pcb design, perfect heat dissipation;

CE&ROHS Certification, 3 year Warranty;

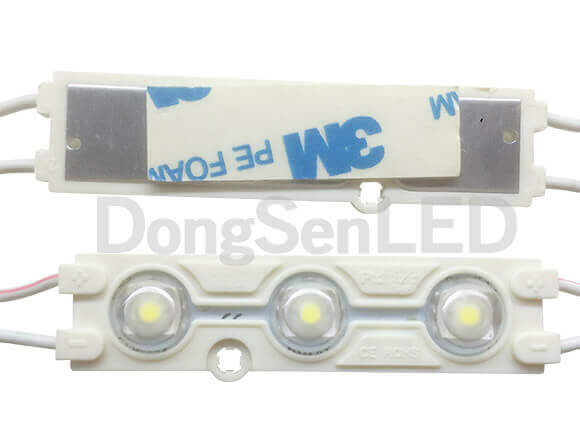

Adhesive strong 3M VHB tape, easy installation.

Parameter	Description
Part No.	MS-3W50	MS-3R50	MS-3G50	MS-3B50	MS-3Y50
Voltage (V)	DC12V
Power (W)	0.72 W
Available Color	White	Red	Green	Blue	Yellow
Lumen/pc	66-72	19.5	37.5	12	16
Color Temperature Wave length (k/nm)	2700-9,000k	620-625nm	515-525nm	465-475nm	585-595nm
LED Type	5050 SMD LED
LED Qty	3 led/pc
Chip Brand	Epistar Chip from Taiwan

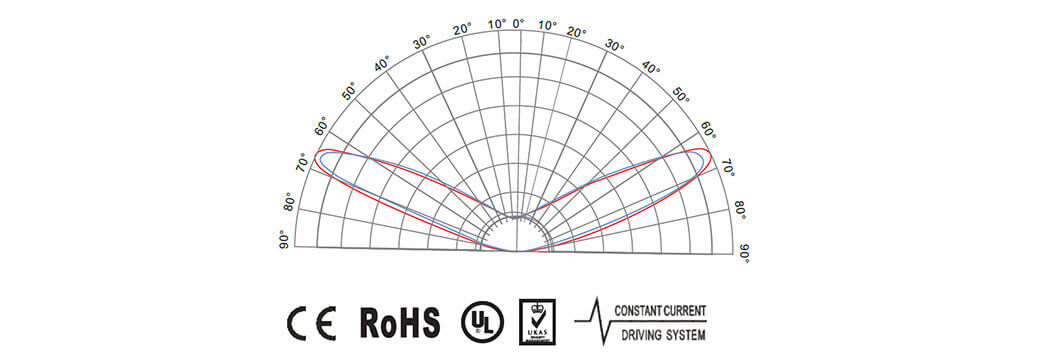

Viewing angle	160 degree
Shell	ABS+Optical Lens
Driving Method	Constant Current Drive
Standard QTY per Chain(pcs)	40 pcs
Working Temperature	-25°C~60°C

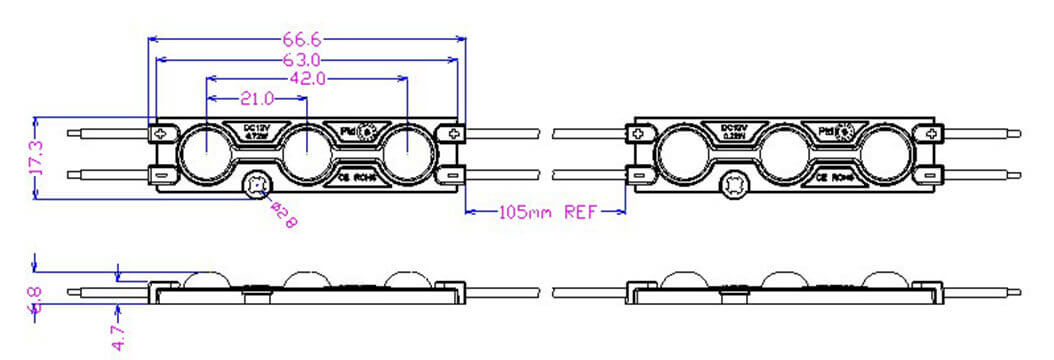

Dimension	68166.8 mm
PCB	Aluminum
IP Rate	IP67
Span life	50,000h
Certification	CE&ROHS
Warranty	3 Years
