44-Mini LED Module

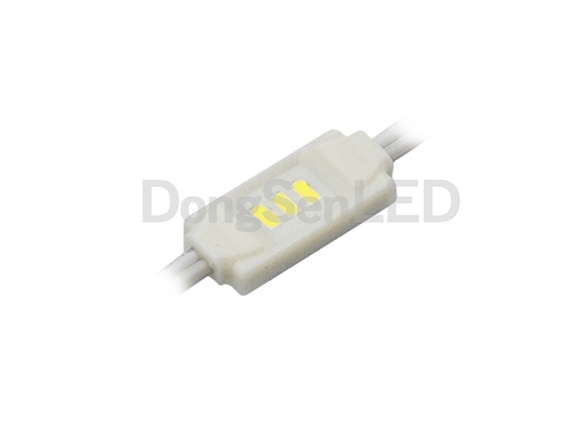

Model Mini LED Module (P/N: MA-3W30S)
(P/N: MA-3W30S)
Inquiry NowFeature:

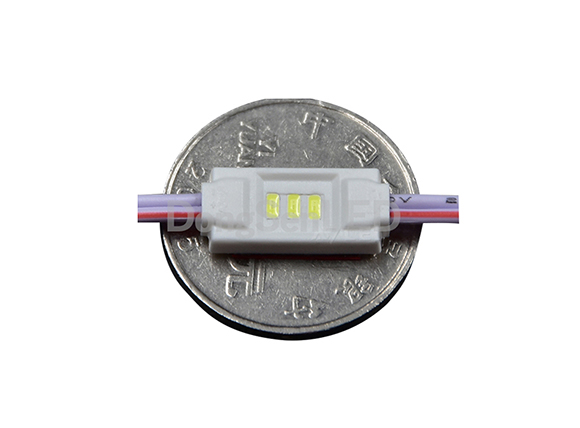

1. Mini Size designed for small letters.
2. High efficiency, over 100lm/W.
3. High Color consistency (MacAdam 3).
4. Constant Voltage tech, 20 pcs per a chain.
5. Injection molding process, IP65.
6. Aluminum PCB design, Perfect heat dissipation.
Technical Parameters:
| Parameter | Description | ||
|---|---|---|---|
| Part No. | MA-3W30S | ||
| Voltage (V) | DC12V | ||
| Power (W/pc) | 0.3 W | ||
| Available Color | White / Red / Green / Blue / Yellow | ||
| Lumen/pc | 30-32 LM | ||
| CRI | >80 | ||
|
Color Temperature Wave length (k/nm) |
2700-11,000k/ 620-625nm/ 515-525nm/ 465-475nm/ 585-595nm | ||
| LED Type | 3014 SMD | ||
| LED Qty | 3led/pc | ||
| Chip Brand | Epistar | ||
| Viewing angle | 120 degree | ||
| Shell | Fire proof ABS | ||
| Driving Method | Constant Voltage Drive | ||
| Standard QTY per Chain(pcs) | 20 pcs | ||
| Working Temperature | -25°C~60°C | ||
| Dimension | 18*8*3 mm | ||
| IP Rate | IP 65 | ||
| Span life | 50,000h | ||
| Certification | CE&ROHS | ||
| Warranty | 3 Years | ||

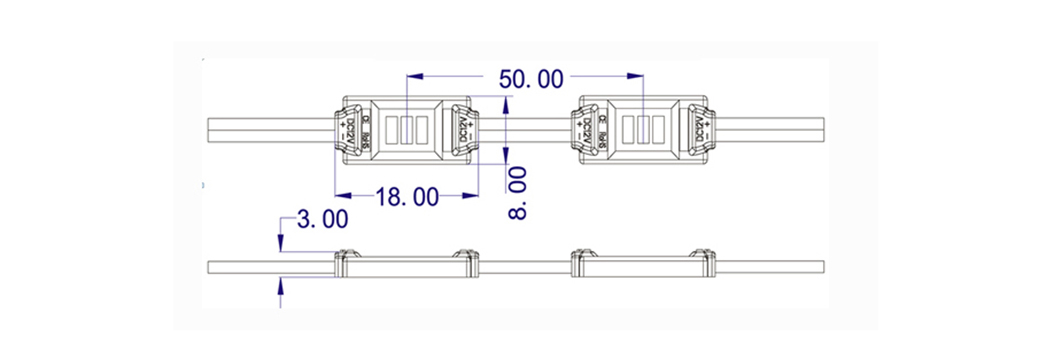

Dimension(mm):

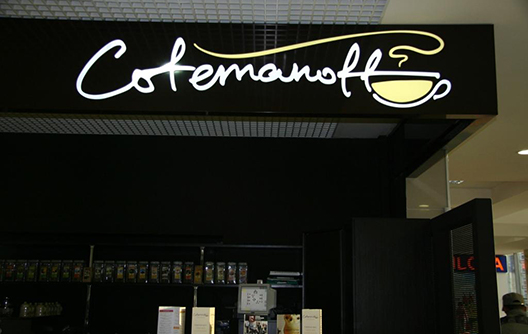

Application:
Best solution for channel letters & acrylic letters from 25mm to 60mm (1 to 2.4 inch)
