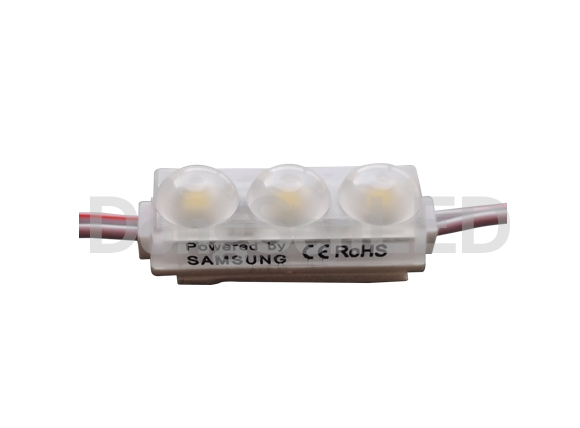

Model SAMSUNG Mini 3 LED Module 0.48W P/N: MU-3W28M
(P/N: MU-3W28M)
Inquiry NowFeature:
1. Lit by SAMSUNG 2835 led.
2. Small size with high brightness.
3. Perfect for small letters and narrow shaped objects.
4. High Color consistency (MacAdam 3), Each family one bin.
5. 50 pcs per chain, Easy installation.
6. Light decay < 30% after 50,000 hrs.
7. 5 years Warranty.
Technical Parameters:
| Parameter | Description | ||||||
|---|---|---|---|---|---|---|---|
| Part No. | MU-3W28M | ||||||
| Voltage (V) | DC12V | ||||||
| Power (W) | 0.48 W | ||||||
| Current | 40mA | ||||||
| Light Output per module | 45lm | ||||||
| CRI | >80 | ||||||
| Color | WW | NW | PW | CW | Red | Green | Blue |
| Color Temperature/Wave length | 3000k | 4000k | 6500k | 10000k | 620-630nm | 520-530nm | 460-470nm |
| LED Type | 2835 SMD | ||||||
| LED Qty | 3 LED/pc | ||||||
| Chip Brand | SAMSUNG | ||||||
| Beam Angle | 160°degree | ||||||
| Dimmable | Yes | ||||||
| Demension(L x W x D) | 30*10*8mm | ||||||
| Cable Length | 50 ± 5 mm | ||||||
| Chain Length | 3.8 m | ||||||
| No. of module per Chain | 50pcs | ||||||
| Operating temperature | -25°C~55°C | ||||||
| Life Span | 50,000hrs | ||||||
| IP Rate | IP68 | ||||||
| Certification | CE and RoHS compliant | ||||||
| Warranty | 5 Years | ||||||
Packing Infomation:
| Chain | Bag | Box | |||||
|---|---|---|---|---|---|---|---|
| Quantity | 50pcs | 200 pcs | 8000 pcs | ||||
| Gross Weight | 0.156kg | 0.625kg | 25.8kg | ||||
| Carton Szie | 52*37*26cm | ||||||

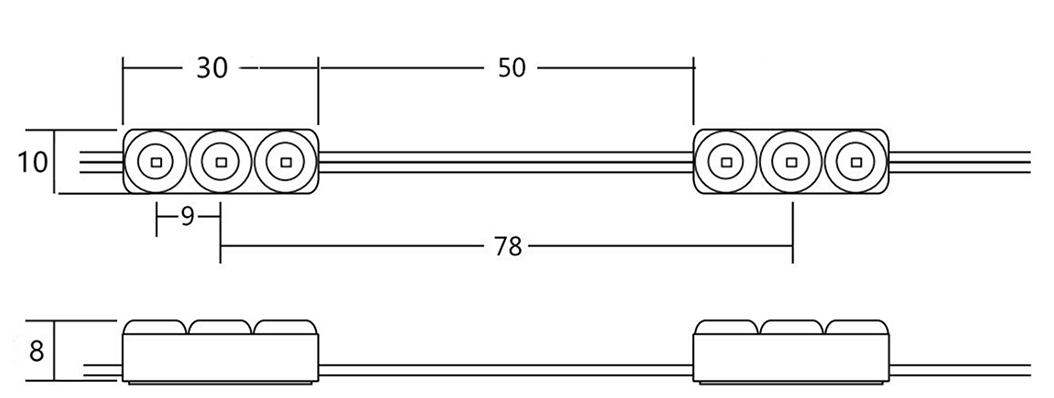

Dimension(mm) :

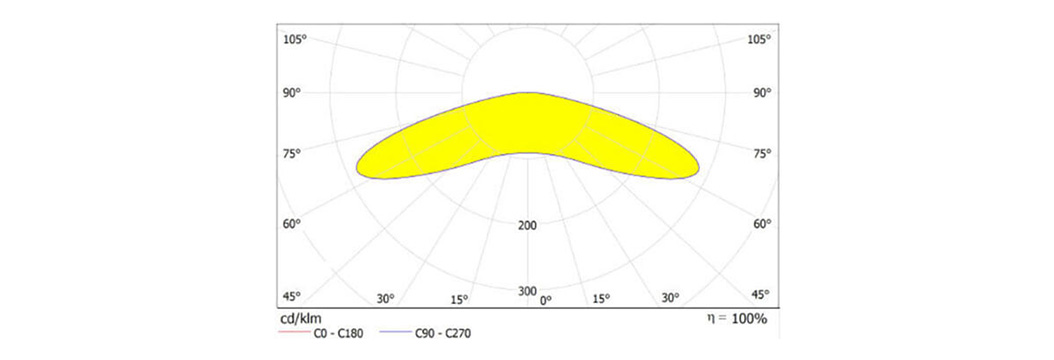

LED Module Light distribution:

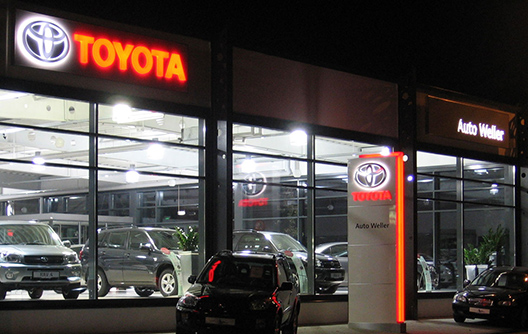

Application:
1. Small letter and slim light box.
2. Recommend dept: 30-90mm.
