Home > Products > LED Module > Prism lens LED Module 170° > Backlit led module 2led,1W,White,Lumileds SMD,120lm/w,IP67
50-Prism lens LED Module 170°

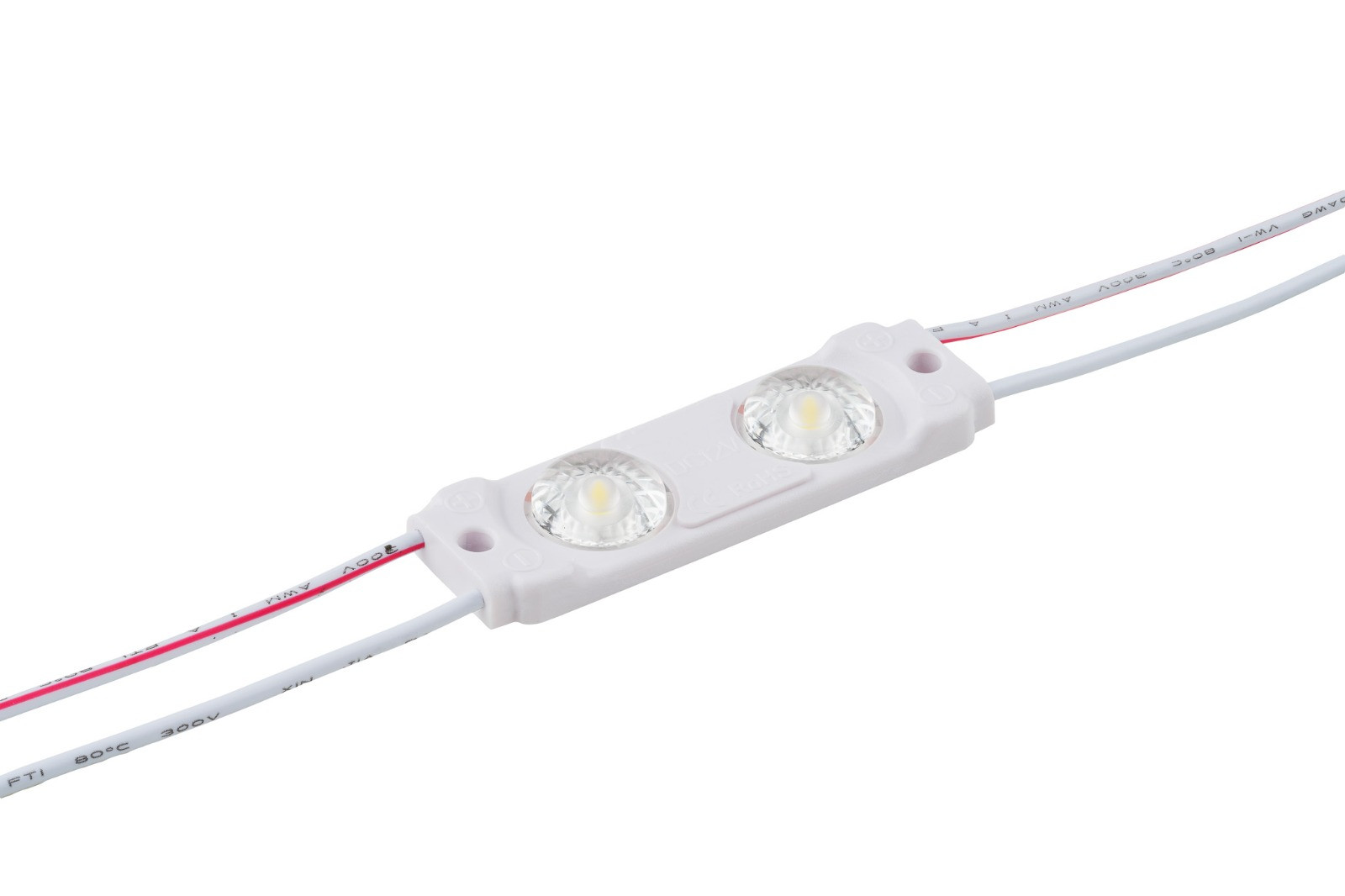

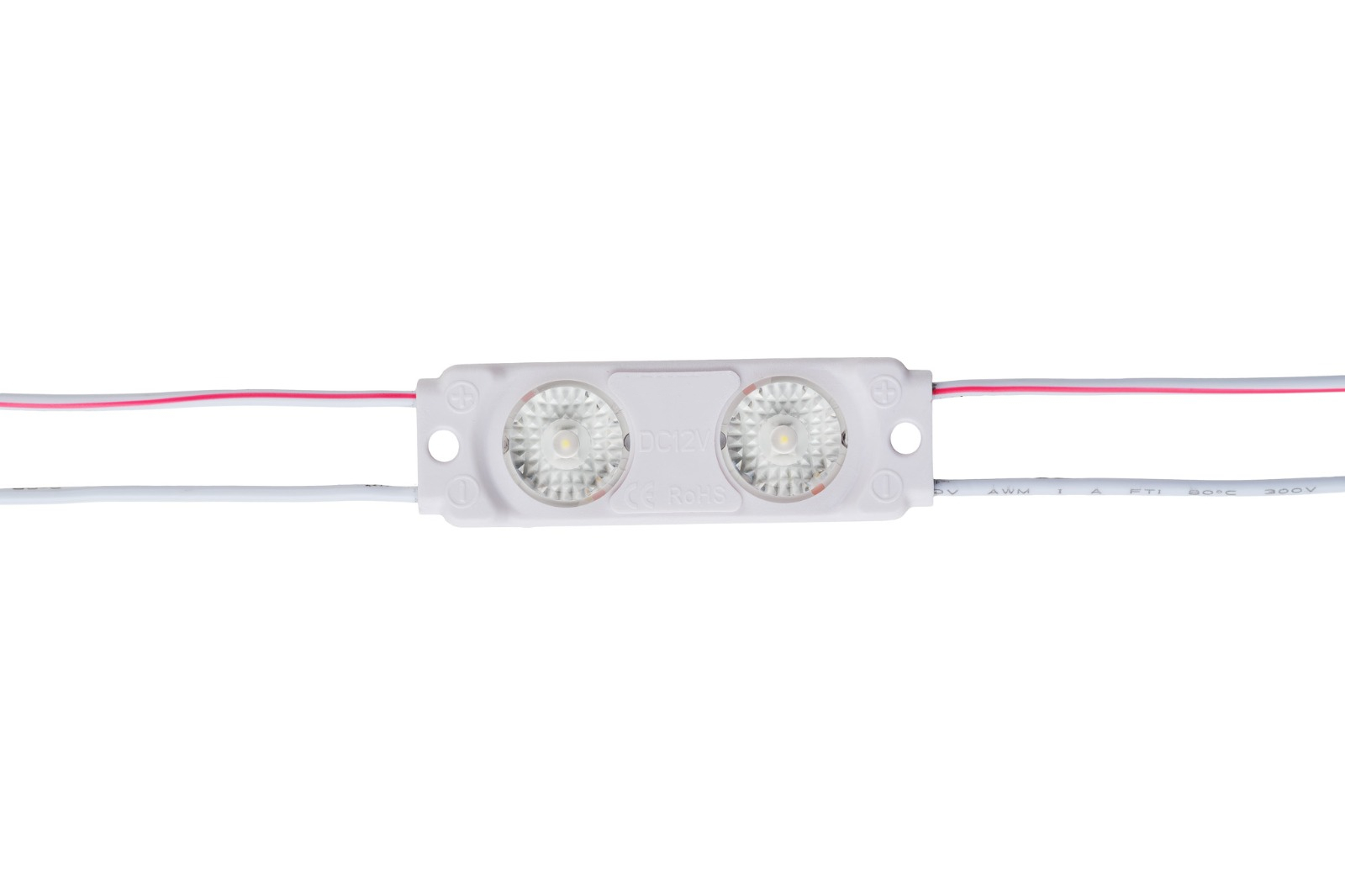

Model Backlit led module 2led,1W,White,Lumileds SMD,120lm/w,IP67
(P/N:MB-2X28)
Inquiry Now Feature:
• Lit by Lumileds 2835 SMD,
• Lumen efficiency up to 120 lm/W
• Prims lens, 170°beam angle
• 3 MacAdam Ellipse each bin
• LM80 50,000 hrs life time
• IP67 protection class

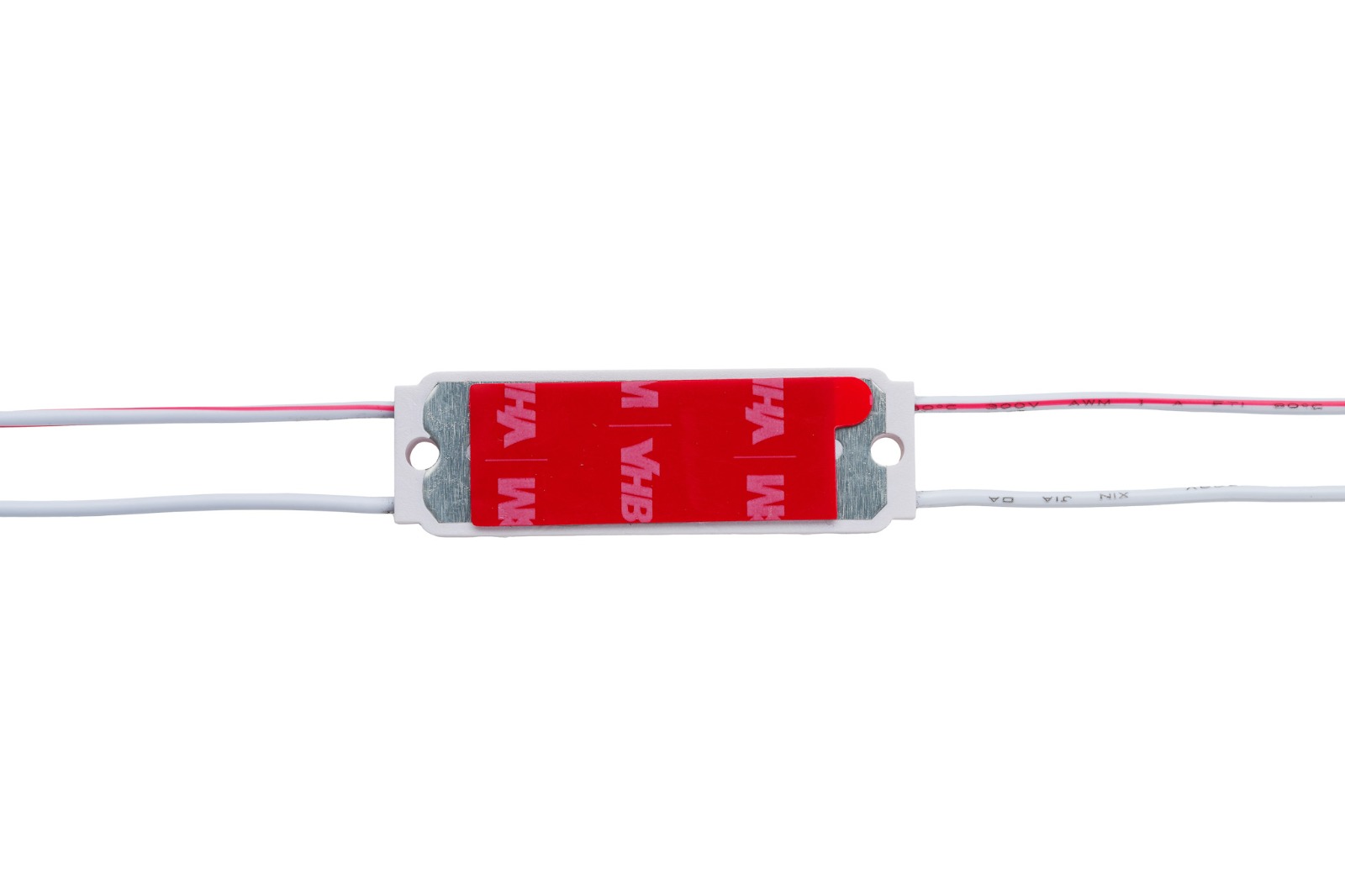

• Easy tear finger-lift 3M VHB tape for fast installation
• 5 years Warranty
• Lit by Lumileds 2835 SMD,
• Lumen efficiency up to 120 lm/W
• Prims lens, 170°beam angle
• 3 MacAdam Ellipse each bin
• LM80 50,000 hrs life time
• IP67 protection class
• Easy tear finger-lift 3M VHB tape for fast installation
• 5 years Warranty

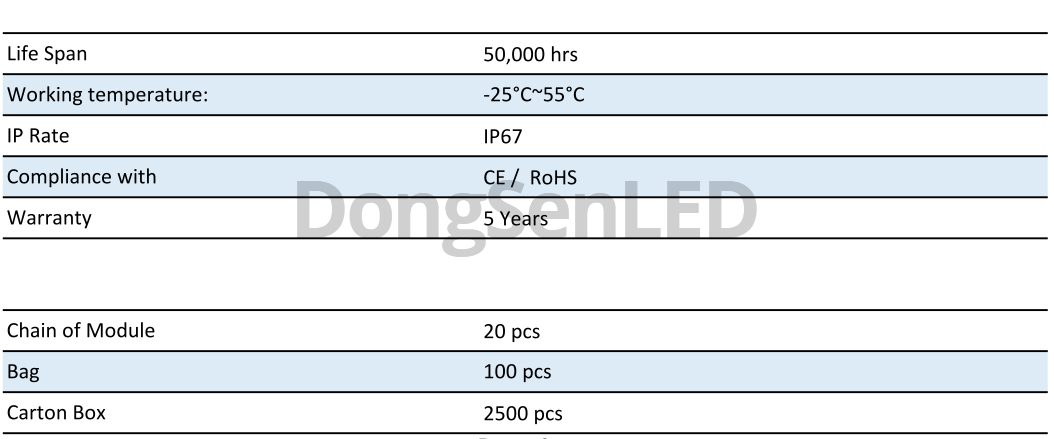

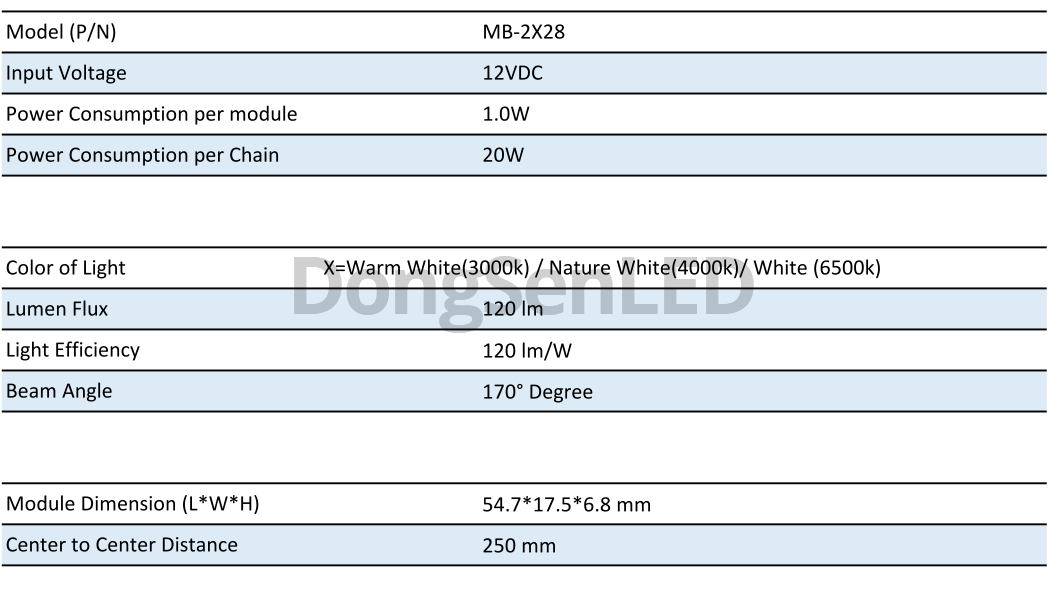

TECHNICAL PARAMETERS:

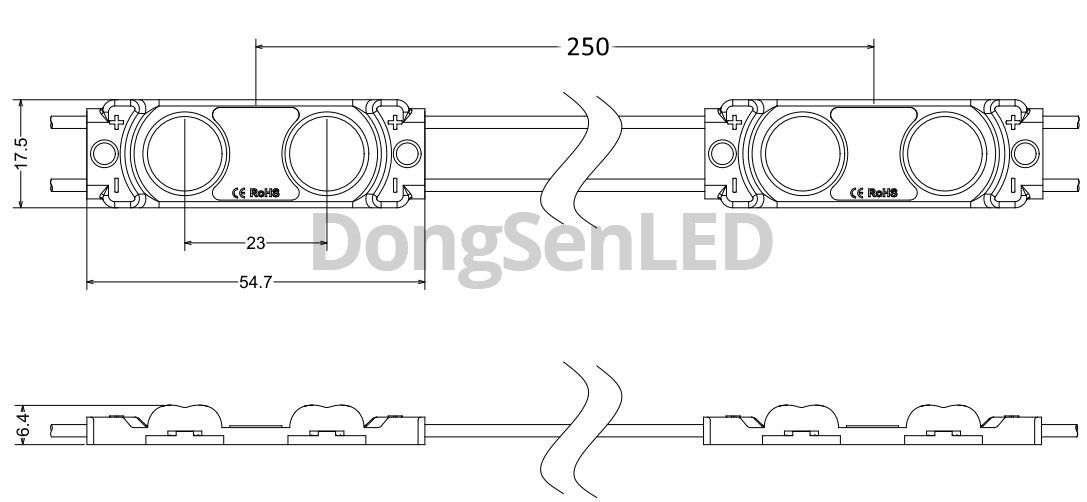

Dimension:

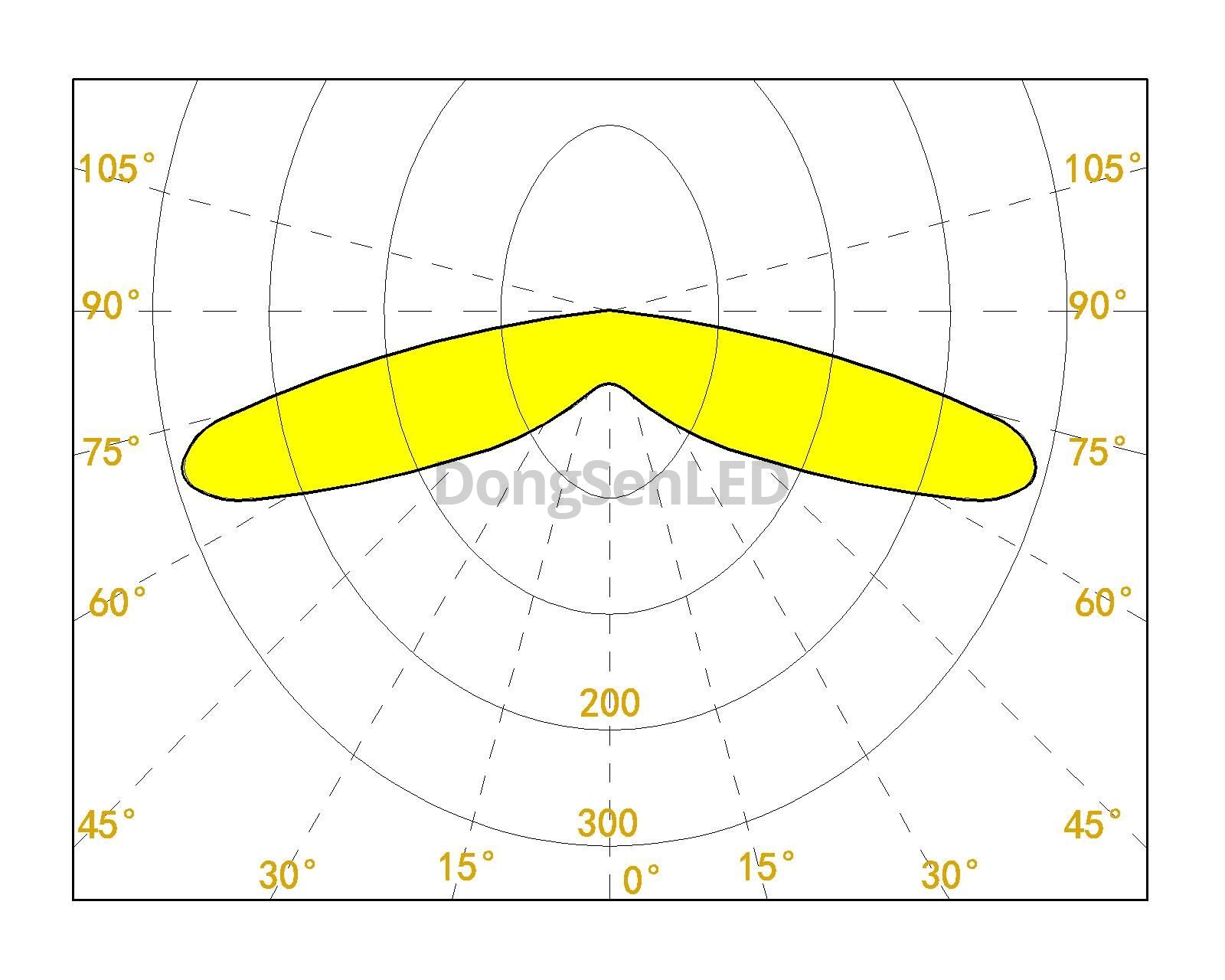

Light Distribution:

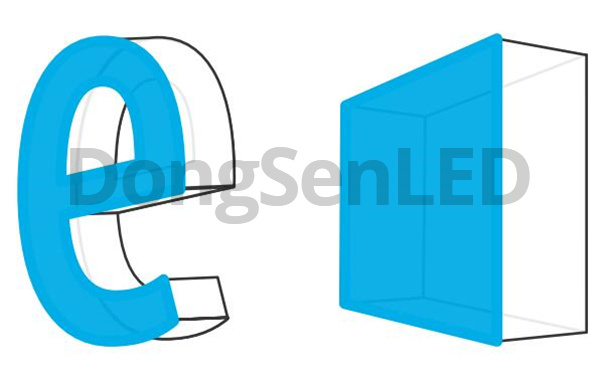

Application:
• Medium size Channel letters illumination
• Back light single side lighting box
• Recommended depth 60– 150 mm
