Home > Products > LED Module > Prism lens LED Module 170° > 3led module wide angle 1.5W, 180lm, nature white,4000k
50-Prism lens LED Module 170°

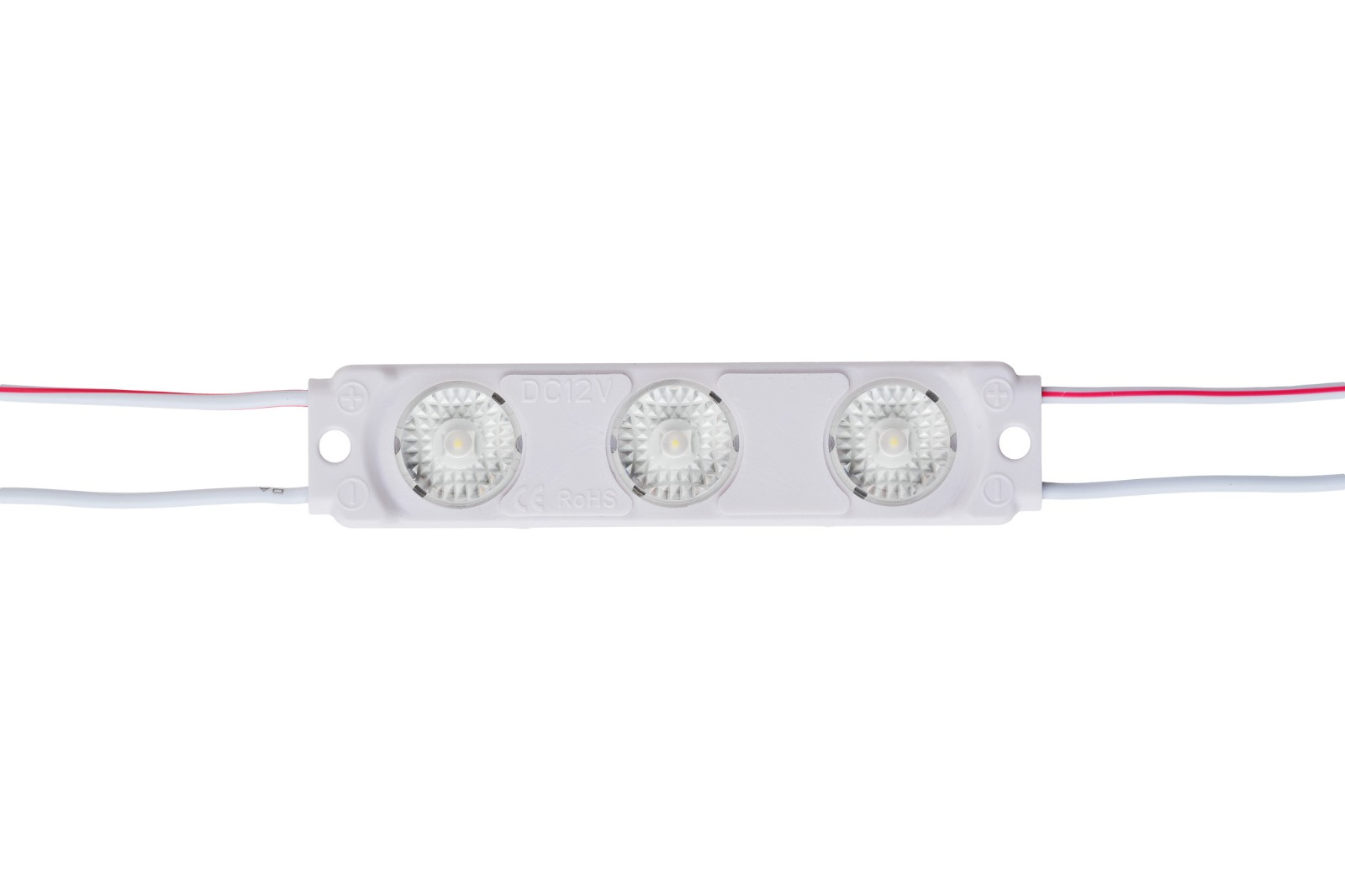

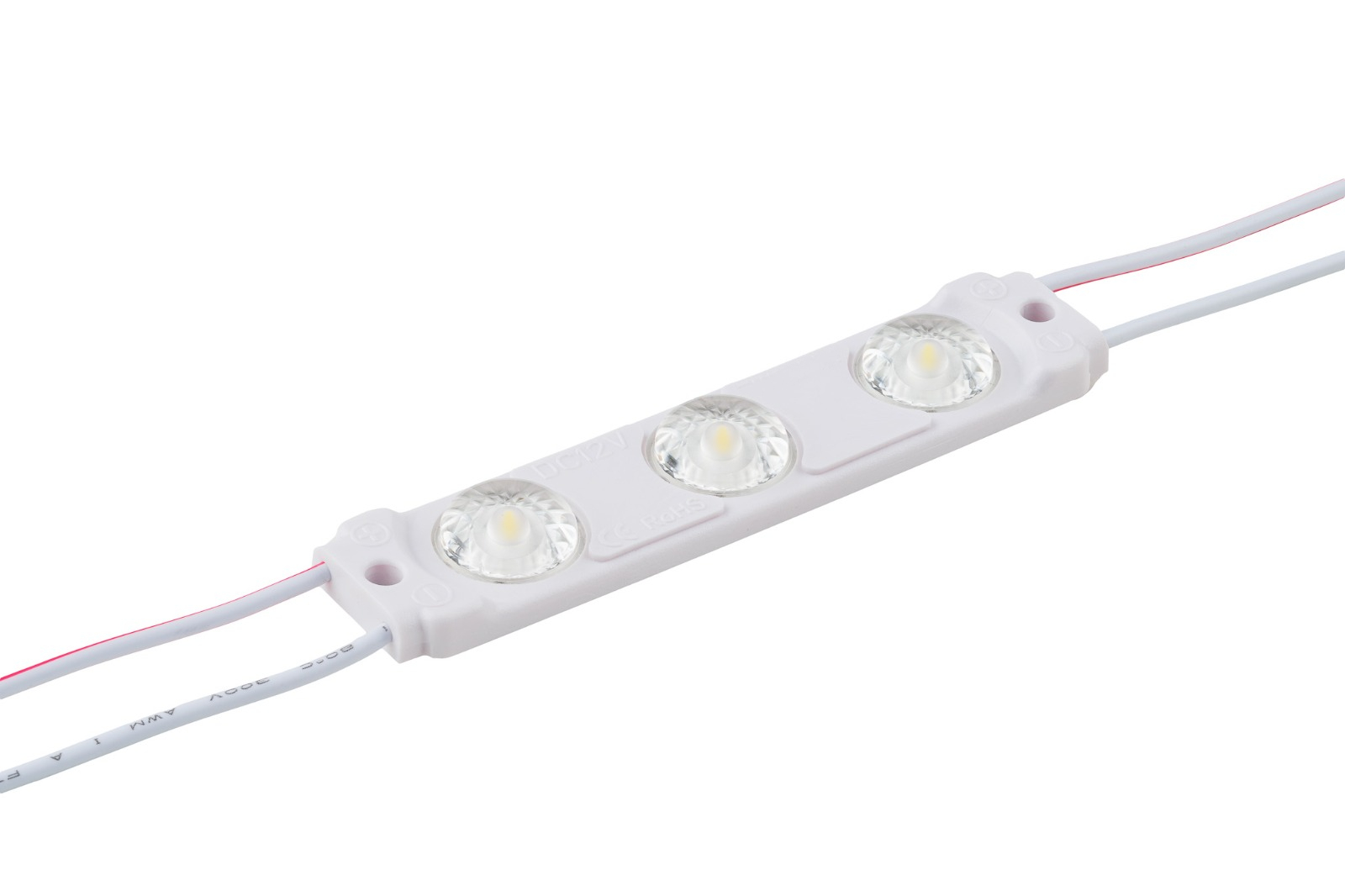

Model 3led module wide angle 1.5W, 180lm, nature white,4000k
(P/N:MB-3X28)
Inquiry Now Feature:
• Lit by Lumileds 2835 SMD,
• Lumen efficiency up to 120 lm/W
• Prims lens, 170°beam angle
• 3 MacAdam Ellipse each bin
• LM80 50,000 hrs life time
• IP67 protection class

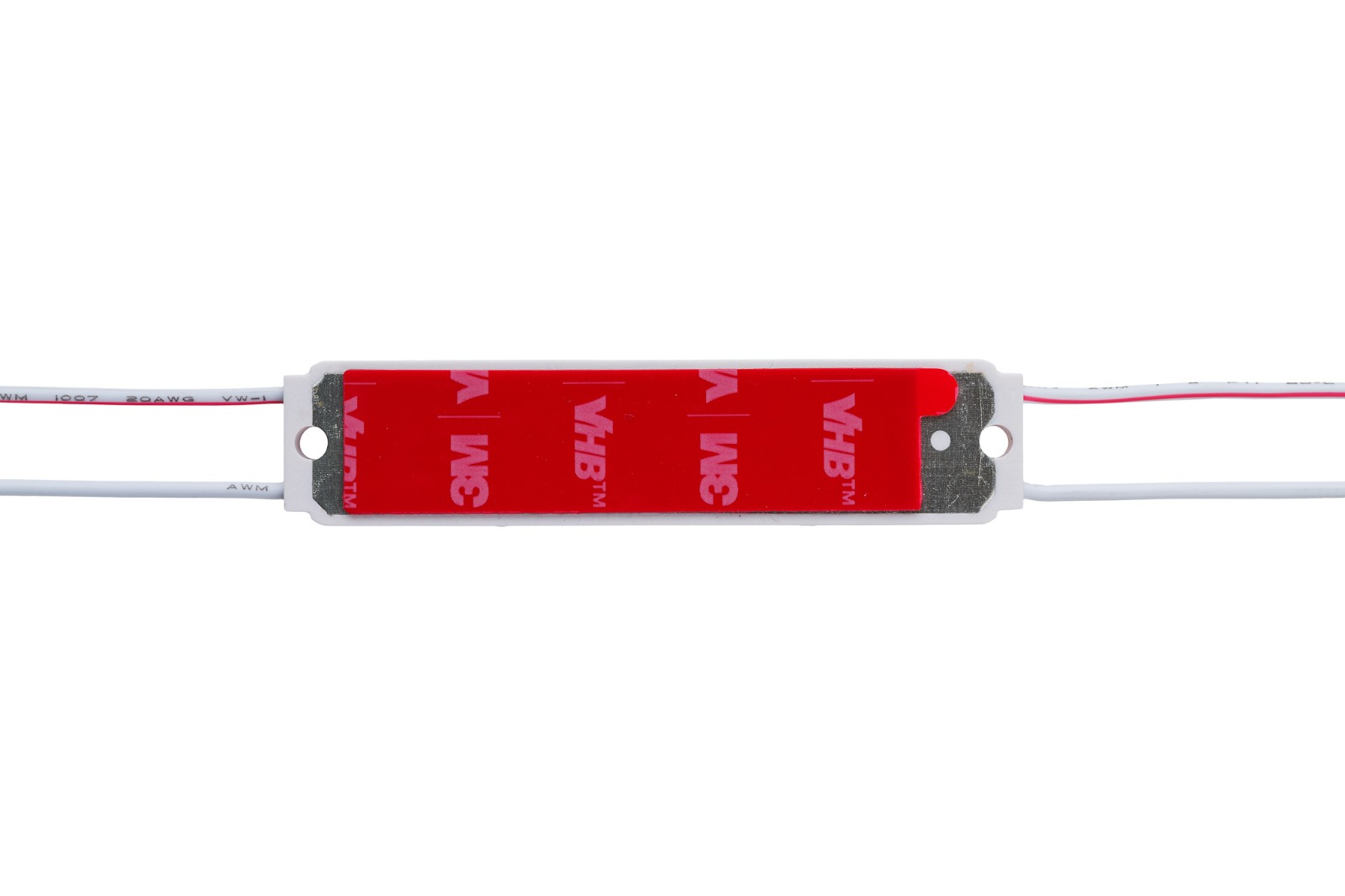

• Easy tear finger-lift 3M VHB tape for fast installation
• 5 years Warranty
• Lit by Lumileds 2835 SMD,
• Lumen efficiency up to 120 lm/W
• Prims lens, 170°beam angle
• 3 MacAdam Ellipse each bin
• LM80 50,000 hrs life time
• IP67 protection class
• Easy tear finger-lift 3M VHB tape for fast installation
• 5 years Warranty

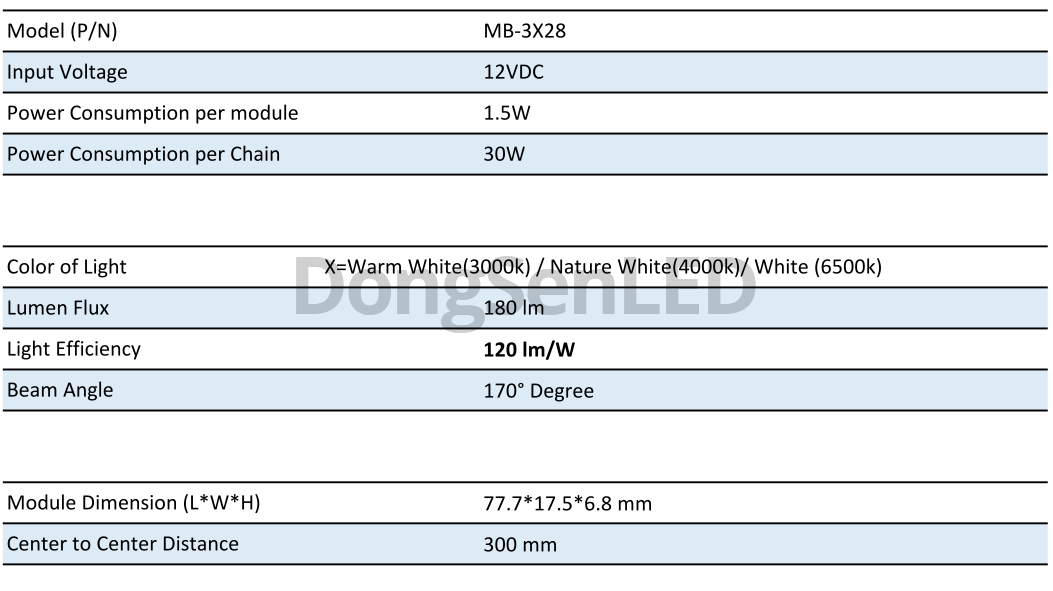

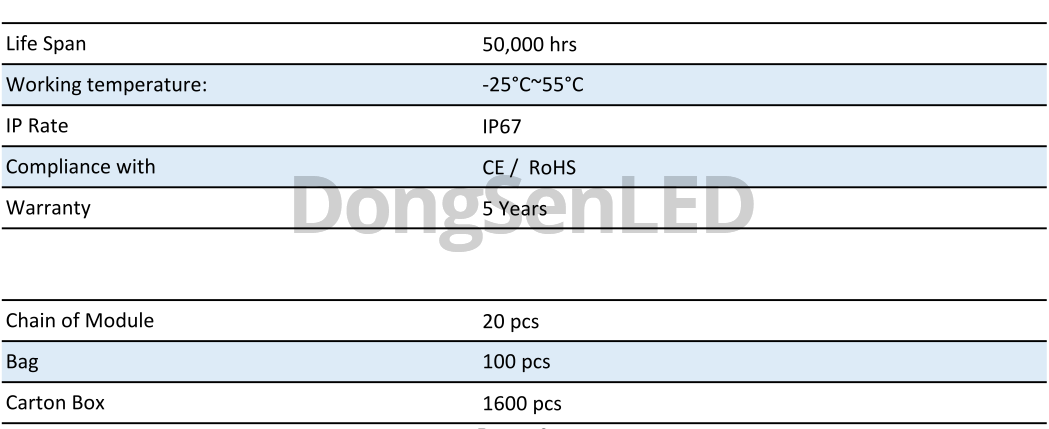

TECHNICAL PARAMETERS:

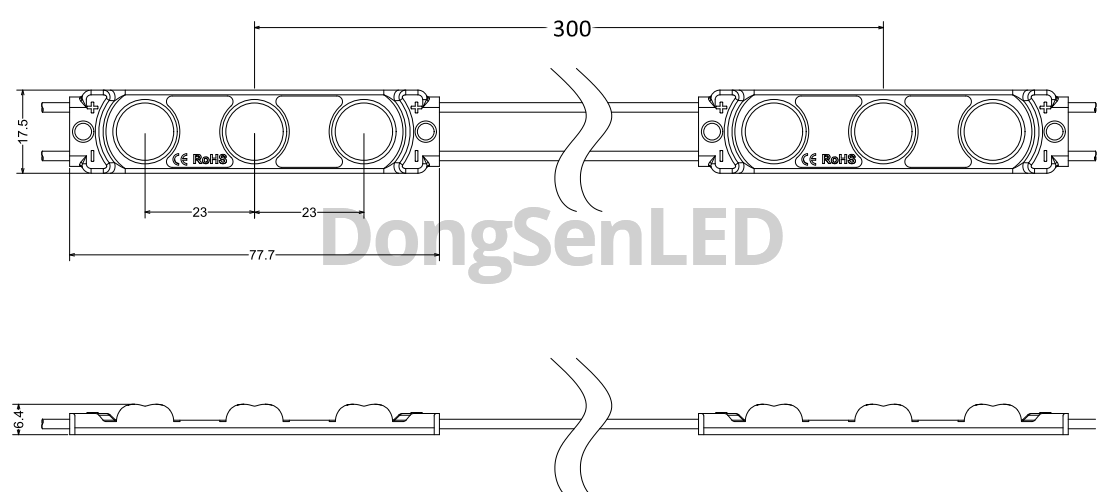

Dimension:

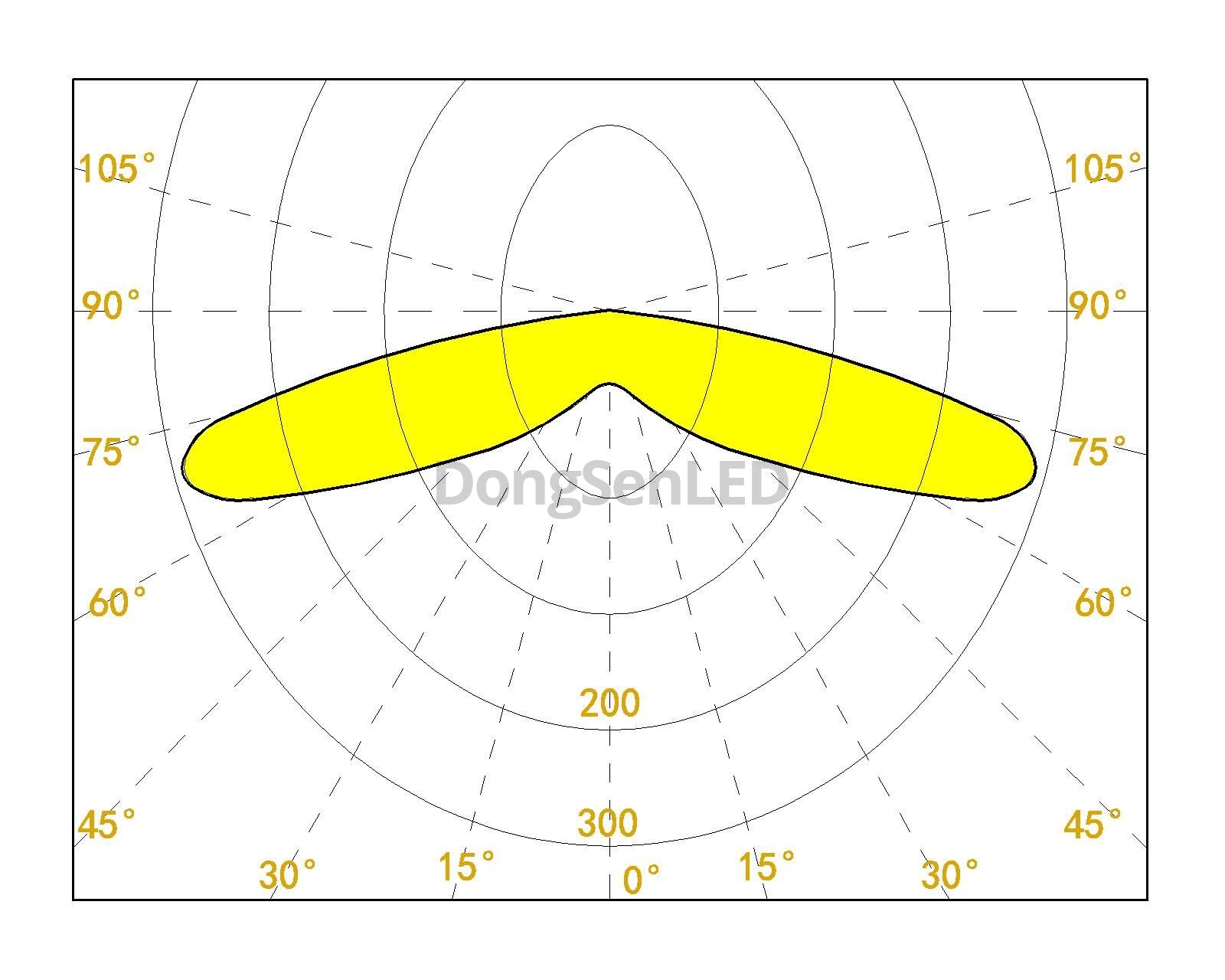

Light Distribution:

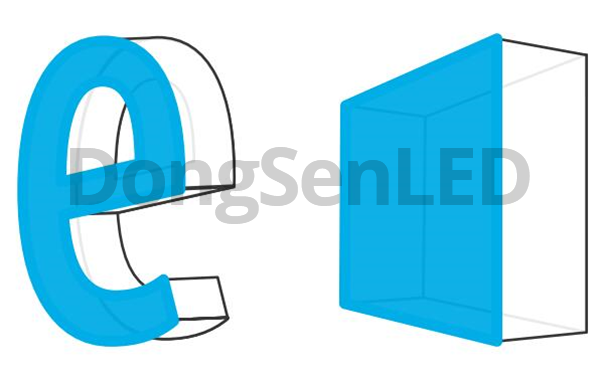

Application:
• Large size Channel letters illumination
• Back light single side lighting box
• Recommended depth 100– 200 mm
