50-Prism lens LED Module 170°

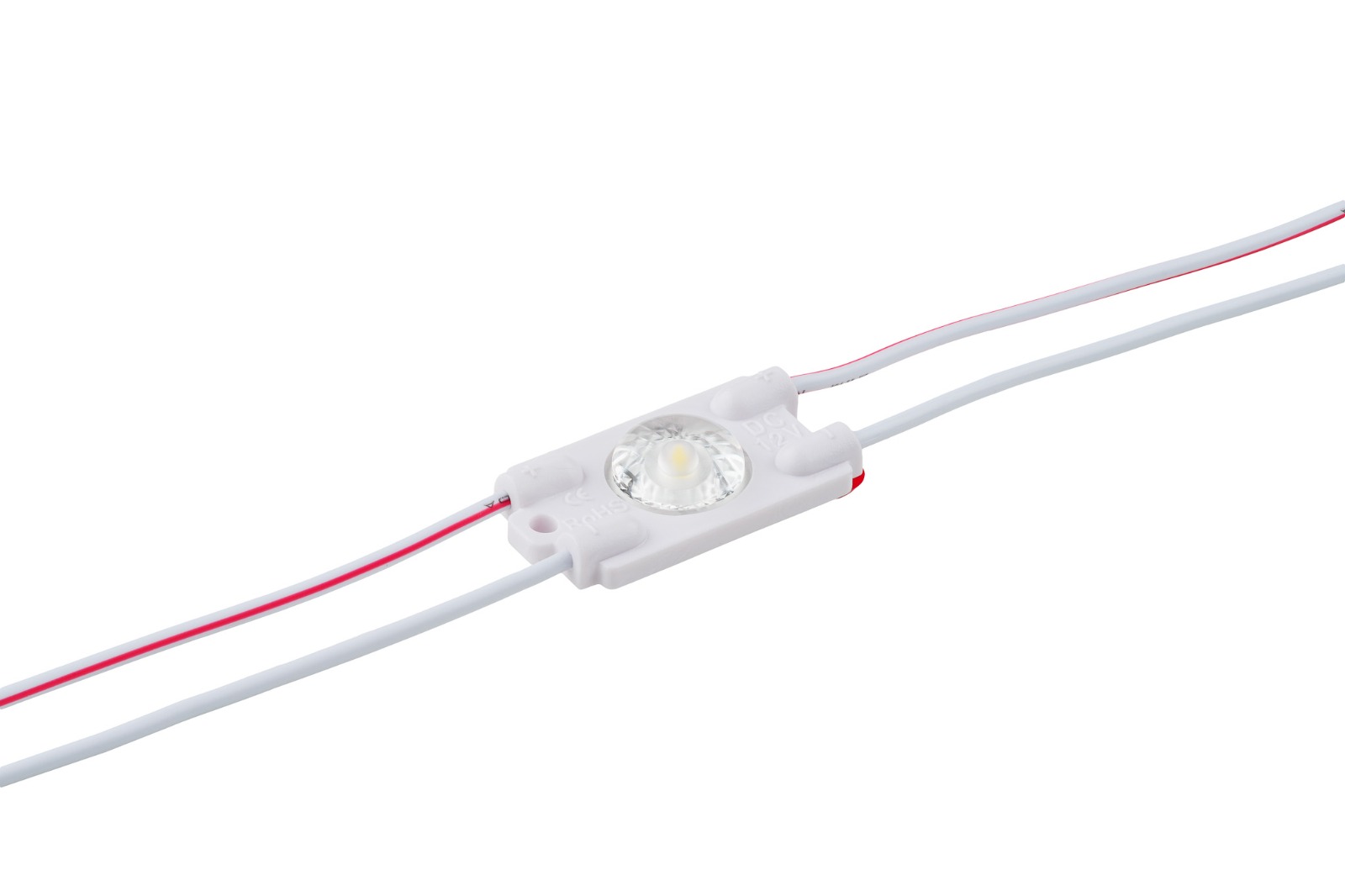

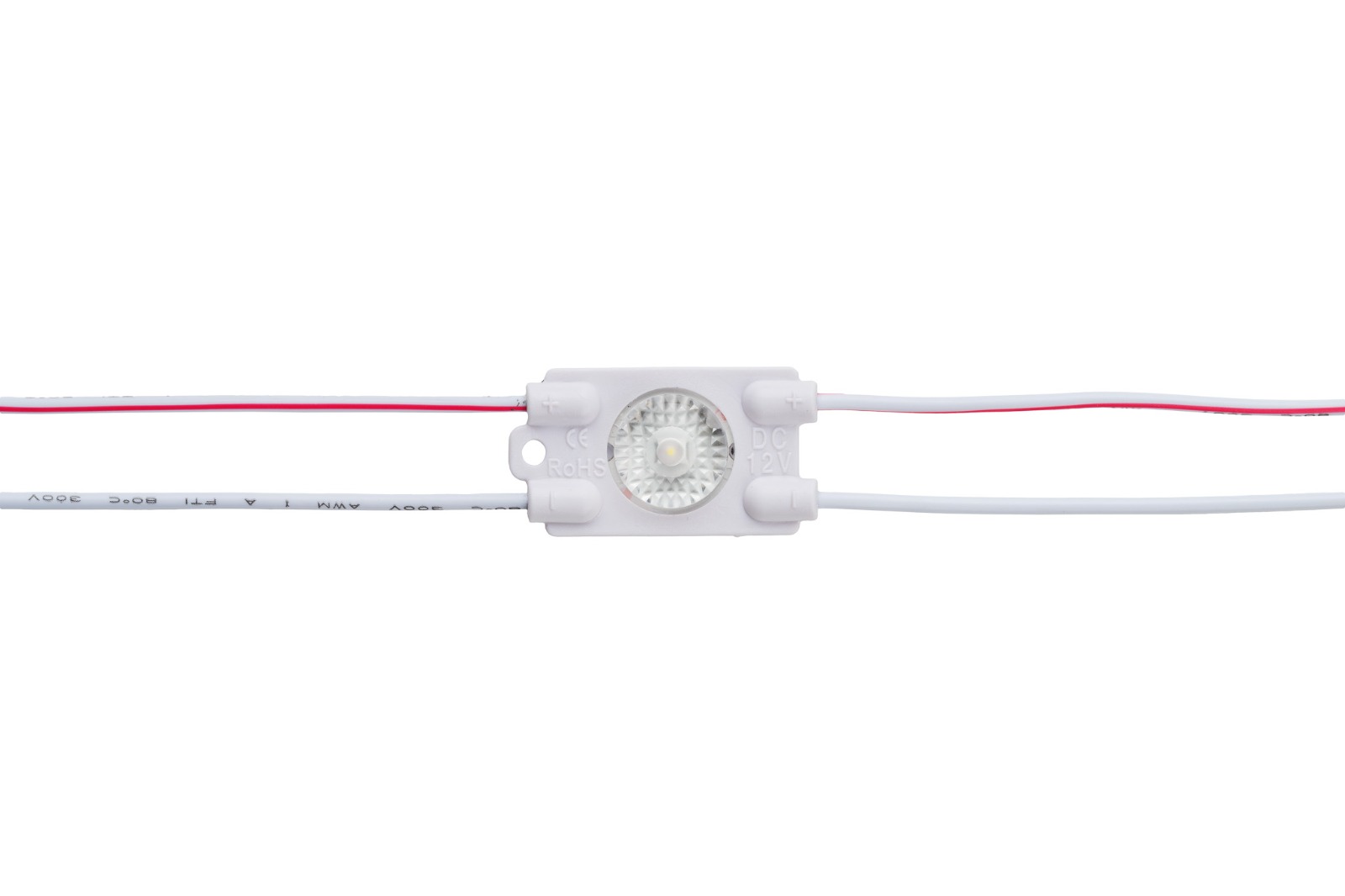

Model Mini led module 170°1led 0.5W 60lm
(P/N:MB-1X28)
Inquiry Now Feature:
• Lit by Lumileds 2835 SMD,
• Lumen efficiency up to 120 lm/W
• Prims lens, 170°beam angle
• 3 MacAdam Ellipse each bin
• LM80 50,000 hrs life time
• IP67 protection class

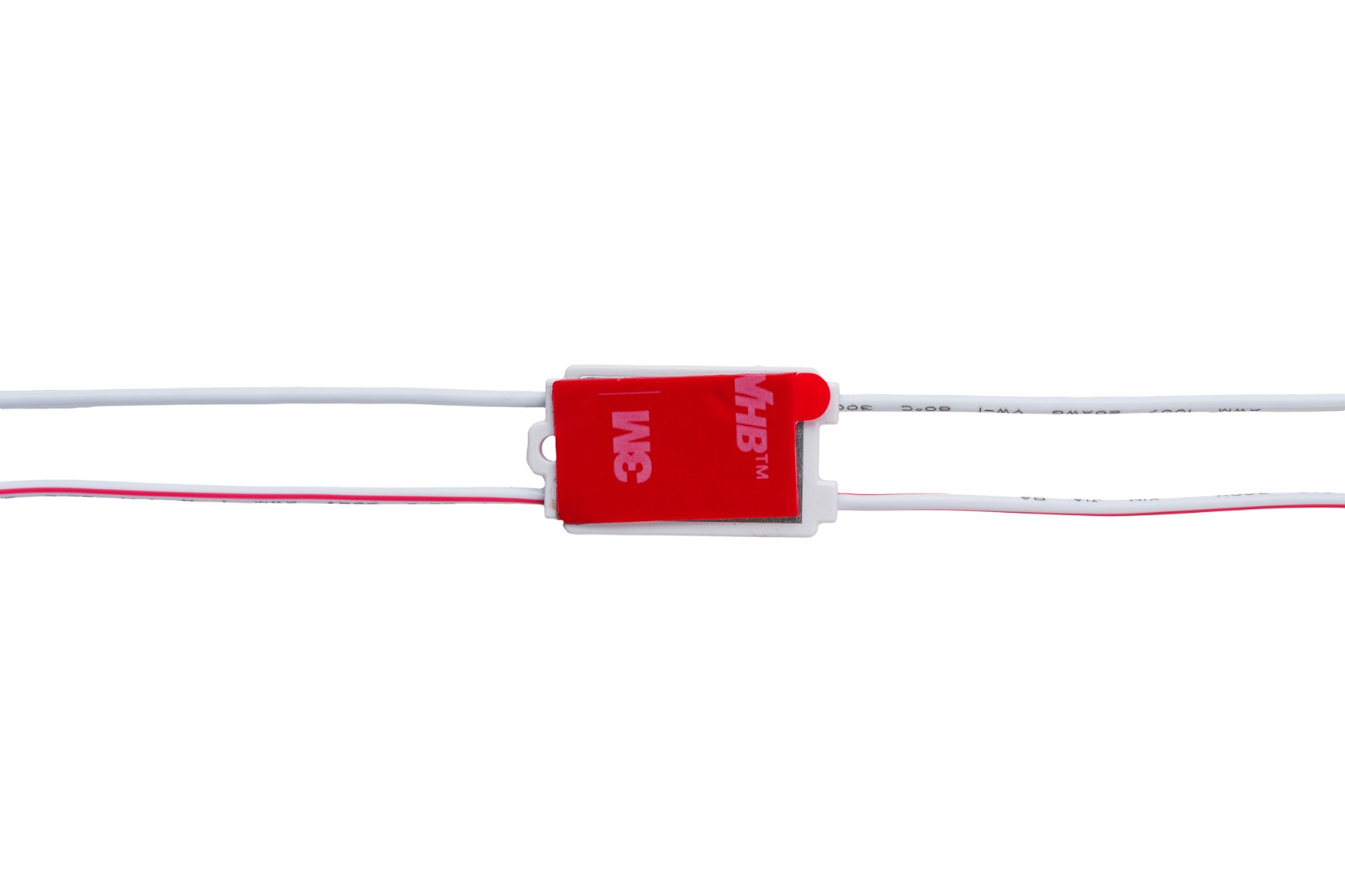

• Easy tear finger-lift 3M VHB tape for fast installation
• 5 years Warranty
• Lit by Lumileds 2835 SMD,
• Lumen efficiency up to 120 lm/W
• Prims lens, 170°beam angle
• 3 MacAdam Ellipse each bin
• LM80 50,000 hrs life time
• IP67 protection class
• Easy tear finger-lift 3M VHB tape for fast installation
• 5 years Warranty

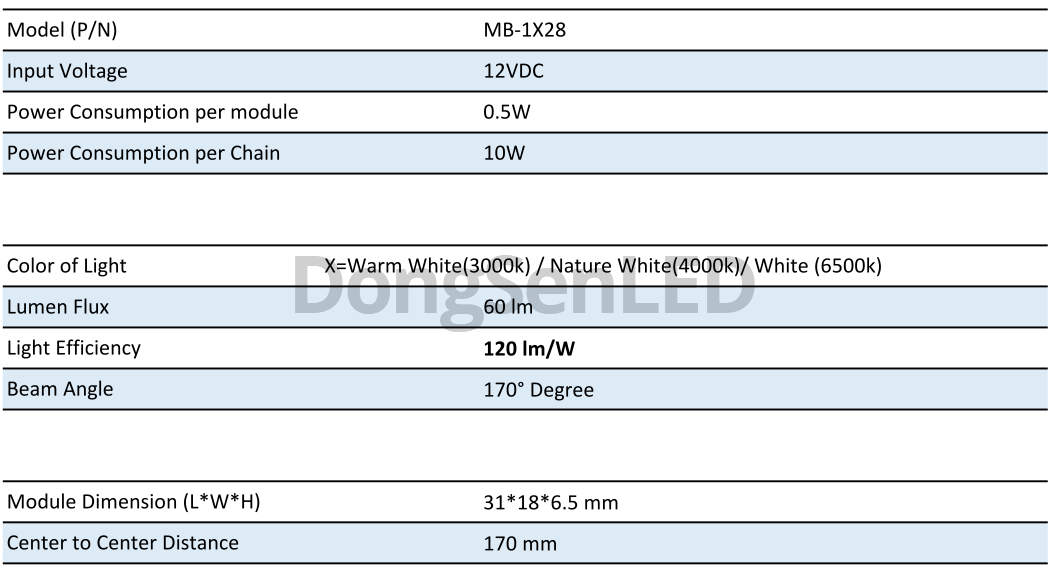

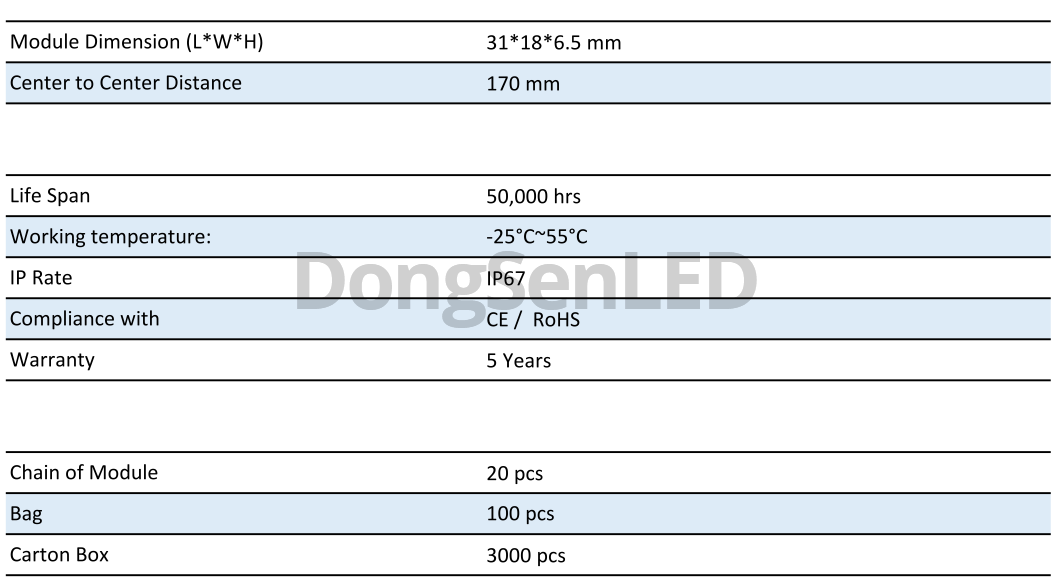

TECHNICAL PARAMETERS:

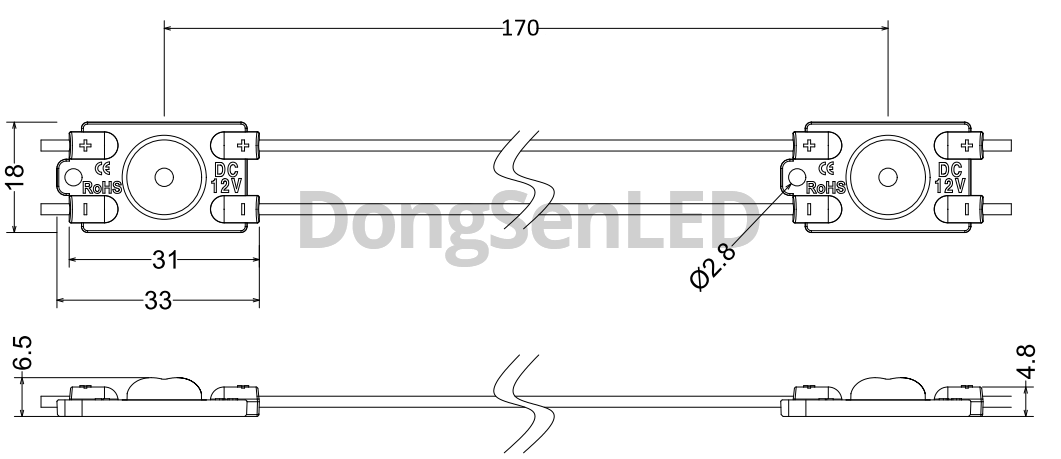

Dimension:

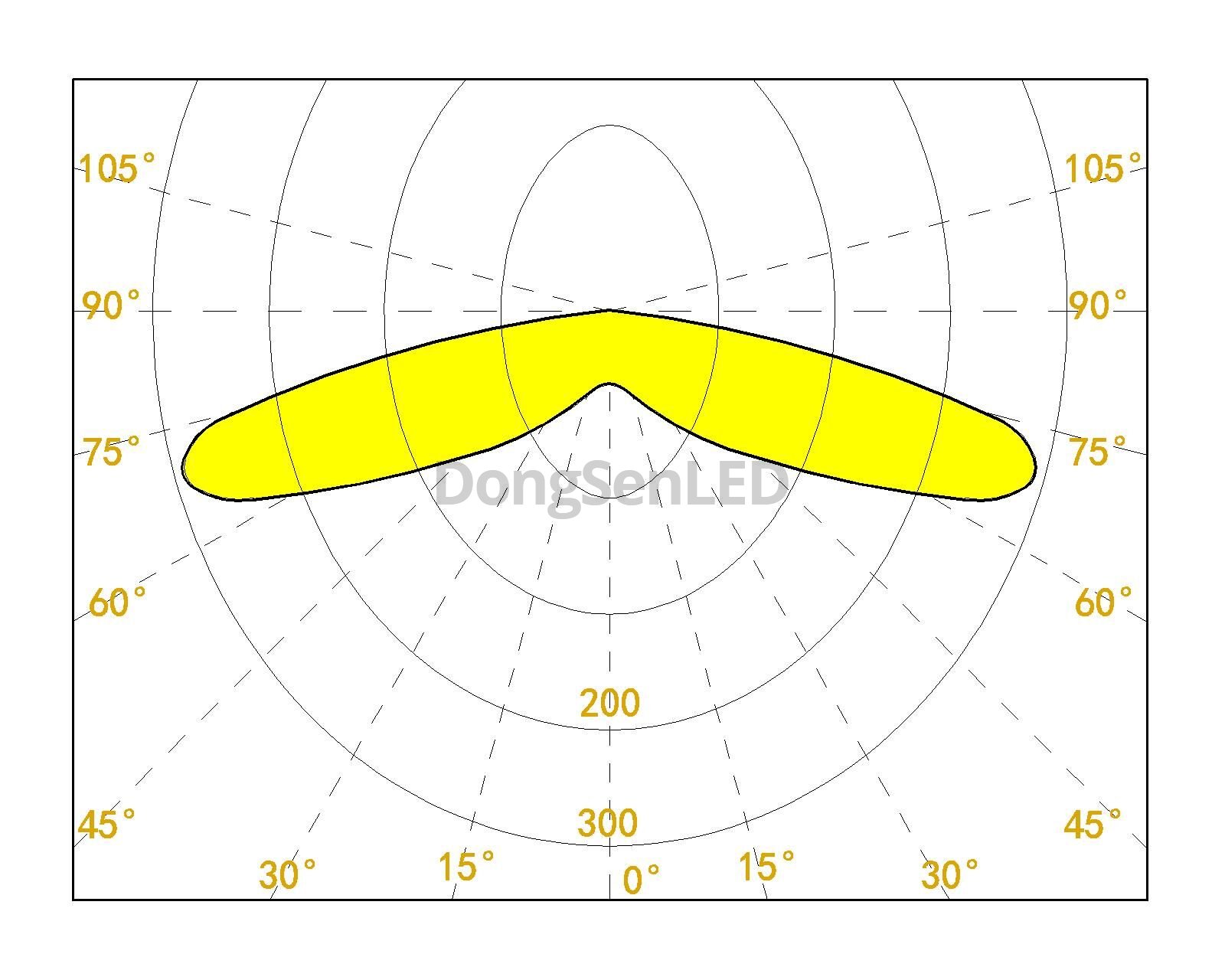

Light Distribution:

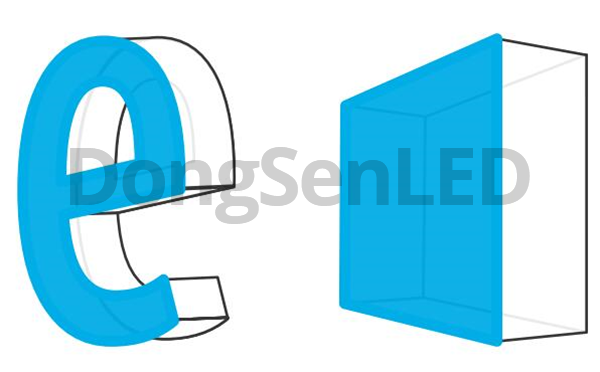

Application:
• Small size Channel letters illumination
• Back light single side lighting box
• Recommended depth 40– 80 mm
