Products-LED Neon Flexible
Model LED Silicone Neon Flex Blister Package 5 meter per Reel 6*12mm
((P/N:NF01-120XB))
Inquiry NowFeatures & benefits:

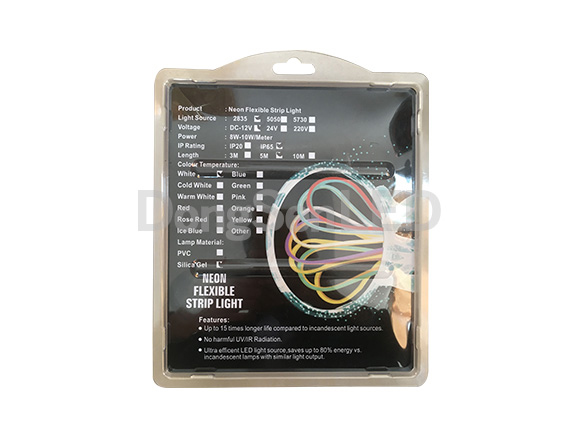

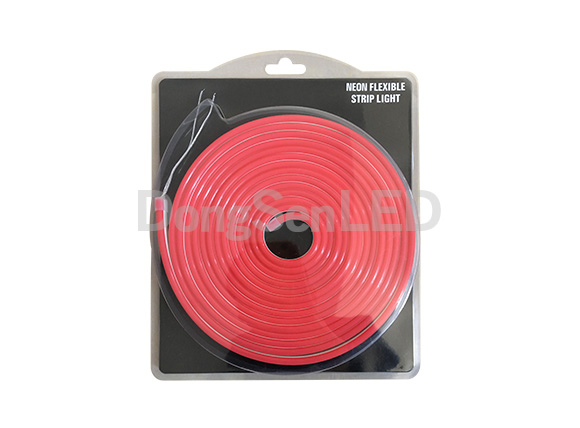

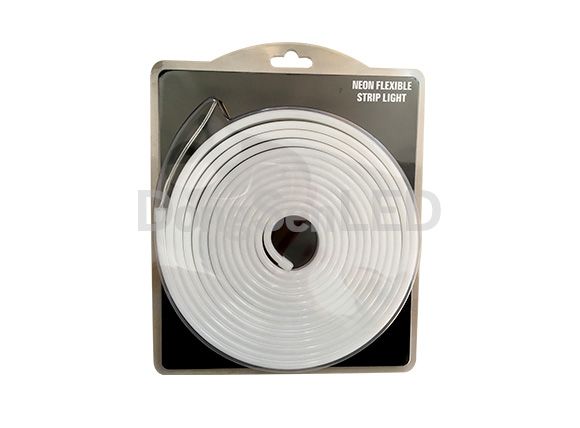

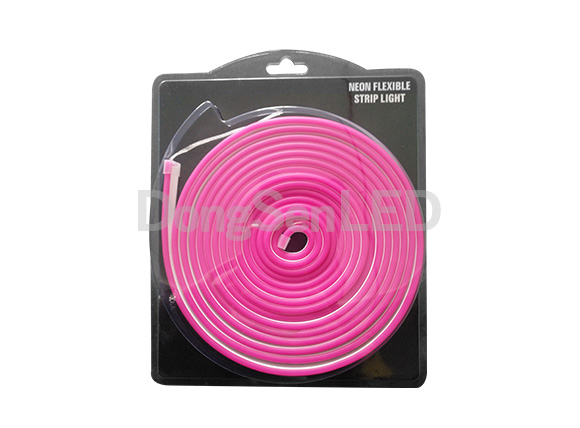

5 meters in a Blister package, good for the retails store
Horizontally bendable
Enhanced 2835 LED especially for strip products
White/Red/Green/Blue/Yellow/Pink color available.
Flexible and can be cut in 25mm
LM80 international certificate for LEDs
Silicone extrusion
UV and yellowing resistant
IP65 and salt-mist proof
Specification:
| Parameter | Description | ||||
|---|---|---|---|---|---|
| Color Available | White/Red/Green/Blue/Yellow/Pink | ||||
| Light output: | 450lm | ||||
| Voltage: | 12VDC | ||||
| Power: | 9W/m | ||||
| LED type: | 2835 SMD | ||||
| LED QTY: | 120 LED/m | ||||
| Chip Brand: | Epistar | ||||
| Beam Angle: | 180°degree | ||||
| IP Rate: | IP68 | ||||
| Operating temperature | -25°C~60°C | ||||
| Demension: | 50,000*06*12mm | ||||
| Cuttable Length | 25mm | ||||
| Installation | Bracket or Aluminum channel | ||||
| Driving Method: | Contant Voltage Drive | ||||
| Certification: | CE and RoHS compliant | ||||
| Life time: | 50,000hrs | ||||
| Warranty: | 3 Years | ||||

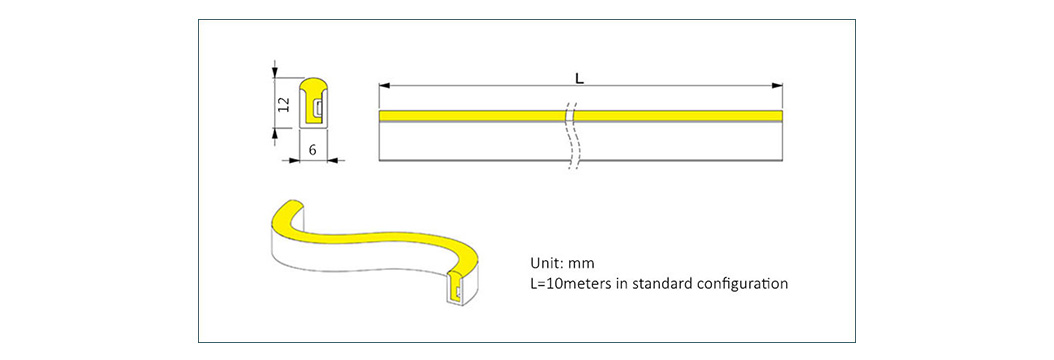

Dimension(mm):

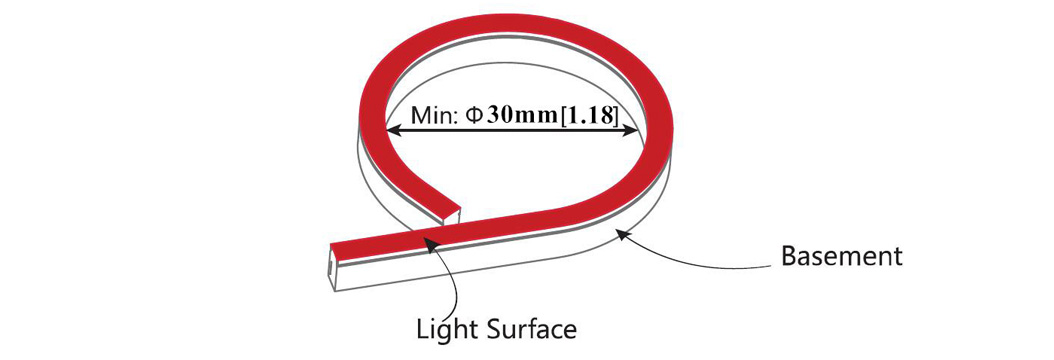

Bending:
Attention:
• The LED Neon itself and all its components may not be mechanical stressed
• Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations
• The design of the housing should be according to the IP standards in the application. Recommend using indoor.
• If surge protection structure not within power supply, a lightening protector should be needed additionally
• Before cutting and making reconnection, please read the user manual, and please ensure you have read and fully understood it.
Application:
• Neon tube light source
• General and cove lighting
