45-LED Neon Flexible
Model Mini LED Silicone Neon Flex 8*16mm
((P/N:NF02-120X))
Inquiry NowFeatures & benefits:
Horizontally bendable;
Enhanced 2835 LED especially for strip products;
Min. bending diameter 50 mm;
LM80 international certificate for LEDs;
Silicone extrusion;
UV and yellowing resistant;
IP68 and salt-mist proof;
Flexible and can be cut in multiples of 3/6 LEDS.
Specification:
| Parameter | Description | ||||
|---|---|---|---|---|---|
| Colors available: | White/Red/Green/Blue/Yellow | ||||
| Light output: | 450lm | ||||
| Voltage: | 12VDC | ||||
| Power: | 9W/m | ||||
| LED type: | 2835 SMD | ||||
| LED QTY: | 120 LED/m | ||||
| Chip Brand: | Epistar | ||||
| Beam Angle: | 180°degree | ||||
| IP Rate: | IP68 | ||||
| Operating temperature | -25°C~60°C | ||||
| Demension: | 100,000*08*12mm | ||||
| Cuttable Length | 25mm | ||||
| Installation | Bracket or Aluminum channel | ||||
| Driving Method: | Contant Voltage Drive | ||||
| Certification: | CE and RoHS compliant | ||||
| Life time: | 50,000hrs | ||||
| Warranty: | 3 Years | ||||

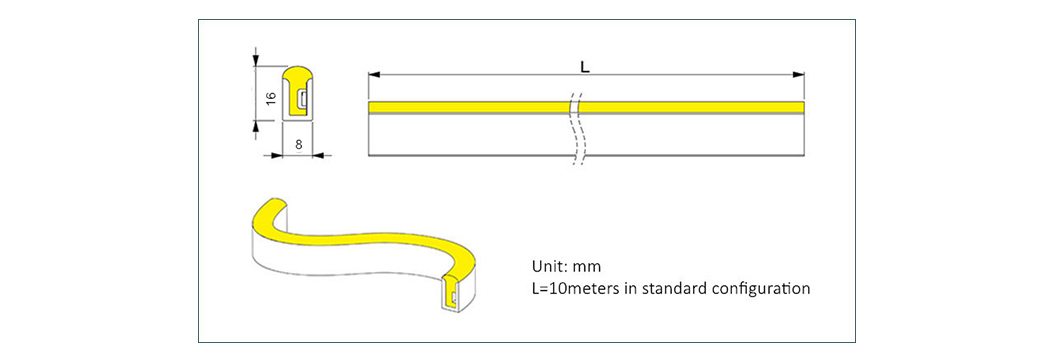

Dimension(mm):

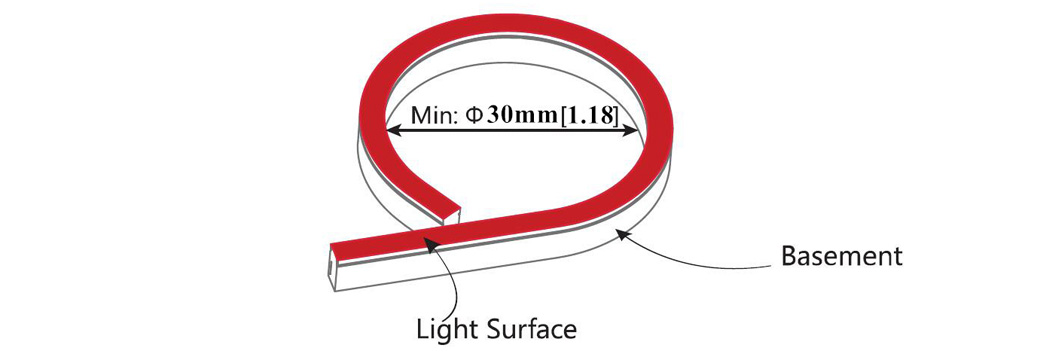

Bending :

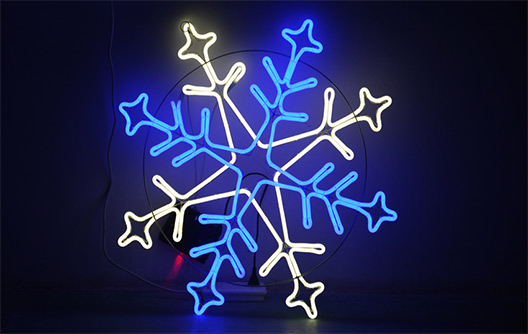

Application:
LED Signage;
Indoor/Outdoor decoration lighting;
Contour application.
