45-LED Neon Flexible
Model Flat Surface LED Silicone Neon Flex 12*20mm
((P/N:NF03-120X))
Inquiry NowFeatures & benefits:
Perfect for architectural perimeters and outlines lighting.
Horizontal bend-able.
High light transmittance optical silicon, dot-free lighting.
LM80 international certificate for LEDs
Silicone extrusion.
UV and yellowing resistant.
IP68 and salt-mist proof.
CE and RoHS certification, 3 years warranty.
Specification:
| Parameter | Description | ||||
|---|---|---|---|---|---|
| Color Available | White/Red/Green/Blue/Yellow/pink | ||||
| Light output: | 550lm | ||||
| Voltage: | 24VDC | ||||
| Power: | 12W/m | ||||
| LED type: | 2835 SMD | ||||
| LED QTY: | 120 LED/m | ||||
| Chip Brand: | Epistar | ||||
| Beam Angle: | 120°degree | ||||
| IP Rate: | IP68 | ||||
| Operating temperature | -25°C~60°C | ||||
| Demension: | 100,000*12*20mm | ||||
| Cuttable Length | 50mm | ||||
| Installation | Bracket or Aluminum channel | ||||
| Driving Method: | Contant Voltage Drive | ||||
| Certification: | CE and RoHS compliant | ||||
| Life time: | 50,000hrs | ||||
| Warranty: | 3 Years | ||||
Dimension(mm):

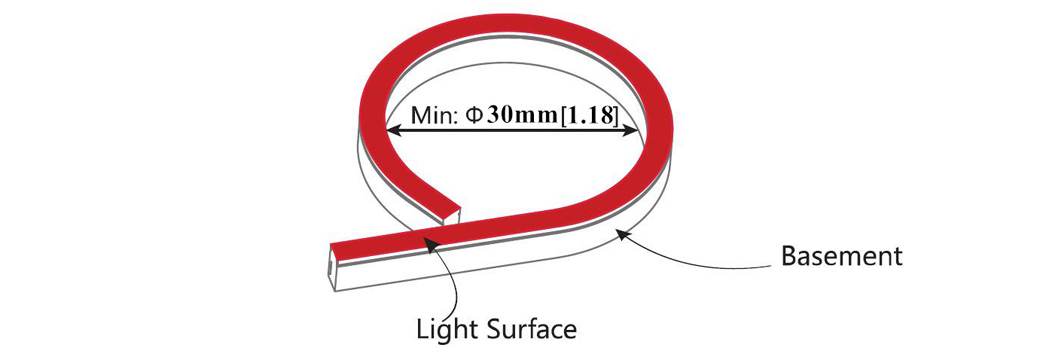

Bending:
Application:
• Building and sign outline lighting
