Technical Parameters:
Parameter | Description | ||||
---|---|---|---|---|---|
Dimension | Φ9mm | ||||
LED No | 1 pc through-hole LED | ||||
Voltage | DC5V | ||||
View angle | 90-110 degree | ||||
Current | 20mA | 20mA | 20mA | 20mA | 20mA |
Watts | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
Lumen | 5-6 | 1.5 | 3 | 2.8 | 1.5 |
Color | White | Blue | Green | Yellow | Red |
Cover | Transparent PVC | ||||
IP rate | IP65 | ||||
Working temp | -40~+80℃ | ||||
Max connection | 50 pcs per a string | ||||
Life | 50,000 hrs. | ||||
Warranty | 2 Years | ||||
Certificate |
CE&ROHS |
||||
Part No. | D9-1W | D9-1B | D9-1G | D9-1Y | D9-1R |
Dimension(mm):
Application:

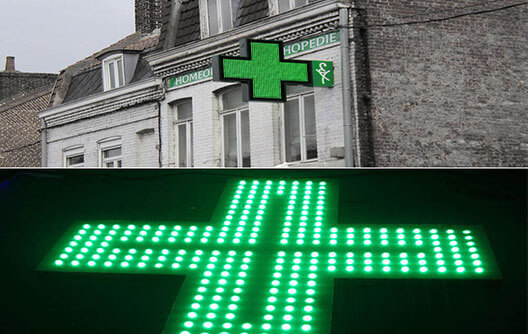

Illuminated signage;

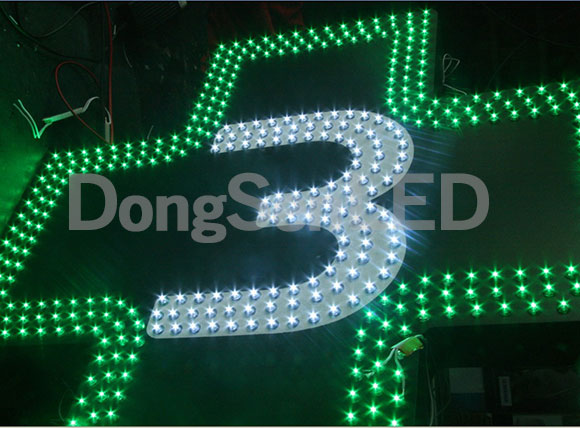

LED Channel letter, led sign board;
Chrismas lighting.
