Products-LED Pixel Light

Model DMX control full color led pixel light with IC D12-1IC

(P/N: D12-1IC)

Inquiry Now

Feature:

Ideal for outside channel letter and the bright lighting projects for the large-scale panel with super brightness and vivid color;

One pixel light are made of 1 pcs RGB straw hat led and 1 pcs UCS1903 IC;

Digital, Could creat whatever color effects as you like;

Could be controlled both online and offline;

DMX controller or SD Card controller;

Soft PVC shell, are suitable for many kinds of plates, such as stainless steel, plexiglass, aluminum, ect;

IP65, outdoor usage.

Technical Parameters:

Parameter Description
Dimension Φ12mm
LED No 1 pc through-hole LED
Voltage DC5V
View angle 90-110 degree
Current Max 60 mA
Watts Max 0.3 Watt
IC type UCS1903 IC
Color Full Color Pixel
Cover Transparent  PVC
IP rate IP65
Working temp -40~+80℃
Max connection 50 pcs per a string
Life 50,000 hrs.
Warranty 2 Years
Certificate CE&ROHS
Part No. D12-1IC

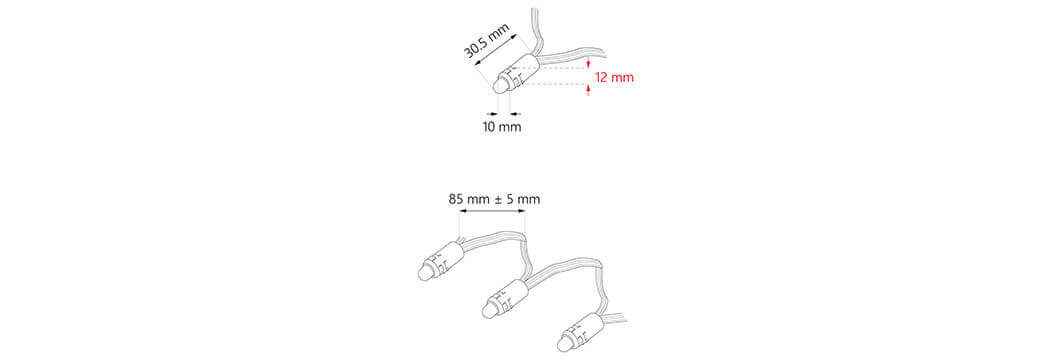

Dimension(mm):

Dimension

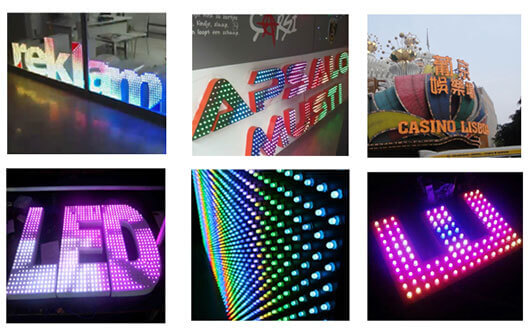

Application:

Decoration light for events, party, ect;

Illuminated signage for shop mall, casino, KTV, night bar, ect;

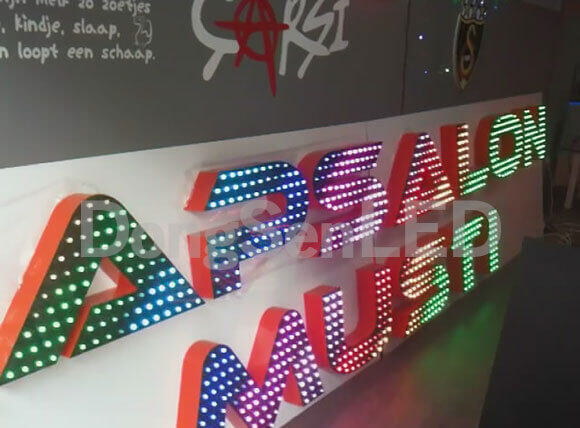

LED Channel letter, led sign board.

  • Application
