9-LED Pixel Light

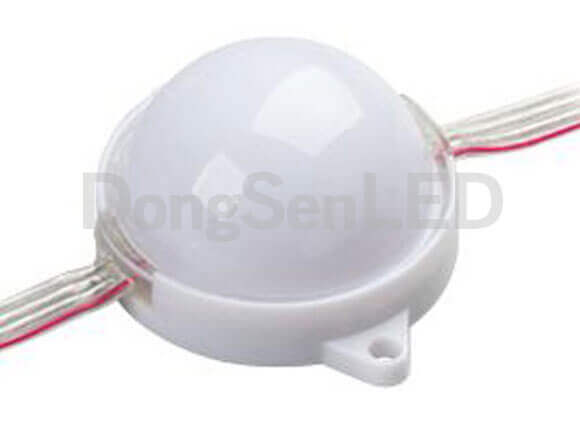

Model Diameter 50mm color changing 5050 RGB led pixel light D50-7IC

(P/N: D50-7IC)

Ideal for the decoration lighting, such as body building floor, stage background and other entertainment;

Optical lens design, more uniform light effects;

Addressable, adopt 7 pcs 5050 RGB SMD LED and 1 pcs WS2801IC;

Controller: T-1000S, SD Card controller, it can work both online and offline, software is free of charge;

IP65, waterproof, could be used both indoor and outdoor;

The led quantity and dimension could be customized.

Parameter	Description
Voltage (V)	DC12V
Power (W)	1.68W
Available Color	Full Color
Color Temperature Wave length (nm)	Red(619-635)	Green(525-530)	Blue(465-470)
LED Qty	7pcs 5050 SMD LED
Control Mode	WS2801 IC
Viewing angle	120 degree
Shell	Milky plastic case

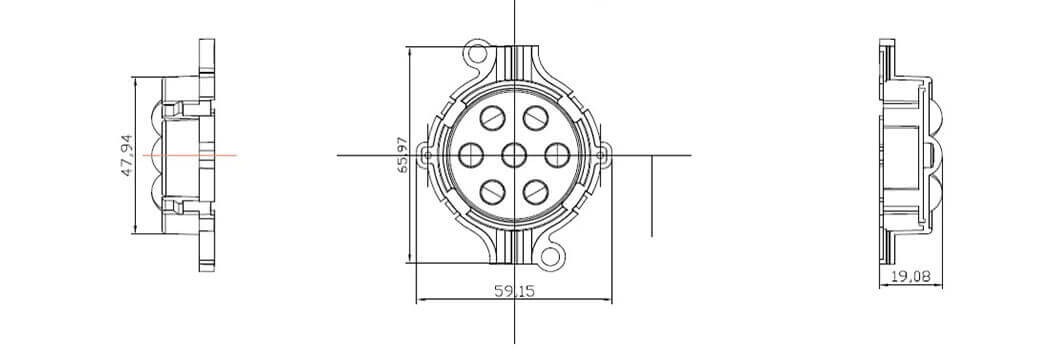

Shell Size	Diameter 50mm
IP Rate	IP65
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
Drive Mode	Constant current drive
Span life	50,000h
Certification	CE&ROHS
Part No.	D50-7IC

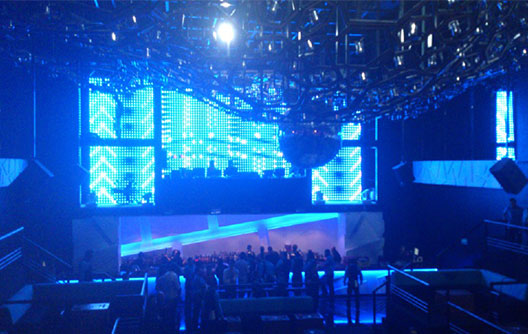

Widely used in body building floor, stage background and entertainment decorative lighting;

Can Display text, graphics, video, animation and other sync clips.
