Home &gt; Products &gt; Flexible SMD LED Strip &gt; 5050 SMD Flexible LED Strip > Color changing 5050 RGB flexible led strip TB10-30RGB50

19-5050 SMD Flexible LED Strip

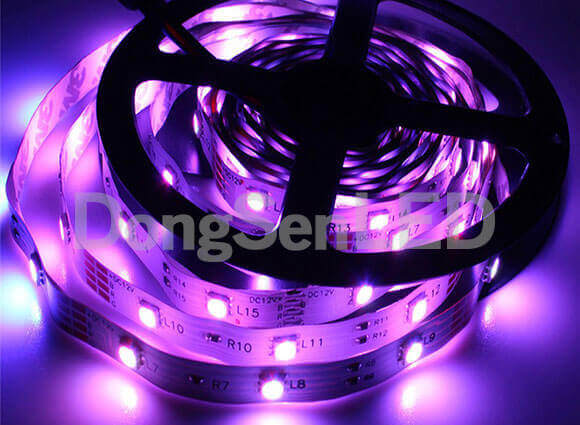

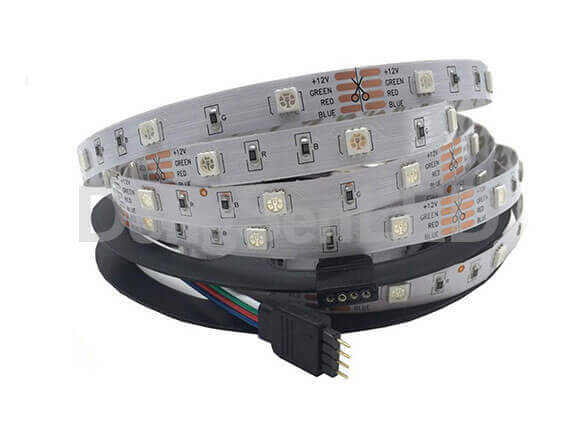

Model Color changing 5050 RGB flexible led strip TB10-30RGB50

(P/N: TB10-30RGB50)

Feature:

Adopt high quality 5050 SMD RGB LED, 3 chip in 1 led;

It could creat more than 10 color effects, such as loop, jump, ect;

Double Layer PCB, white color, Minimal heat generation;

Slight voltage drop, perfect light uniform;

both nonwaterproof and waterproof available;

Controller: IR/RF RGB LED Controller;

The led quantity and length could be customized.

Technical Parameters:

Parameter	Description
Part No.	TF08-120W35P8
Voltage (V)	DC12V/ DC24V
Power (W/pc)	7.2 W/m, 36 W/roll
Available Color	RGB
Wave length (nm)	Red(620-625)	Green(525-530)	Blue(465-470)

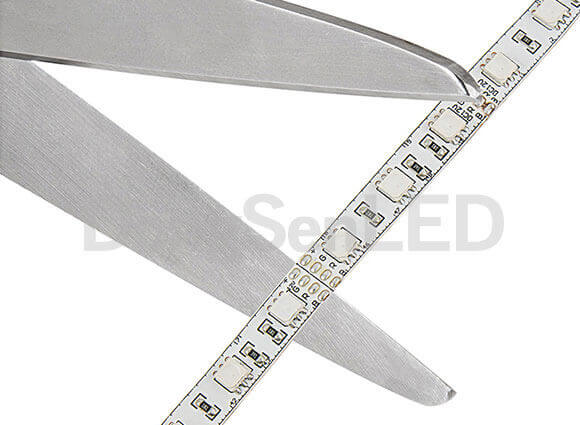

Cuttable Unit	100mm or 3 LED
LED Type	5050 SMD LED
LED Qty	30 led/m, 150 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
PCB	Double Layer, Color-White
IP Rate	IP20/ IP65/IP68
Dimension	50001002 mm
Span life	50,000h
Certification	CE&ROHS

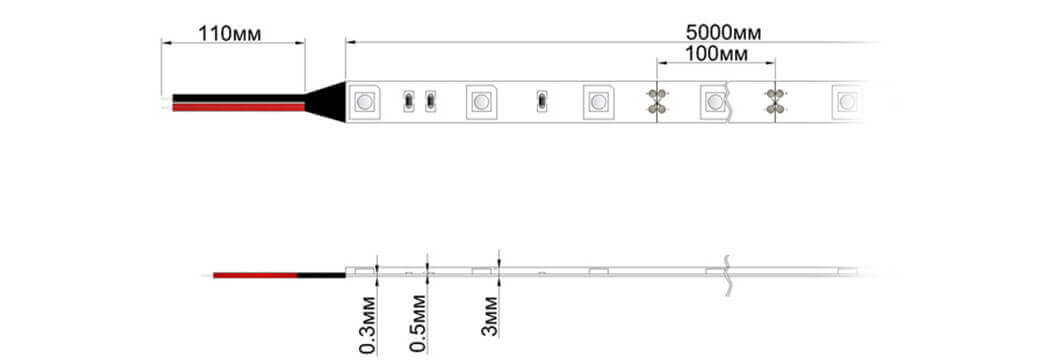

Dimension(mm):

Dimension

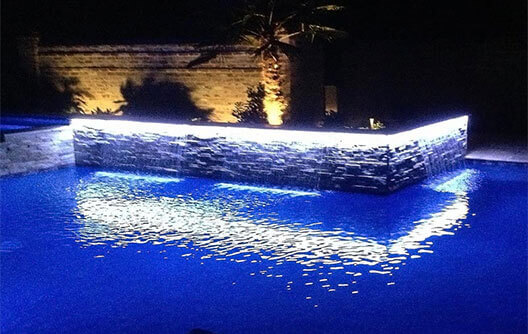

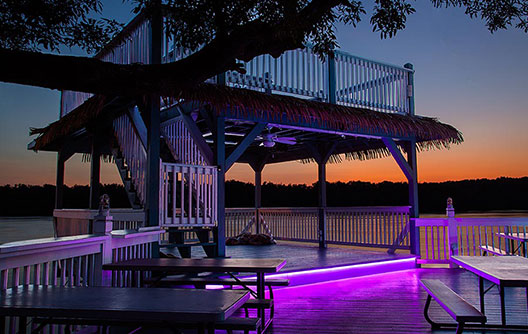

Application:

Decorative lighting for festivals, events, shows, exhibitions;

Architectural lights for canopy, corridor, window, archway;

Backlight or edge lighting for signage;

LED Cove Lighting;

Channel letter lighting.
