Home &gt; Products &gt; Flexible SMD LED Strip &gt; 5050 SMD Flexible LED Strip > High CRI 5050 flexible led strip IP68 12vDC TF10-60WP8

19-5050 SMD Flexible LED Strip

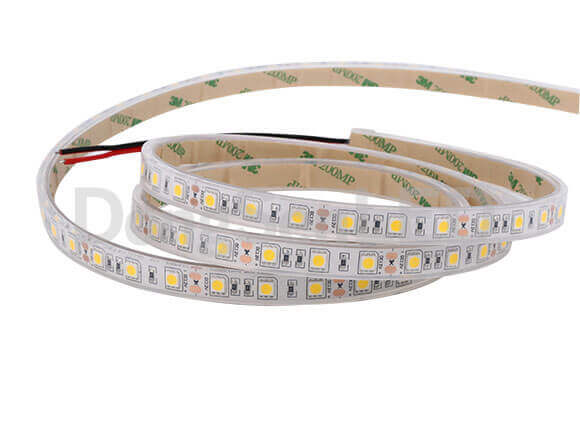

Model High CRI 5050 flexible led strip IP68 12vDC TF10-60WP8

(P/N: TF10-60WP8)

Inquiry Now

Feature:

Adopt high quality 5050 SMD LED, CRI>80, 18-20LM/LED, 60LED/m;

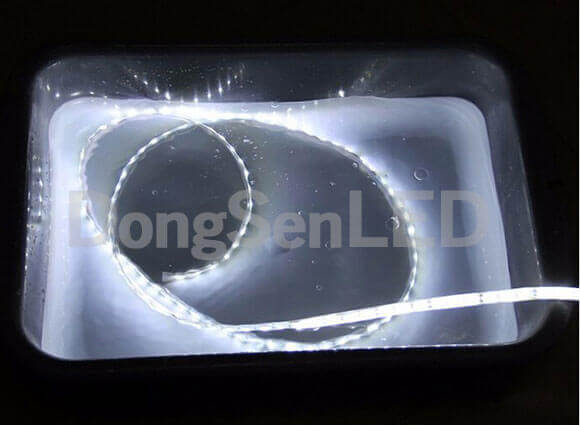

The strip are put into the Silicon tube and cover by silicon gel, that offers double layer protection guaranteeing maximum waterproof (IP 68) levels.;

High brightness and color consistency, strictly one bin led for one order;

Double Layer PCB, white color, Minimal heat generation;

Slight voltage drop, perfect light uniform;

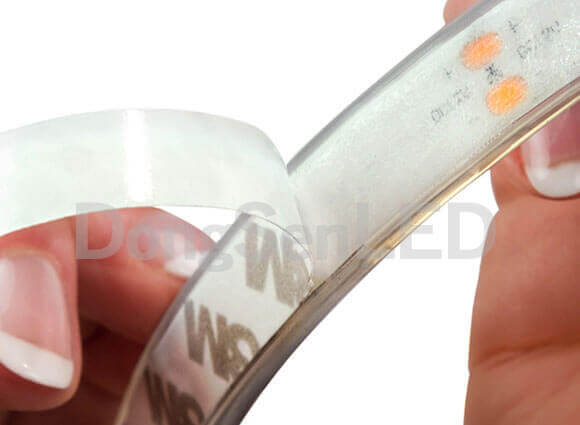

Easy install, with transparent silicon clips;

The led quantity and length could be customized.

Technical Parameters:

Parameter	Description
Voltage (V)	DC12V/ DC24V
Power (W)	14.4 W/m,72 W/roll
Available Color	White	Red	Green	Blue	Yellow
Lumen/m	1080	360	780	210	320
LED Type	5050 SMD LED
LED Qty	60 led/m, 300 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree

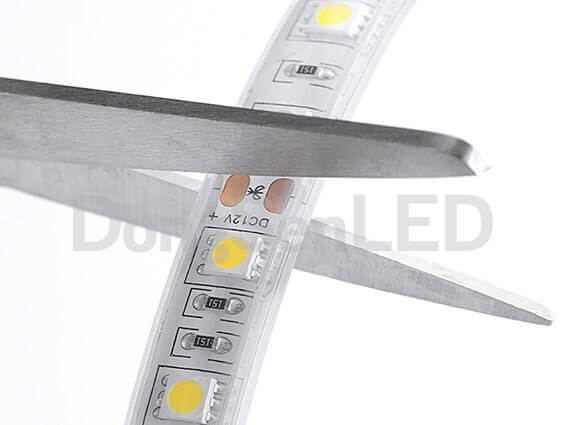

Cuttable Unit	50mm or 3 LED

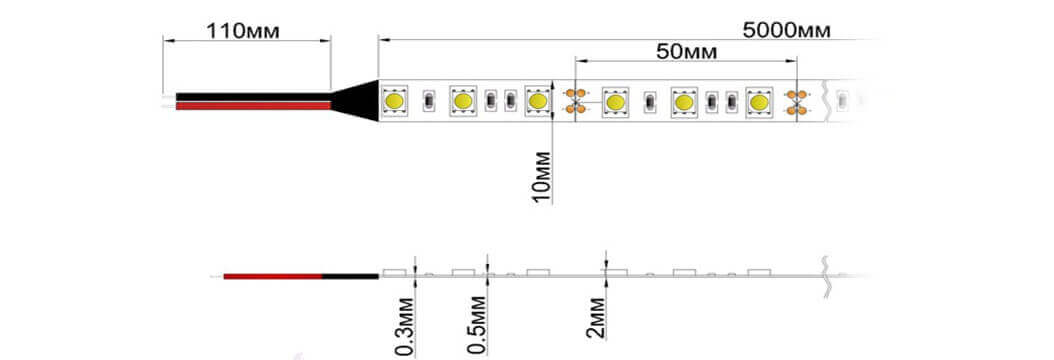

Dimension	50001204 mm
IP Rate	IP68
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
PCB	Double Layer, Color-White
Span life	50,000h
Certification	CE&ROHS
Part No.	TF10-60W50P8	TF10-60R50P8	TF10-60G50P8	TF10-60B50P8	TF10-60Y50P8
