Home &gt; Products &gt; Flexible SMD LED Strip &gt; 5050 SMD Flexible LED Strip > DC24v 5050 flexible led strip 300led for outdoor TF10-60W50

19-5050 SMD Flexible LED Strip

Model DC24v 5050 flexible led strip 300led for outdoor TF10-60W50

(P/N: TF10-60W50)

Feature:

Adopt high quality 5050 SMD LED, CRI>80, 18-20LM/LED, 60LED/m;

DC12V and DC24V, 14.4Watt/m;

High brightness and color consistency, strictly one bin led for one order;

Double Layer PCB, white color, Minimal heat generation;

Slight voltage drop, perfect light uniform;

Drop silicon gel, IP65, waterproof, could be used outdoor;

The led quantity and length could be customized.

Adhesive 3M tape, easy installation.

Technical Parameters:

Parameter	Description
Voltage (V)	DC12V/ DC24V
Power (W)	14.4 W/m,72 W/roll
Available Color	White	Red	Green	Blue	Yellow
Lumen/m	1080	360	780	210	320
LED Type	5050 SMD LED
LED Qty	60 led/m, 300 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree

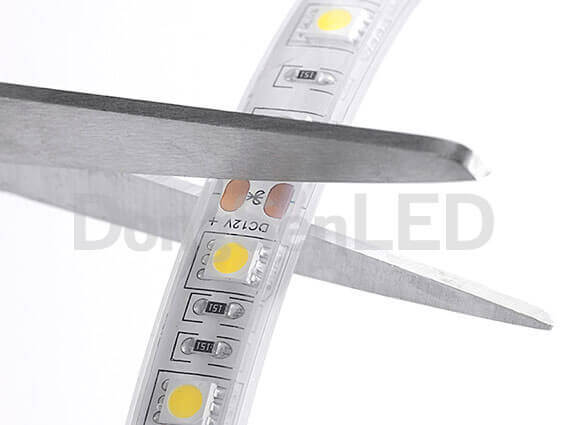

Cuttable Unit	50mm or 3 LED
Dimension	50001004 mm
IP Rate	IP65
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
PCB	Double Layer, Color-White
Span life	50,000h
Certification	CE&ROHS
Part No.	TF10-60W50	TF10-60R50	TF10-60G50	TF10-60B50	TF10-60Y50

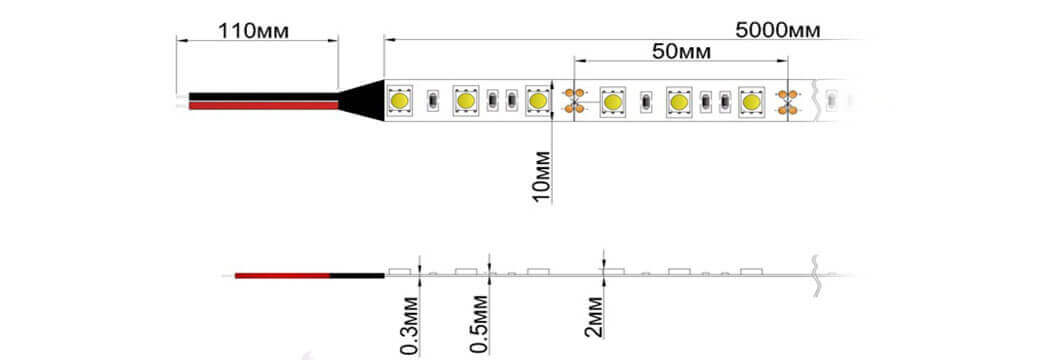

Dimension(mm):

Dimension

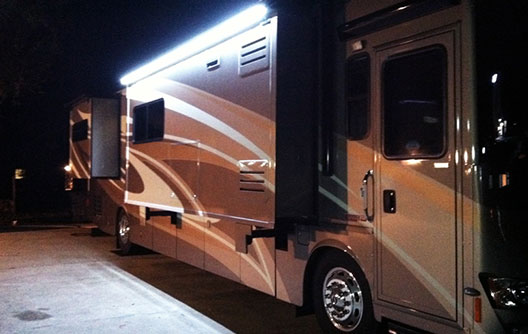

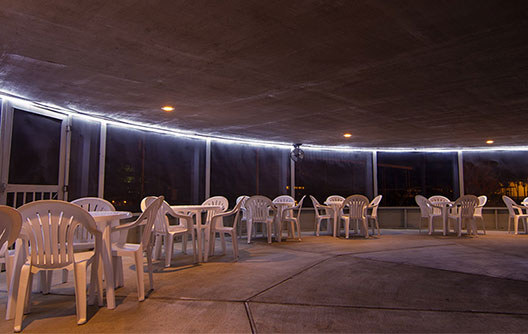

Application:

Cove lighting;

Under cabinet lighting;

Architectural lighting for canopy, corridor, window, archway;

Backlight or edge light for signage;

Path or contour marking 5050 led strip.
