Home > Products > Flexible SMD LED Strip > 5050 SMD Flexible LED Strip > Colorful 5050 RGB flexible led strip light 300led 16.4ft TB10-60RGB50
19-5050 SMD Flexible LED Strip
Model Colorful 5050 RGB flexible led strip light 300led 16.4ft TB10-60RGB50
(P/N: TB10-60RGB50)
Inquiry NowFeature:

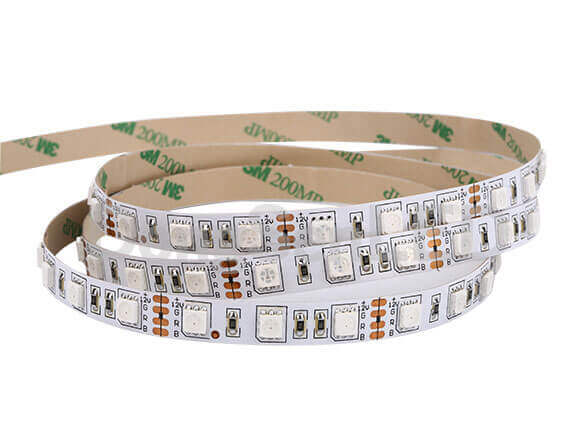

Adopt high quality 5050 SMD RGB LED, 3 chip in 1 led, 60led/m, 300 led per reel;
It could creat various color effects, such as loop, jump, ect;
Double Layer PCB, white color, Minimal heat generation;
Slight voltage drop, perfect light uniform;
both nonwaterproof and waterproof available;

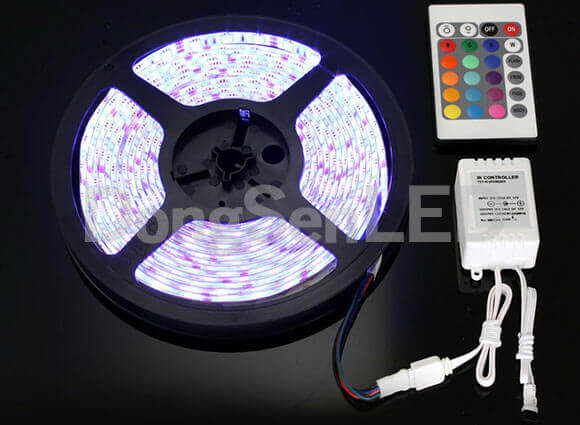

Controller: IR/RF RGB LED Controller;
The led quantity and length could be customized.
Technical Parameters:
| Parameter | Description | ||
|---|---|---|---|
| Part No. | TB10-60RGB50 | ||
| Voltage (V) | DC12V/ DC24V | ||
| Power (W/pc) | 14.4 W/m, 72 W/rol | ||
| Available Color | RGB | ||
| Wave length (nm) | Red(620-625) | Green(525-530) | Blue(465-470) |

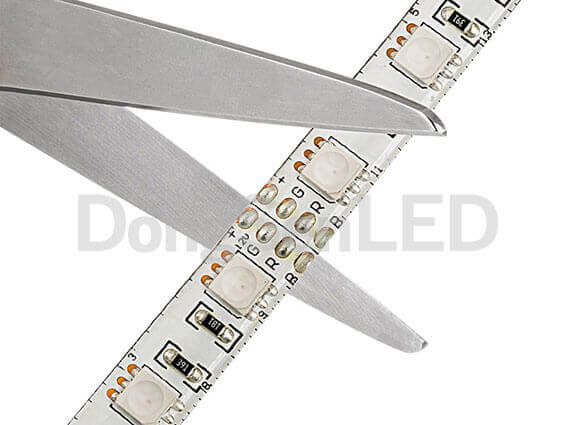

| Cuttable Unit | 50mm or 3 LED | ||
| LED Type | 5050 SMD LED | ||
| LED Qty | 60 led/m, 300 led/roll | ||
| Chip Brand | Epistar Chip from Taiwan | ||
| Viewing angle | 120 degree | ||
| Working Temperature | -40°C~60°C | ||
| Storage Temperature | -50°C~80°C | ||
| PCB | Double Layer, Color-White | ||
| IP Rate | IP20/IP65/IP68 | ||
| Dimension | 5000*10*02 mm | ||
| Span life | 50,000h | ||
| Certification | CE&ROHS | ||

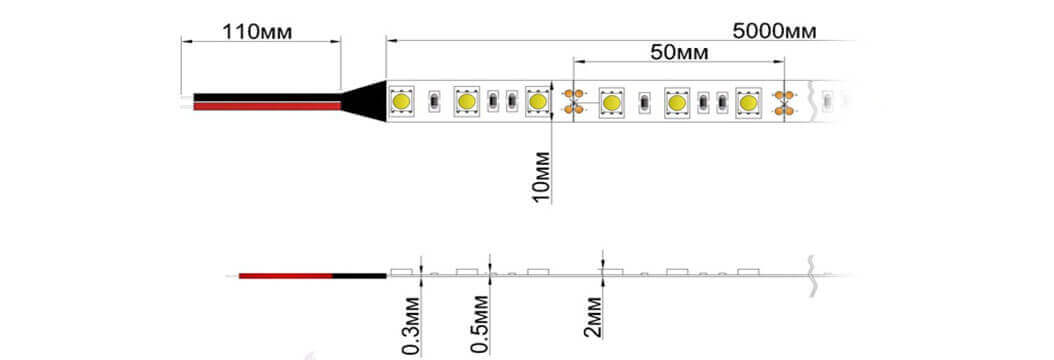

Dimension(mm):

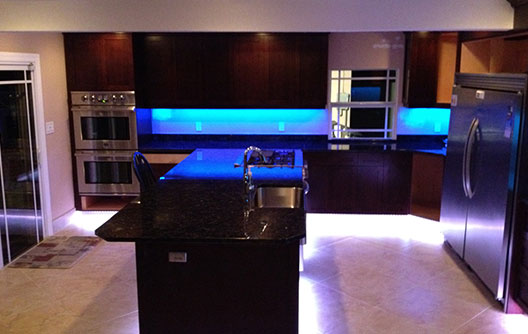

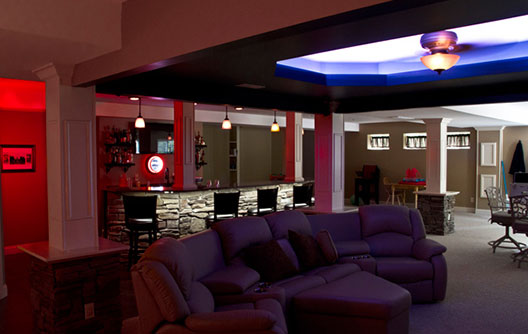

Application:
Under cabinet LED lighting;
Cove LED lighting;
LED task/back lighting;
Retail/sign LED lighting;
Display case LED lighting.
