LED Controller&LED Dimmer-LED Controller

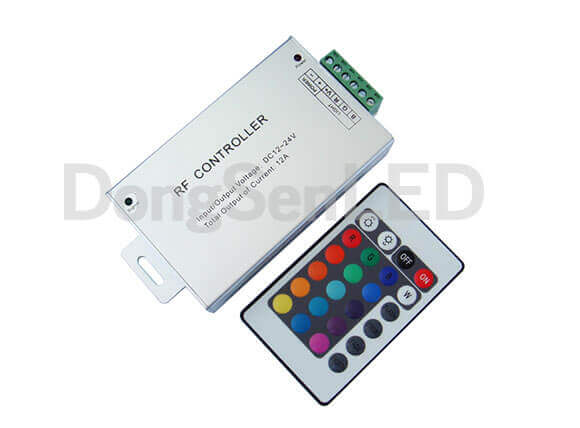

Model 24-key aluminum infrared led controller DS-IRL24A

(P/N: DS-IRL24A)

Inquiry Now

Feature:

Adopts the advanced micro control unit;

There is a IR remote touch control 24 keys, you could adjust brightness, static color choices and various dynamic changes in lighting effects;

There are 20 modes in total, including 16 static and 4 dynamic changes; The brightness of static color and the speed of dynamic changes are adjustable;

Output to RGB three channel, each allow a maximum current of 4A;

Aluminum case, better heat dissipation.

Technical Parameters:

Parameter Description
Working temperature -20-60℃
Supply voltage DC5V, 12V~24V optional
Output 3 channels
Connecting mode common anode
External dimension L130*W64*H24 mm
Packing size L137*W80*H54mm
Net weight 185g
Gross weight 215g
Static power consumption <1W
Output current <4A(each channel)
Output power 5V:<60W,12V:<144W,24V:<288W

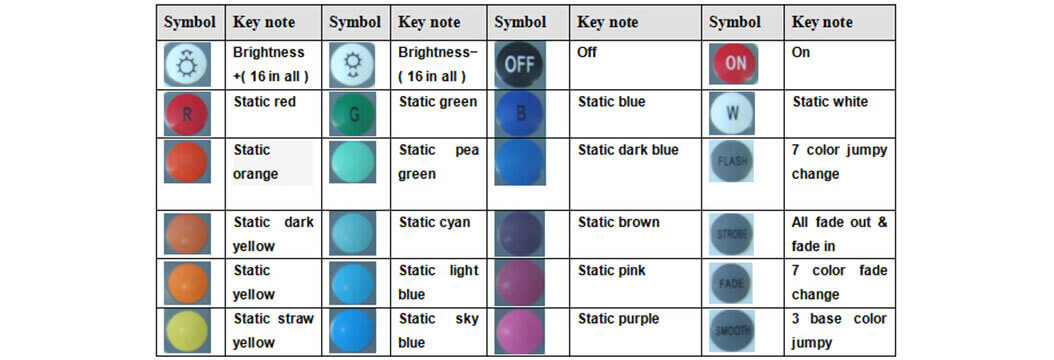

The key-press functions

Dimension

Dimension(mm):

Dimension
