28-LED Controller

Feature:

1. The DMXCM-3CH is constant voltage decoder, accept international popular DMX512 standard digital control signal, convert it to the PWM signal to drive LED lamps, applicable to a variety of constant voltage LED lamps, such as RGB LED module, lights, string lights, etc.

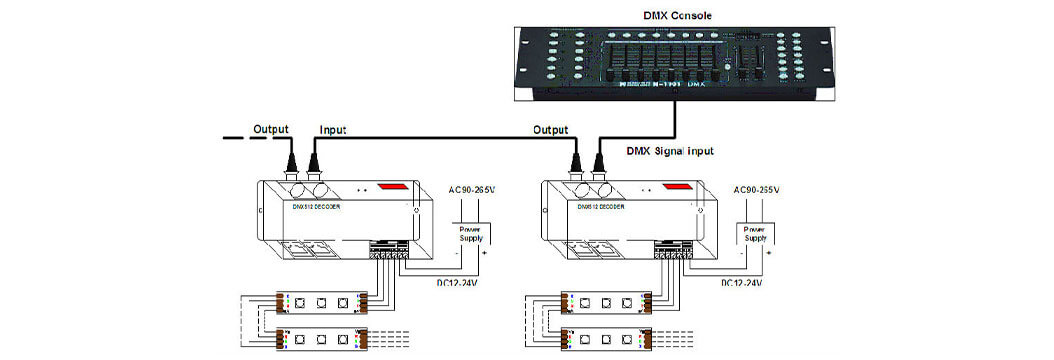

2. DMX decoder can be controlled by DMX master, and the decoder can connect the signal line to continue to expand the channels up to 512, eventually be able to achieve more change in effect.

3. Except the manual-setting address by DIP switch.

4. If no master, it also can be used as synchronized controller, all of them can synchronize work as a sync-work-system when connected by RJ45.

5. When used alone, it also can be used as a normal RGB controller, with 9 modes in total.

6. In order to achieve synchronization of more LED lamps, RGB amplifier can be used.

7. There channels for RGB output, each allows a maximum current of 8A.

8. 3-year warranty.
