28-LED Controller
Model RF LED RGB Controller 8 Key DS-RFT8A
(P/N: DS-RFT8A)
Inquiry NowFeature:
Adopt film button control panel and RF remote control, both functions are same.
Max. output current:4A*3CH,DC12V-24V.
25 modes in total, including 7 static colors and 18 dynamic changes.
Speed for dynamic modes is adjustable, brightness for static modes is adjustable.
User friendly and easy connection.
CE/RoHS, 2 years warranty.
Technical Parameters:
| Parameter | Description |
|---|---|
| Working temperature | -20-60℃ |
| Supply voltage | DC12~24V |
| Output | 3 channels |
| Connecting mode | common anode |
| External dimension | L121*W75*H25 mm |
| Packing size | L137*W80*H54 mm |
| Net weight | 250g |
| Gross weight | 285g |
| Static power consumption | <1W |
| Output current | <4A(each channel) |
| Output power | 12V:<144W, 24V:<288W |
Typical Applications

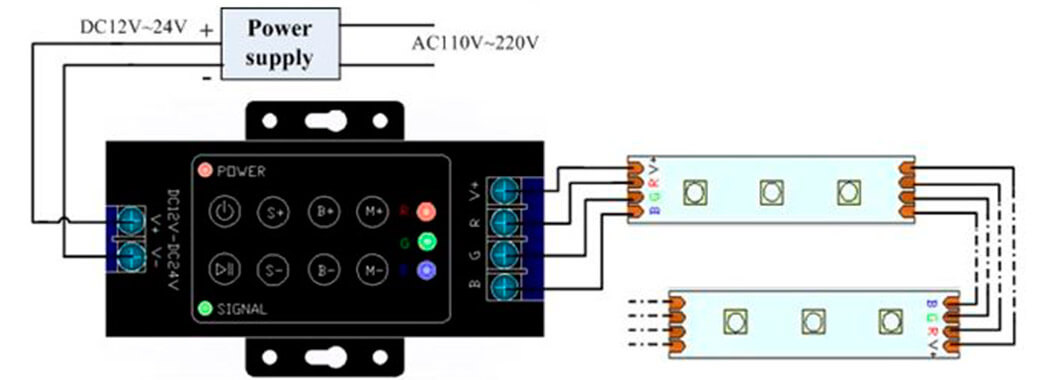

Application Circuit:
