28-LED Controller

Model RF RGB mini led controller DS-RFMINI-03

(P/N: DS-RFMINI-03)

Feature:

This RF Mini RGB controller (DS-RFMINI-03) adopted the advanced computer control chip. Controlled by 433Mhz wireless remote;

It mainly used to controlled all kinds of constant voltage led lights, such as: LED source, LED strips, led wall washer, wall Glass curtain lights, etc;

It integrated with low cost, easy connection, simple manipulation and others advantages;

User can choose the mode of fade, strobe, Blasting flash, flicker, and other Static color model;

What’s more, this controller have the characteristics of small volume, easy to carry, etc, its popular amount the many markets.

Technical Parameters:

Parameter	Description
Working temperature	-20-60℃
Supply voltage	DC5V-24V
Output	3 circuit
Connecting mode	common anode
External dimension	L40.0×W12.0×H5mm
Packing size	L85.9×W39.6×H6.9mm
Net weight	35g
Gross weight	40g
Static power consumption	＜0.5W
Output current	＜2A*3CH(each circuit )
Output power	5V:＜30W, 12V:＜72W

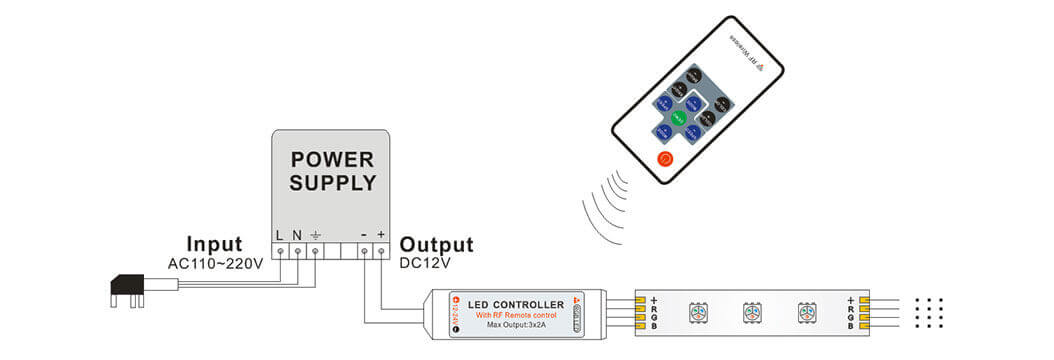

Direction for use:

This controller's sequence is +RGB order, in case of other sequence(+BRG/+GRB) will appear in the other effect. Based on sequence of + RGB, pattern are as follows:

Dynamic model	NO.	Mode	NO.	Mode	NO.	Mode
	1	7 color fade	8	Purple fade in and fade out	15	Blue blasting flash
	2	3 color fade in and fade out	9	Blue fade in and fade out	16	Purple blasting flash
	3	7 color fade in and fade out	10	3 Color Jump	17	Yellow blasting flash
	4	White fade in and fade out	11	6 color Jump	18	White blasting flash
	5	Green fade in and fade out	12	3 color flash	19	3 color blasting flash
	6	Yellow fade in and fade out	13	Red blasting flash
	7	Red fade in and fade out	14	Green blasting flash
Static mode	NO.	Mode	NO.	Mode	NO.	Mode
	1	Red	8	Milk-white	15	Blue-purple
	2	Green	9	Dark yellow	16	Yellow-white
	3	Blue	10	Sky blue	17	yellow
	4	White	11	Brown	18	cyan
	5	Orange	12	Pink-white	19	purple
	6	Light green	13	Light-yellow	20	Blue-white
	7	Dark blue	14	Light blue
